Troy-Bilt 17AE2ACG211 Mustang COLT RZT 42 (2008) 17-Z Series

Model: 17AE2ACG211 MUSTANG COLT RZT 42 (2008)

Back To Assemblies

Save Part Not Listed?
product name

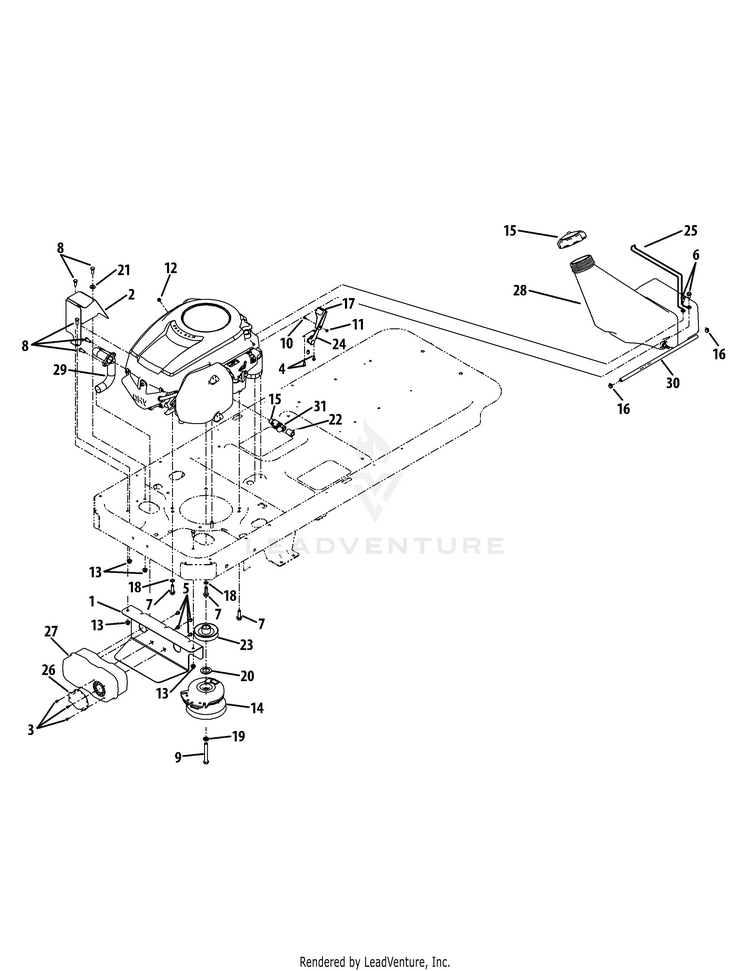

Engine Connections

...
...
1
Muffler Mounting Bracket MTD-703-05441A
...
2
HEAT SHIELD MTD-703-05870
...
3
Hex Washer Head Screw, #8-18 x .5 MTD-710-0227
...
4
Hex Screw. 12-16 x .50 MTD-710-04261
...
5
Hex Washer Head Screw, 1/4-20 x .5 MTD-710-0599
...
6
Hex Screw, 5/16-12 x .750 MTD-710-0726
...
7
Hex Screw, 3/8-16 x 1.250 MTD-710-1315
...
8
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
9
Hex Screw, 7/16-20 x 3.25 MTD-710-3157A
...
10
Machine Screw, #8-32 x .375 MTD-710-3217
...
11
Hex Nut, #8-32 MTD-712-0142
...
12
Sem Nut, 1/4-20 MTD-712-0271
...
13
Flangelock Nut, 5/16-18 MTD-717-04063
...
14
Electric PTO Clutch MTD-917-04376A
...
15
Fuel Cap MTD-951-3124E
...
16
Hose Clamp, .490 MTD-726-0205
...
17
Throttle Control Knob MTD-731-04914
...
18
External Tooth Lock Washer, 3/8 MTD-736-0148
...
19
Lock Washer, 7/16 MTD-736-0171
...
20
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
21
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
22
Oil Drain, Extension Hose MTD-751-3141-14
...
23
Engine Pulley replaces 756-0978B in this application MTD-756-04376
...
24
Cable, Throttle, 39.0 Lg MTD-946-04161
...
25
FUEL TANK MOUNTING WIRE MTD-747-04228A
...
26
Muffler Deflector MTD-751-0564B
...
27
Single Inlet Muffler MTD-951-0617C
...
28
Fuel Tank MTD-751-10057D
...
29
Exhaust Pipe MTD-751-10251
...
30
Low Permeation Fuel Hose MTD-751-10349
...
31
Oil Drain MTD-951-10517A
