Troy-Bilt 17AE2ACG211 Mustang COLT RZT 42 (2008) 17-Z Series

Model: 17AE2ACG211 MUSTANG COLT RZT 42 (2008)

Back To Assemblies

Save Part Not Listed?
product name

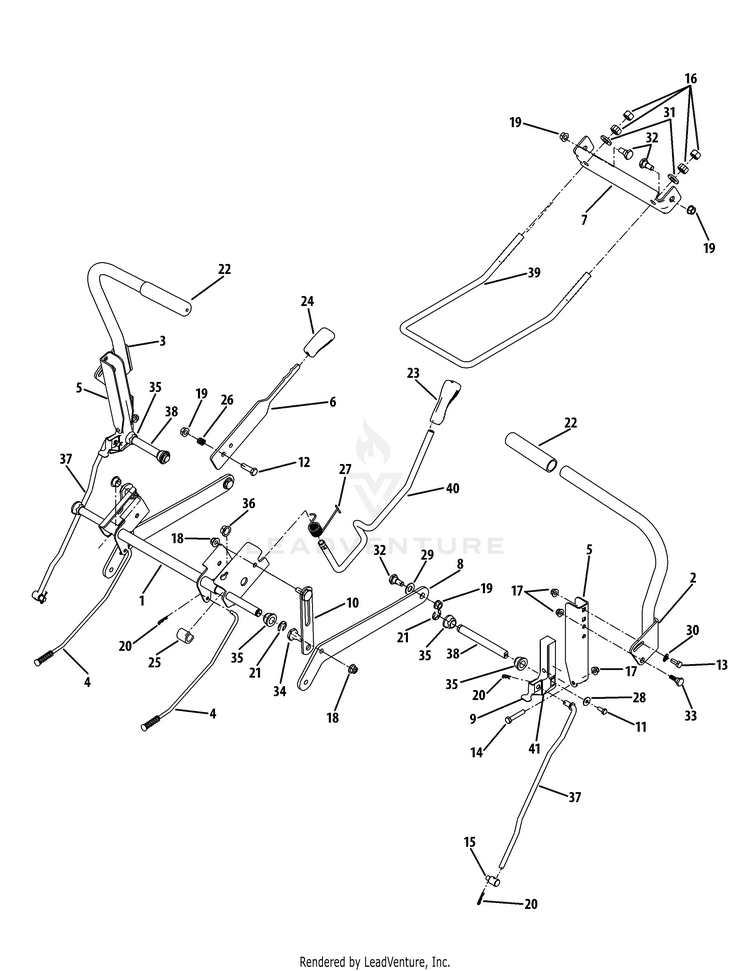

Deck Lift & Controls

...
...
1
Deck Lift Shift Assembly MTD-603-04160C-0637
...
2
LAPBAR HANDLE (RH) MTD-603-04387
...
3
LAPBAR HANDLE (LH) MTD-603-04388
...
4
Brake Rod Assembly MTD-947-04065
...
5
Lapbar Pivot Bracket MTD-703-05387B
...
6
Brake/Shabs Assembly MTD-703-05396A-0637
...
7
Front Deck Hanger Bracket MTD-703-05414A
...
8
Deck Lift Arm MTD-703-05793A
...
9
Switch Actuator Bracket MTD-703-06096A
...
10
Lift Link Plate MTD-703-06169-0637
...
11
Hex Screw, 1/4-20 x .625 MTD-710-0433
...
12
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
Hex Screw, 5/16-18 x 1.75 MTD-710-3180
...
15
Ferrule, 3/8-24 x .375 MTD-911-0832
...
16
HEX NUT MTD-712-0206
...
17
Flangelock Nut, 5/16-18 MTD-712-04063
...
18
Flangelock Nut, 3/8-16 MTD-712-04065
...
19
Hex Flange Nut 3/8-16 MTD-912-0431
...
20
Cotter Pin, .072 x 1.13 MTD-714-0104
...
21
E-Ring MTD-716-0106
...
22
Grip, 1.0 x 5.0 MTD-720-0274
...
23
Handle Grip, 1/2 MTD-720-0311
...
24
BRAKE HANDLE GRIP MTD-731-04735
...
25
SPACER .621 MTD-731-05732
...
26
Compression Spring MTD-732-0334
...
27
Spring, Torsion RZT (Replaces 732-0874 in this application) MTD-732-04869A
...
28
SPRING WASHER BELL MTD-736-0270
...
29
FLAT WASHER .510 x .995 MTD-736-0272
...
30
FLAT WASHER MTD-736-0275
...
31
Flat Washer, .531 x 1.062 x .134 MTD-736-3019
...
32
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
33
Shoulder Screw, .437 x .268 x 5/16-18 MTD-738-0296
...
34
Shoulder Screw, .500 x .434 MTD-738-0507B
...
35
FLANGE BEARING MTD-941-0225
...
36
Flange Bearing, .626 x .938 x .344 MTD-741-3074
...
37
Lapbar Control Rod MTD-747-04225A
...
38
Shaft Control MTD-747-04226A
...
39
Deck Lift Rod MTD-747-04401A
...
40
Deck Lift Handle Rod MTD-747-04637
...
41
Control Hub MTD-748-04169A
