Troy-Bilt 17AE2ACG211 Mustang COLT RZT 42 (2008) 17-Z Series

Model: 17AE2ACG211 MUSTANG COLT RZT 42 (2008)

Back To Assemblies

Save Part Not Listed?
product name

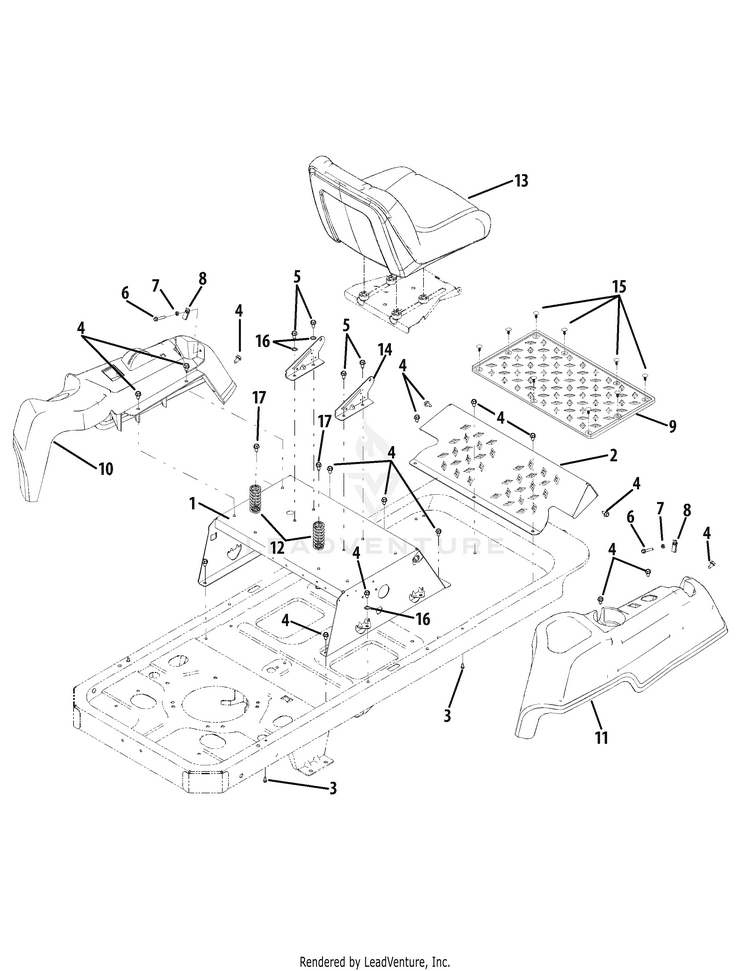

Operator's Platform

...
...
1
SEAT RZT FRAME ASSEMBLY MTD-603-04447A
...
2
FOOT REST BRACKET MTD-703-05373B
...
3
Hex Screw, #12-16 x .50 MTD-710-04261
...
4
Hex Screw, 5/16-18 x .625 MTD-710-0604A
...
5
Hex Screw, 5/16-12 x .75 MTD-710-0726
...
6
Hex Screw, 1/4-20 x 1.5 MTD-710-0778
...
7
Jam Nut, 1/4-20 MTD-912-0298
...
8
U-Type Speed Nut, 1/4-20 MTD-712-04092
...
9
Foot Pad MTD-735-04082C
...
10
CONSOLE (LH) MTD-731-04662E
...
11
CONSOLE (RH) MTD-731-04663D
...
12
Compression Spring, 1.28 x 3.125 MTD-732-04035
...
13
HIGH BACK SEAT MTD-957-04010
...
14
Seat Mount Bracket MTD-783-1489C
...
15
Ratchet Clip MTD-726-3046
...
16
External Tooth Washer, 3/8 MTD-736-0148
...
17
Hex Screw, 5/16-18 x .75 MTD-710-1260A
