Troy-Bilt 17AE2ACG211 Mustang COLT RZT 42 (2008) 17-Z Series

Model: 17AE2ACG211 MUSTANG COLT RZT 42 (2008)

Back To Assemblies

Save Part Not Listed?
product name

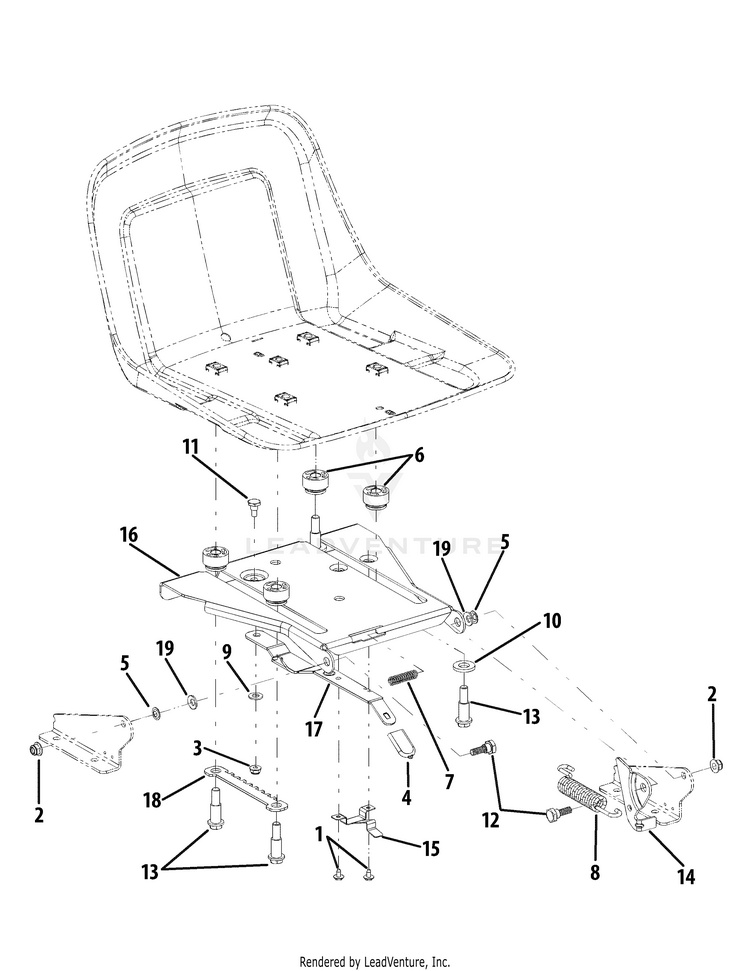

Seat Adjustment

...
...
1
Hex Screw, #10-16 x .375 MTD-710-1268
...
2
Hex Insert Flange Lock Nut, 5/16-18 MTD-712-04063
...
3
Hex Insert Flange Lock Nut, 1/4-20 MTD-712-04064
...
4
Seat Adjustment Grip MTD-720-0309A
...
5
Speed Nut, .3125 MTD-726-0201
...
6
Seat Adjustment Spacer MTD-731-04074
...
7
Compression Spring, .41 x 1.5 MTD-732-0499
...
8
Extension Spring, .84 Dia. x 4.6 MTD-732-1184
...
9
Flat Washer, .344 x .62 x .033 MTD-736-0204
...
10
Flat Washer, .531 x 1.062 x .134 MTD-736-3019
...
11
Shoulder Screw, .34 x .285 x 1/4-20 MTD-738-0137A
...
12
Shoulder Screw, .437 x .268 x 5/16-18 MTD-738-0296
...
13
Shoulder Screw, .5 x .925 x 3/8 -16 MTD-738-0966A
...
14
Seat Lift Bracket MTD-783-0209D
...
15
Seat Adjustment Stop MTD-783-0611
...
16
SEAT PIVOT BRACKET MTD-783-0738D
...
17
SEAT ADJUSTMENT LEVER MTD-783-0739A-0637
...
18
Seat Adjustment Index Bracket MTD-783-0753
...
19
Belleville Washer, .34 x .872 x .06 MTD-736-0242
Schematic Image Zoomed
