Troy-Bilt 17AAFACS023 Mustang Z42 (2019) Zero-Turn Riding Mower

Model: 1174058

Back To Assemblies

Save Part Not Listed?
product name

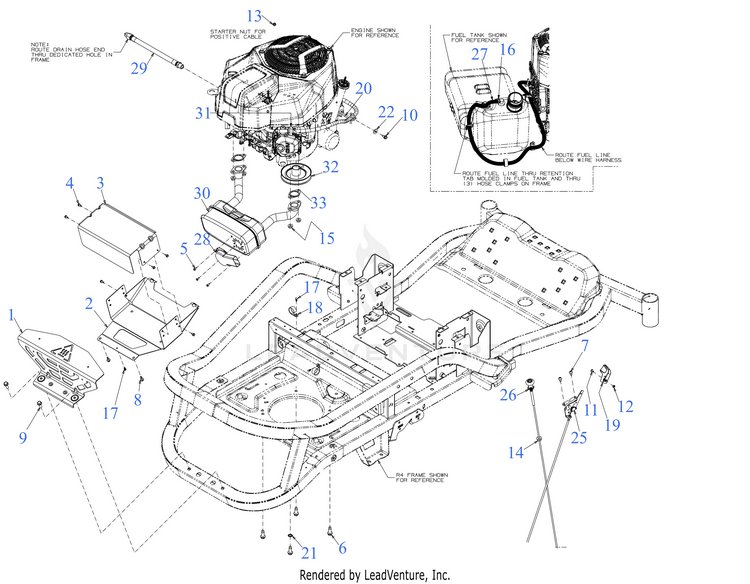

Engine Accessories

...
...
1
MUFFLER COVER (REAR) MTD-603P06299A
...
1
NUT RIVET 5/16-18 LOCK (Not Shown) MTD-728-05088
...
2
MUFFLER SHIELD (LOWER) MTD-703-16041A
...
3
MUFFLER SHIELD (TOP) MTD-703-16042A
...
4
HEX SCREW AB-TAP #10 x .50 MTD-910-0224
...
5
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
6
SCREW 3/8-16 x 1 MTD-710-04683C
...
7
SCREW 1/4-20 x .5 MTD-710-05070A
...
8
SCREW M6-1 x .625 MTD-710-06133
...
9
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
10
SCREW 1/4-20X.625 MTD-710-1652
...
11
SCREW #8-32X.38 LG MTD-710-3217
...
12
HEX NUT 8-32 MTD-712-0142
...
13
HEX NUT MTD-712-0691
...
14
Flange Lock Nut 3/8-16 MTD-712-3005
...
15
HEX FLANGE NUT M8X MTD-712-3086
...
16
HOSE CLAMP 1/20 MTD-726-0205
...
17
RATCHET CLIP (.188 x .85) MTD-726-04099A
...
18
DRAIN HOSE CLAMP MTD-726-04119
...
19
THROTTLE CONTROL KNOB MTD-731-09637
...
20
CABLE GUIDE MTD-932-05576
...
21
LOCK WASHER 3/8 MTD-736-0148
...
22
FLAT WASHER .28 ID x .74 OD x .063 MTD-736-0173
...
25
THROTTLE CABLE 55.0 LG MTD-746P05972
...
26
CHOKE CABLE 54.0 LG MTD-746P05992
...
27
FUEL HOSE 1/4-57" MTD-751-22813-57
...
28
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
29
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) MTD-751-15324B
...
30
MUFFLER 679cc MTD-751P15807C
...
31
FUEL FILTER MTD-951-3013
...
31
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M002
...
32
TRANSMISSION DRIVE PULLEY MTD-756-04494C
...
33
EXHAUST GASKET MTD-921-04936
...
xx
OIL:SAE 10W30 MTD-NSOIL
...
xx
GENUINE FACTORY PARTS® 32 oz 10W30 oil Retail Package Part MTD-490-000-F044
