Troy-Bilt 17AA5AAG766 RZT 42 (2006) 17-Z Series

Model: 17AA5AAG766 RZT 42 (2006)

Back To Assemblies

Save Part Not Listed?
product name

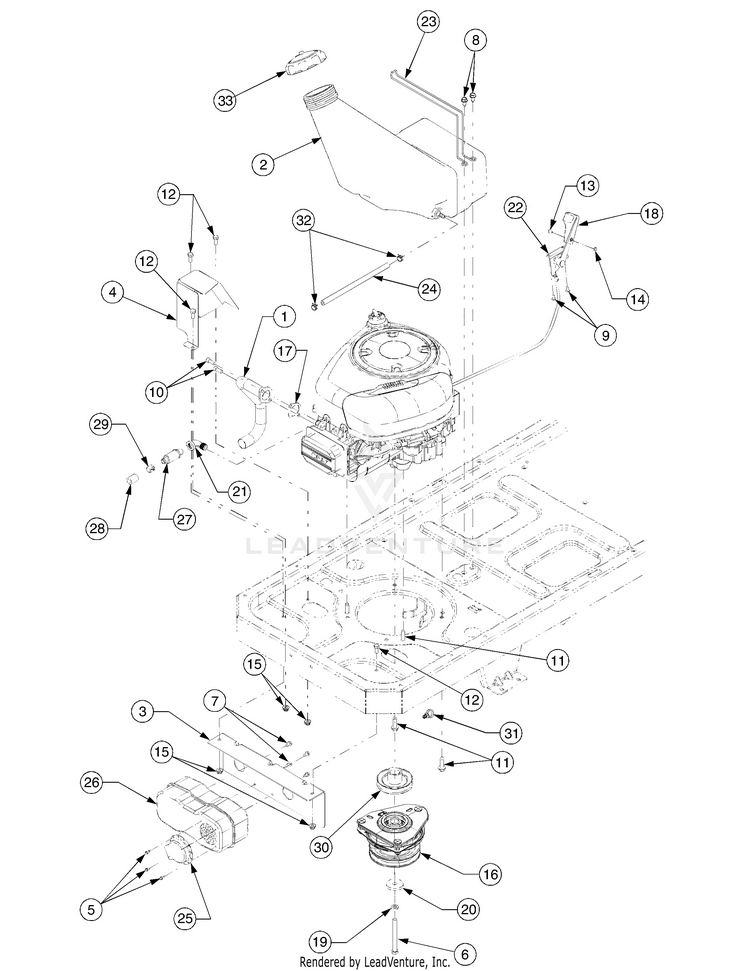

Engine Accessories and PTO RZT 42

...
...
1
EXHAUST TUBE MTD-603-04176A
...
2
Fuel Tank MTD-751-10057D
...
3
Bracket, Muffler Mounting MTD-703-05441A
...
4
HEAT SHIELD MTD-703-05870
...
5
Screw, Hex Wash. Hd. Tapp #8-18 x .5 MTD-710-0227
...
6
Screw, Hex Cap, 7/16-20 x 4.0 GR5 MTD-710-04248
...
7
Screw, Hex Wash. Hd. Tapp 1/4-20 x .5 MTD-710-0599
...
8
Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 MTD-710-0726
...
9
Screw, Hex Wash. Hd. Tapp #12-16 x .5 MTD-710-04261
...
10
Screw, Socket Hd. 5/16-18 x .75 MTD-710-1314A
...
11
Screw, Hex Wash. Hd. Tapp 3/8-16 x 1.25 MTD-710-1315
...
12
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
13
Screw, Truss Hd. Mach. #8-32 x .375 MTD-710-3217
...
14
Nut, Hex, #8-32 MTD-712-0142
...
15
Nut, Hx Insert Flange Lck, 5/16-18 GrF MTD-712-04063
...
16
Electric PTO Clutch NOTE:917-04622<BR/> Clutch will work as a replacement for the 717-04183, A shorter 7/16-20 x<BR/> 3.75" retaining bolt (710-1049) is required when mounting the 917-04622 MTD-917-04622
...
16
SCREW 7/16-20 x 3.75 GR5 Required for 917-04622 Clutch<BR/> Replacement MTD-710-1049
...
17
Exhaust Gasket MTD-BS-692236
...
18
Knob, Throttle Control MTD-731-04914
...
19
Washer, Lock, 7/16 MTD-736-0171
...
20
Washer, Flat, .438 x 1.75 x .25 MTD-736-04131
...
21
90 DEGREE ELBOW MTD-737-0125
...
22
Cable, Throttle, 39.0 Lg MTD-946-04161
...
23
FUEL TANK MOUNTING WIRE MTD-747-04228A
...
24
Hose, Fuel Line 6.5 in MTD-751-10349
...
25
Deflector, Muffler MTD-751-0564B
...
26
Single Inlet Muffler MTD-951-0617C
...
27
Oil Drain MTD-951-10517A
...
28
Oil Drain, Extension Hose MTD-751-3141-14
...
29
Cap, Oil Drain Valve MTD-751-3142
...
30
Pulley, Engine, 3.56 Diameter MTD-756-0978B
...
31
Clip, Cable Retainer MTD-726-3055
...
32
Clamp, Hose MTD-726-0205
...
33
Fuel Cap MTD-951-3124E
