Troy-Bilt 17AA5AAG766 RZT 42 (2006) 17-Z Series

Model: 17AA5AAG766 RZT 42 (2006)

Back To Assemblies

Save Part Not Listed?
product name

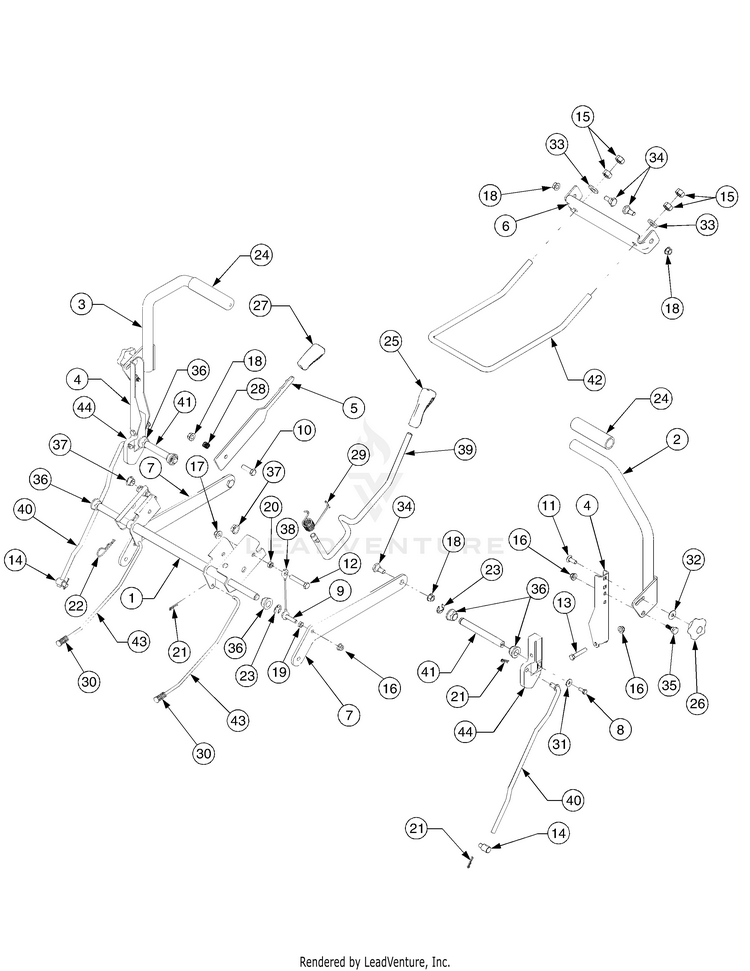

Deck Lift & Controls

...
...
1
Deck Lift Shift Assembly MTD-603-04160C-0637
...
2
LAPBAR HANDLE (RH) MTD-603-04322
...
3
LAPBAR HANDLE (LH) MTD-603-04324
...
4
Lapbar Pivot Bracket MTD-703-05387B
...
5
Brake/Shabs Assembly MTD-703-05396A-0637
...
6
Bracket, Front Deck Hanger MTD-703-05414A
...
7
Arm, Deck Lift MTD-703-05793A
...
8
Screw, Hex Lock, 1/4-20 x .62 GR5 MTD-710-0433
...
9
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
10
Screw, Hex Cap, 3/8-16 x 1.25 GR5 MTD-710-3005
...
11
Bolt, Carriage, 5/16-18 x .875 MTD-710-3105
...
12
Screw, Hex Cap, 3/8-16 x 2.0 GR5 MTD-710-3144
...
13
Screw, Hex Cap, 5/16-18 x 1.75 GR5 MTD-710-3180
...
14
Ferrule, 3/8-24 x .375 MTD-911-0832
...
15
Nut, Hex Jam, 1/2-13 GR5 MTD-712-3048
...
16
Nut, Hx Flange Insert Lck, 5/16-18 GrF MTD-712-04063
...
17
Nut, Hx Flange Insert Lck, 3/8-16GrF MTD-712-04065
...
18
Hex Flange Nut 3/8-16 MTD-912-0431
...
19
Nut, Hex Jam, 5/16-18 GR5 MTD-712-3007
...
20
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
21
Pin, Internal Cotter MTD-714-0104
...
22
Pin, Internal Cotter MTD-714-3020
...
23
E-Ring , .625 Dia. Shaft MTD-716-0106
...
24
Grip, Hand MTD-720-0274
...
25
Grip, Handle MTD-720-0311
...
26
STAR KNOB 5/16-18 MTD-720-04072A
...
27
BRAKE HANDLE GRIP MTD-731-04735
...
28
Spring, Compression MTD-732-0334
...
29
Spring, Torsion RZT (Replaces 732-0874 in this application) MTD-732-04869A
...
30
Spring, Compression (732-04350 NLA, go to Ref No. 43) MTD-NA
...
31
SPRING WASHER BELL MTD-736-0270
...
32
Washer, Bell, .325 x .93 x .045 MTD-736-0425
...
33
Washer, Flat, .531 x 1.062 x .134 HT MTD-736-3019
...
34
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
35
Screw, Shoulder, .437 x .268:5/16-18 MTD-738-0296
...
36
FLANGE BEARING MTD-941-0225
...
37
Bearing, Flange, .626 x .938 x .344 MTD-741-3074
...
38
Cable, Deck Lift, 5.05 Long MTD-746-0970
...
39
DECK LIFT HANDLE MTD-747-04224
...
40
Rod, Lapbar Control MTD-747-04225A
...
41
Shaft Control MTD-747-04226A
...
42
Rod, Deck Front Hanger MTD-747-04401A
...
43
Rod w/spring, Brake (Replaces 747-04491 Brake Rod) MTD-947-04065
...
44
LAPBAR CONTROL HUB MTD-748-04052
