Troy-Bilt 17AA5AAG766 RZT 42 (2006) 17-Z Series

Model: 17AA5AAG766 RZT 42 (2006)

Back To Assemblies

Save Part Not Listed?
product name

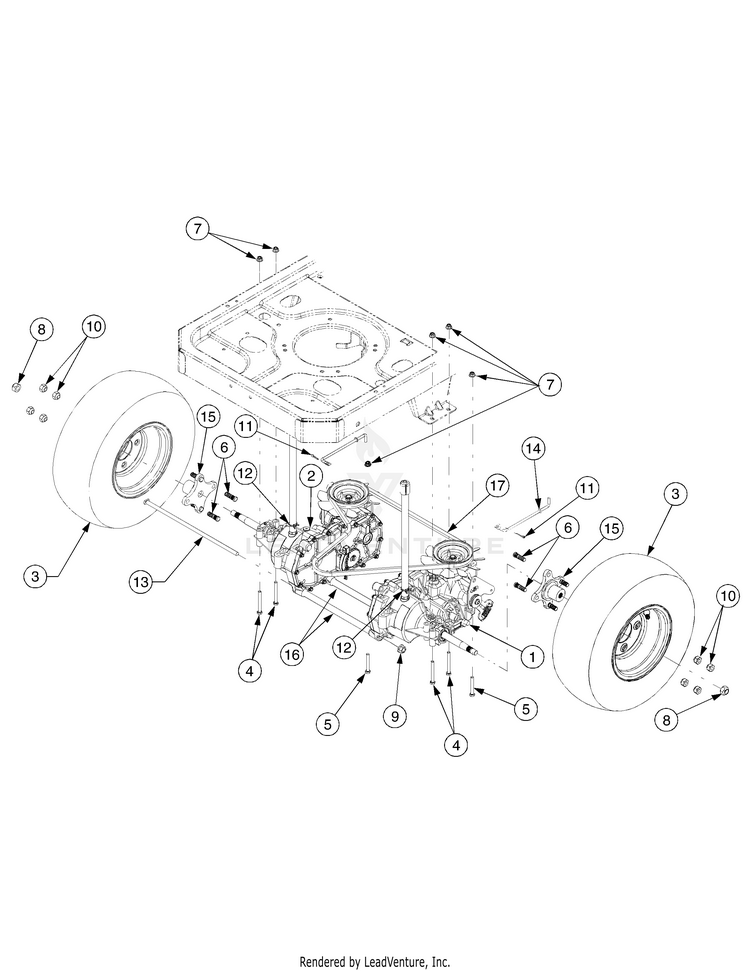

Drive RZT42

...
...
1
KIT-TRANS:EZT 42" (RH) replaces 618-04326 NLA MTD-759-04143
...
xx
Neutral Return Spring Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission MTD-732-04448
...
xx
TRANSMISSION (RH) Double D axle MTD-918-04432B
...
2
KIT-TRANS:EZT 42" (LH) replaces 618-04327 NLA MTD-759-04142
...
xx
Neutral Return Spring Included in service kit, not shown, must have the same color neutral return spring on RH & LH transmission MTD-732-04448
...
xx
TRANSMISSION (LH) Double D axle MTD-918-04431B
...
3
Wheel Assembly, 18 x 6.5 x 8, RZT42 MTD-634-04127
...
3
Tire, 18 x 6.5 x 8, RZT42 not shown MTD-734-0294
...
3
TUBELESS VALVE not shown MTD-934-0255
...
4
Screw, Hex Cap, 5/16-18 x 2.75 GR5 MTD-710-0176
...
5
Screw, Hex Cap, 5/16-18 x 2.25 GR5 MTD-710-0395
...
6
Stud, Rib Neck, 7/16-14 x 1.6 MTD-710-0852
...
7
Nut, Hx Insert Flange Lck, 5/16-18 MTD-712-04063
...
8
Nut, Hex Lock, 9/16-18 GRC MTD-712-04088
...
9
Nut, Hex Flange Lock, 7/16-20 GrB MTD-712-0459
...
10
Nut, Lug, 7/16-14 MTD-712-3050
...
11
Pin, Cotter, 3/32 x .75 MTD-714-0507
...
12
HOSE CLAMP .75 MTD-726-04059
...
13
Rod, .405 x 14.0 MTD-738-04192B
...
14
Bypass Rod MTD-747-04217C-0637
...
15
REAR WHEEL HUB (POWDER BLACK) MTD-748-04054-0637
...
15
WHEEL HUB ASSEMBLY Included in service kit, not shown MTD-918-04494
...
16
SUPPORT TUBE MTD-750-04561A
...
17
TRANSMISSION DRIVE BELT A x 57.3 MTD-954-04043B
...
xx
SCREW:3/8"-16 x .750:GR5:LOCK Included in service kit, not shown MTD-710-3119
...
xx
HOSE CLAMP .75 Included in service kit, not shown MTD-726-04059
...
xx
WASHER:FLAT: .390 x 1.50 x .134 Included in service kit, not shown MTD-736-0227
...
xx
HOSE:BREATHER Included in service kit, not shown MTD-751-10474
...
xx
Cub Cadet DRIVE SYSTEM FLUID PLUS 15W40 not shown MTD-490-000-C051
