Troy-Bilt 17AA5AAG766 RZT 42 (2006) 17-Z Series

Model: 17AA5AAG766 RZT 42 (2006)

Back To Assemblies

Save Part Not Listed?
product name

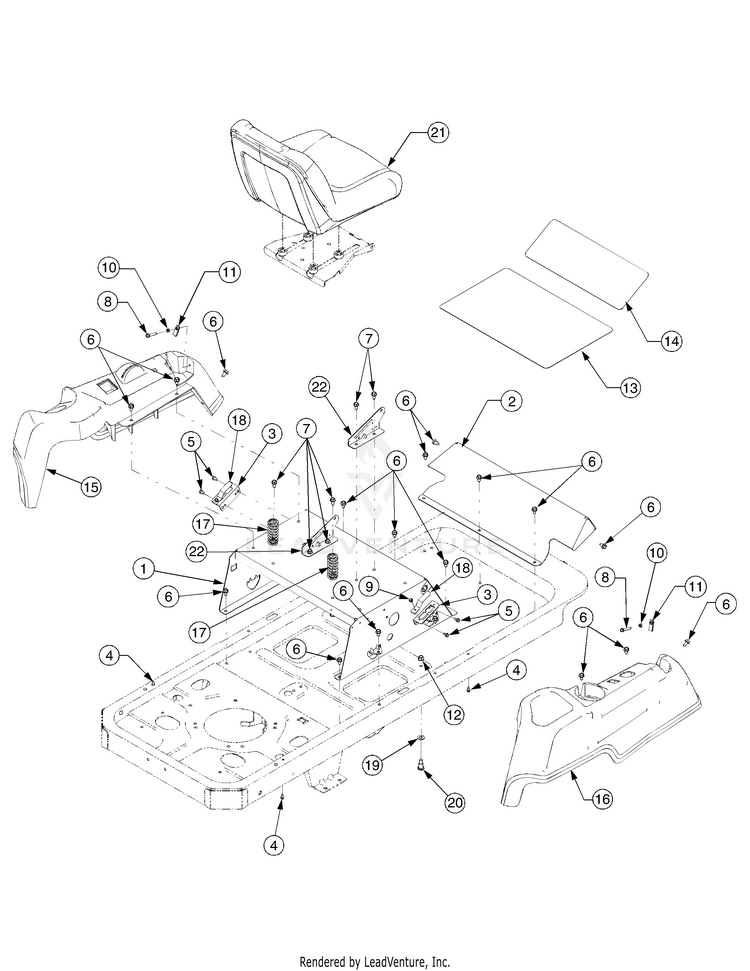

Operator's Platform

...
...
1
SEAT BOX FRAME MTD-603-04326B
...
1
Graphic, Park Brake MTD-777I22600
...
1
LABEL-RDR SAFETY MTD-977S32354
...
1
Graphic, Deck Height MTD-777I22307
...
2
FOOT REST BRACKET MTD-703-05373B
...
2
LABEL-FRONT FRAME TROY-BILT RZT MTD-777D09987
...
3
SWITCH MOUNTING BRACKET MTD-703-05467
...
4
Screw, Hex Wash. Hd Tapp #12-16 x .50 MTD-710-04261
...
5
Screw, Hex Wash. Hd. Tapp. 1/4-20 x .5 MTD-710-0599
...
6
Screw, Hex Wash. Hd. Tapp 5/16-18 x .625 MTD-710-0604A
...
7
Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 MTD-710-0726
...
8
Screw, Hex Wash. Hd. Tapp. 1/4-20 x 1.5 MTD-710-0778
...
9
Screw, Hex Wash. Hd Tapp #10-16 x .375 MTD-710-1268
...
10
Jam Nut, 1/4-20 MTD-912-0298
...
11
Nut, U Type Speed, 1/4-20 MTD-712-04092
...
12
Hex Flange Nut 3/8-16 MTD-912-0431
...
13
FLOOR BOARD PAD MTD-723-04020
...
14
Pad, Abrasive Toe Plate MTD-723-04021
...
15
CONSOLE (LH) MTD-731-04662E
...
15
LABEL (LH) CONTROL MTD-777I22608
...
15
LABEL (LH) POD TROY-BILT RZT MTD-777D09986
...
15
LABEL-THROTTLE MTD-977I22305
...
15
LABEL-THROTTLE MTD-977I22309
...
16
CONSOLE (RH) MTD-731-04663D
...
16
LABEL (RH) CONTROL MTD-777I22609
...
16
LABEL (RH) POD TROY-BILT RZT MTD-777D09985
...
17
Spring, Compression, 1.28 x 3.125 MTD-732-04035
...
18
Spring, Switch Actuator MTD-732-04200
...
19
Washer, Flat, .406 x .875 x .059 MTD-736-0300
...
20
Screw, Shoulder, .50 x .685:3/8-16 ... MTD-738-0430
...
21
HIGH BACK SEAT MTD-957-04010
...
22
Seat Mounting Bracket MTD-783-1489C
