Troy-Bilt 178-L0-11 OHV Engine

Model: 178-L0-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

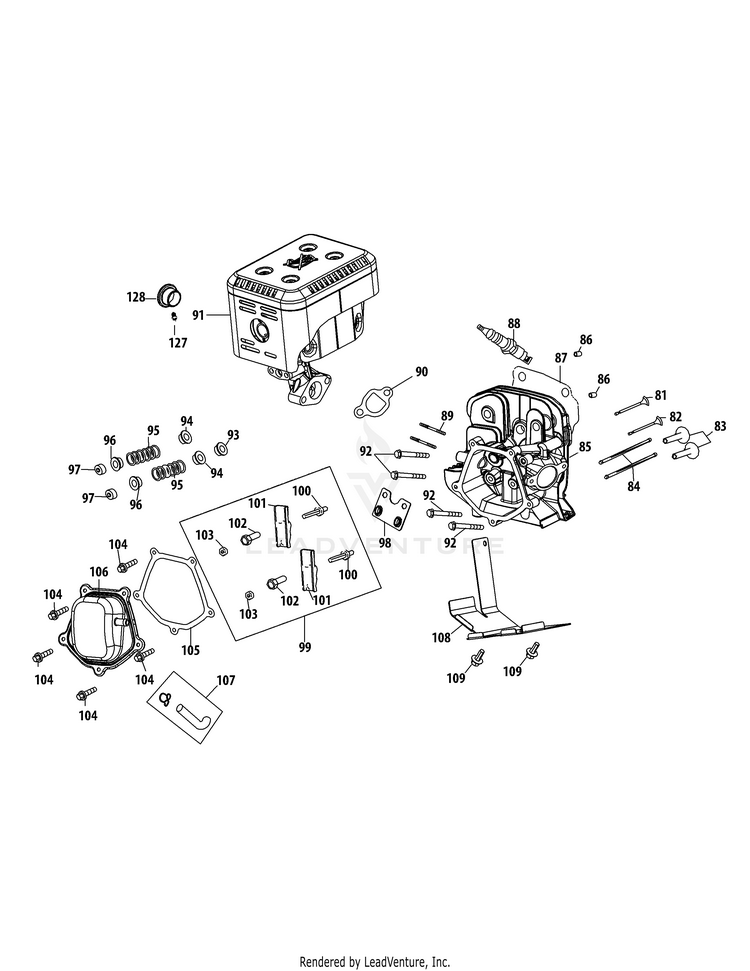

178-L0-11 Cylinder Head

...
...
81
VALVE KIT MTD-951-12379
...
82
VALVE KIT MTD-951-12379
...
83
TAPPET MTD-951-11962A
...
84
Push Rod Kit MTD-951-11199
...
85
Cylinder Head Assembly (Incl.81,82,85,87,89,90,92-98,100-103,105,110-112) MTD-951-11188
...
86
Dowel Pin 12×20 MTD-715-04097
...
87
Gasket, Cylinder Head MTD-951-12076
...
88
Spark Plug/F6Rtc MTD-951-10292A
...
88
GENUINE FACTORY PARTS® Spark Plug 751-10292 Snow, Ride MTD-490-250-F012
...
89
Muffler Stud M8×48.5 MTD-710-04964
...
89
Muffler Stud Assembly MTD-951-11207
...
90
MUFFLER GASKET MTD-951-11212A
...
91
MUFFLER ASSEMBLY MTD-951-12404
...
92
SCREW10-1.25 C 80 GR10.8 MTD-710-04973
...
93
INTAKE VALVE SEAL MTD-951-11964A
...
94
VALVE SPRING RETAINER MTD-951-12077A
...
95
Valve Spring MTD-951-12078
...
96
Retainer, Ex. Valve Spring MTD-951-12080
...
97
Exhaust Valve Adjuster MTD-951-12269
...
98
PUSH ROD GUIDE MTD-951-11965B
...
99
ROCKER ARM ASSEMBLY MTD-951-11981A
...
100
Bolt, Pivot MTD-710-04962
...
101
Rocker Arm MTD-951-11966
...
102
Adjusting Nut ,Valve MTD-751-11123
...
103
Nut, Pivot Locking MTD-751-11124
...
104
Valve Cover Bolt MTD-710-05054
...
105
Valve Cover Gasket MTD-951-11967
...
106
Valve Cover MTD-951-11220
...
107
BREATHER HOSE ASSEMBLY MTD-951-12403
...
108
Air Shield MTD-951-12405
...
109
Bolt M6×12 MTD-710-04915
...
127
BOLT MTD-710-05347
...
128
SPARK ARRESTOR MTD-951-12344
...
xx
Gasket Kit - External Not shown (Incl.66,90,105,111-113,115) MTD-951-12377
...
xx
Cylinder Head Service Kit Not shown (Incl.87,92,93,105) MTD-951-11226
...
xx
GASKET KIT (COMPLETE) Not shown (Incl.38,45,51,66,67,87,90,105,111-113) MTD-951-12380
...
xx
Complete Engine Not shown MTD-952Z178-LU
