Troy-Bilt 1767251 Blade Angling Kit Tractor

Model: 1767251 Blade Angling Kit

Save Part Not Listed?
product name

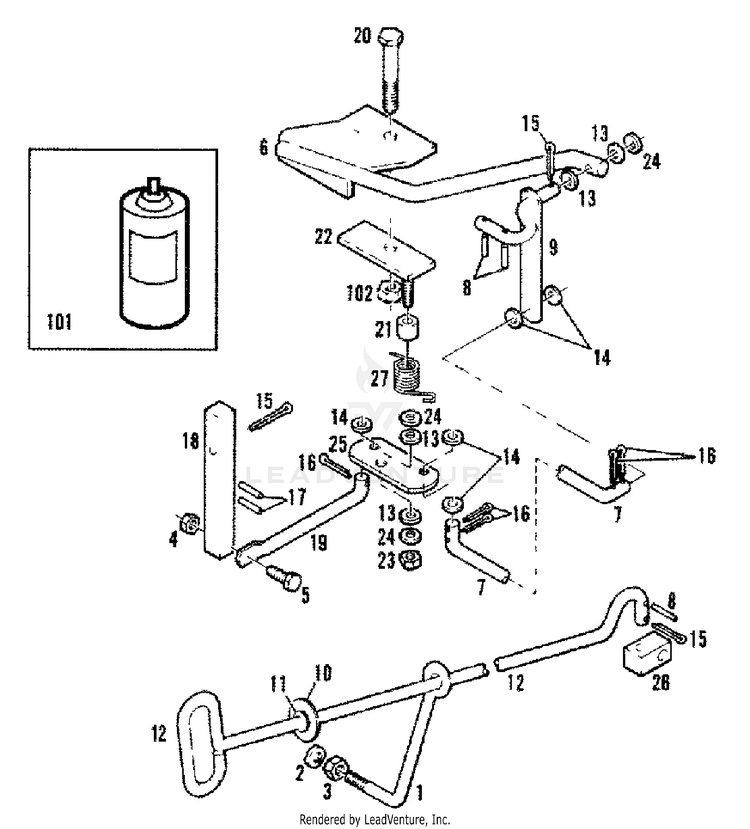

Blade Angling Kit

...
...
1
EYE BOLT MTD-1726087
...
2
L-Wash. 3/8" I.D." MTD-736-0169
...
3
HEX NUT/JA MTD-1186259
...
4
Hex Lock Nut, 1/4-20 MTD-712-0291
...
5
Bolt, 1/4-20 x 1 MTD-1100069
...
6
Mounting Plate MTD-1737350001
...
7
LINK ROD MTD-1737273
...
8
ROLL PIN .125 x .7 MTD-1177625
...
9
Adjustment Lever MTD-1737050
...
10
Instruction Plate MTD-1737358
...
11
GROMMET-RUBBER MTD-1734934
...
12
Rod and Crank Handle MTD-1737061
...
13
Nylon Washer MTD-1737059
...
14
FLAT WASHER MTD-736-0275
...
15
Cotter Pin MTD-714-0474
...
16
PIN COTTER MTD-1100362
...
17
ROLL PIN .125 x 1. MTD-1704692
...
18
Latch Pin MTD-1737057
...
19
LEVER LINK MTD-1737271
...
20
Bolt, 5/8-1 x 3-1/2 MTD-1737867
...
21
Spacer MTD-1725619
...
22
Mounting Pad MTD-1737353
...
23
Hex Lock Nut, 3/8-16 MTD-712-3000
...
24
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
25
Pivot Latch Lever MTD-1737052001
...
26
Swivel Block MTD-1731433
...
27
TORSION SPRING MTD-1754332
...
101
PAINT-POWDER BLACK Not included with kit; order separately. MTD-788-0637A
...
102
HEX NUT Furnished with snowblade. Not included with kit; order separately. MTD-912-0261
