product name

Troy-Bilt 170-L0 OHV Engine

Model: 170-L0 Engine

Save Part Not Listed?
product name

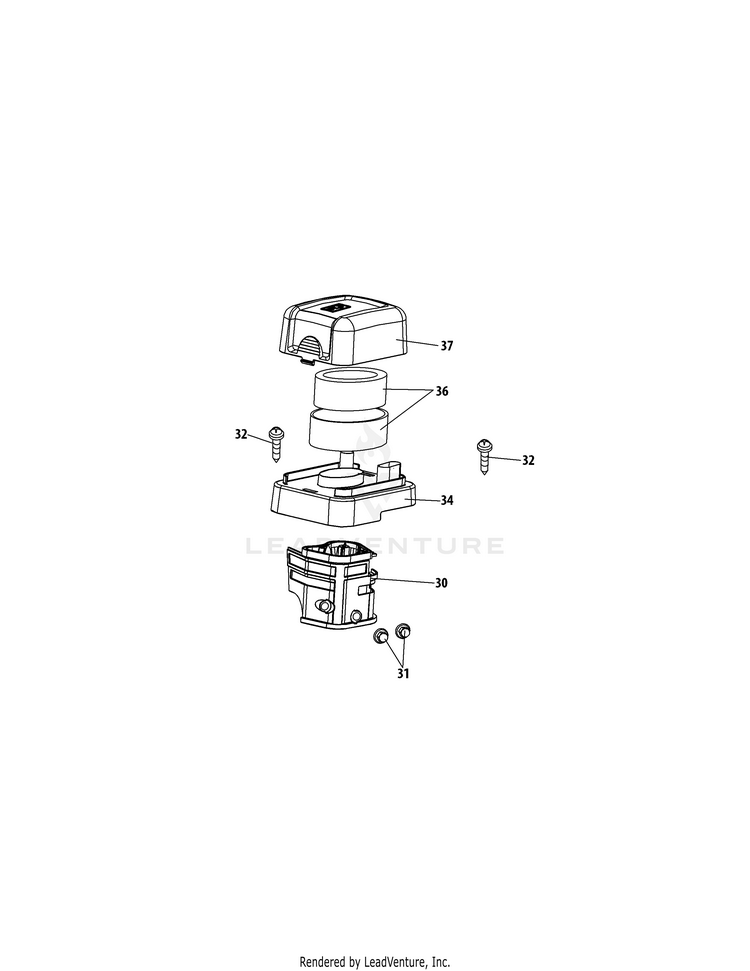

170-L0 Air Filter

...
...
30
Air Filter Heating Pipe Base MTD-951-12157
...
31
Nut MTD-712-04213
...
32
Self-Tapping Bolt M4.2×16 MTD-710-05275
...
34
Air Filter Base MTD-951-12135
...
36
Air Cleaner Filter Assembly MTD-951-10794
...
36
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10794
...
37
Air Cleaner Cover MTD-951-12136

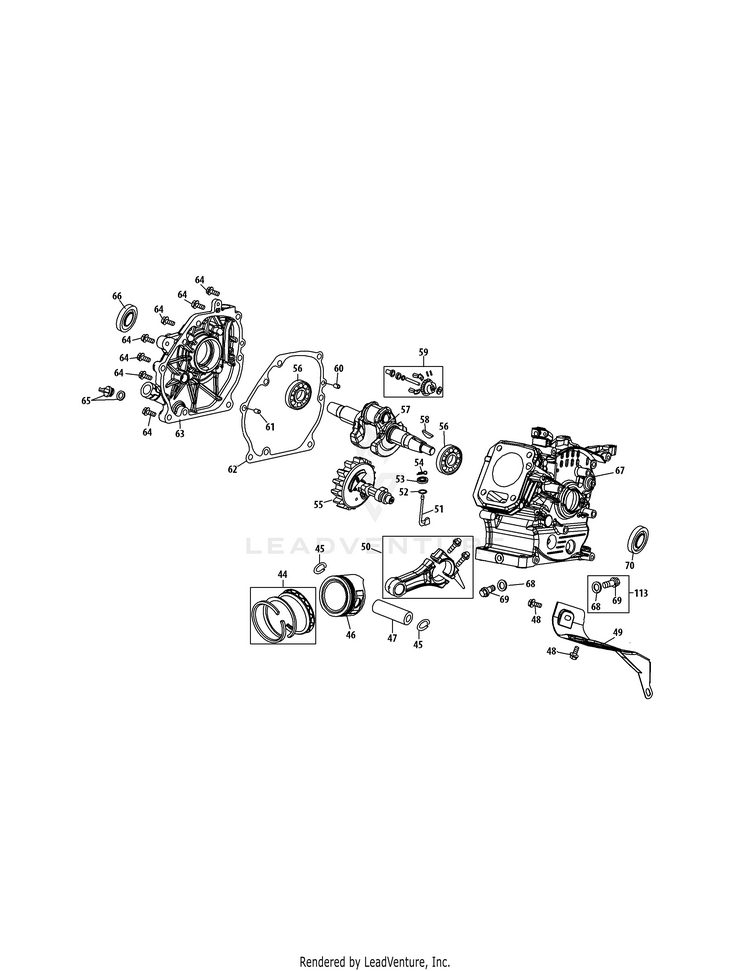

170-L0 Crankcase

...
...
44
PISTON RING SET MTD-751P12111A
...
45
PISTON PIN SNAP RING MTD-951-11632
...
46
Piston MTD-951-12007
...
47
PISTON PIN MTD-951-11633
...
48
Bolt M6×12 MTD-710-04915
...
49
Air Shield MTD-951-11113
...
50
CONNECTING ROD MTD-751P11573A
...
51
Governor Shaft MTD-951-14053
...
52
Washer 5.2×1.9 MTD-736-04461
...
53
OIL SEAL MTD-951-11902A
...
54
Cotter Pin MTD-714-04078
...
55
CAMSHAFT ASSEMBLY MTD-951-11575
...
56
Radial Ball Bearing, 6205 MTD-951-11369
...
57
Crankshaft Assembly MTD-951-12160
...
58
WOODRUFF KEY MTD-751P10307A
...
59
GOVERNOR GEAR MTD-751P11576A
...
60
DOWEL PIN 9 X 14 MTD-715-04096A
...
61
DOWEL PIN MTD-715-04089
...
62
CRANKCASE GASKET MTD-751P11371B
...
63
CRANKCASE COVER MTD-751P17706
...
64
Bolt M8×32 MTD-710-04932
...
65
Oil Fill Plug Assembly MTD-951-11283
...
66
OIL SEAL 25 x 41.25 x 6 MTD-951-11578
...
67
SHORTBLOCK (Incl Ref No. 4,20,25,26,38,40,41,44-47,50-64,66,68 & 69) MTD-951-12155
...
68
FLAT WASHER MTD-736-04440A
...
69
Oil Drain Plug MTD-710-04906
...
70
Oil Seal 25×41.25×6 MTD-951-12126
...
113
Oil Drain Plug & Washer Assembly MTD-951-10370
...
xx
Complete Engine (not shown) MTD-952Z170-DU
...
xx
GASKET KIT (EXTERNAL) (Incl Ref No. 4,20,25,26,27,29 & 68)(not shown) MTD-951-12120
...
xx
CYLINDER HEAD SERVICE KIT (Incl Ref No. 4,15,16 & 38)(not shown) MTD-951-10819
...
xx
Gasket Kit - Complete (Incl Ref No. 4,20,25-27,29,38,52,53,62,66,68 & 70)(not shown) MTD-951-12121A

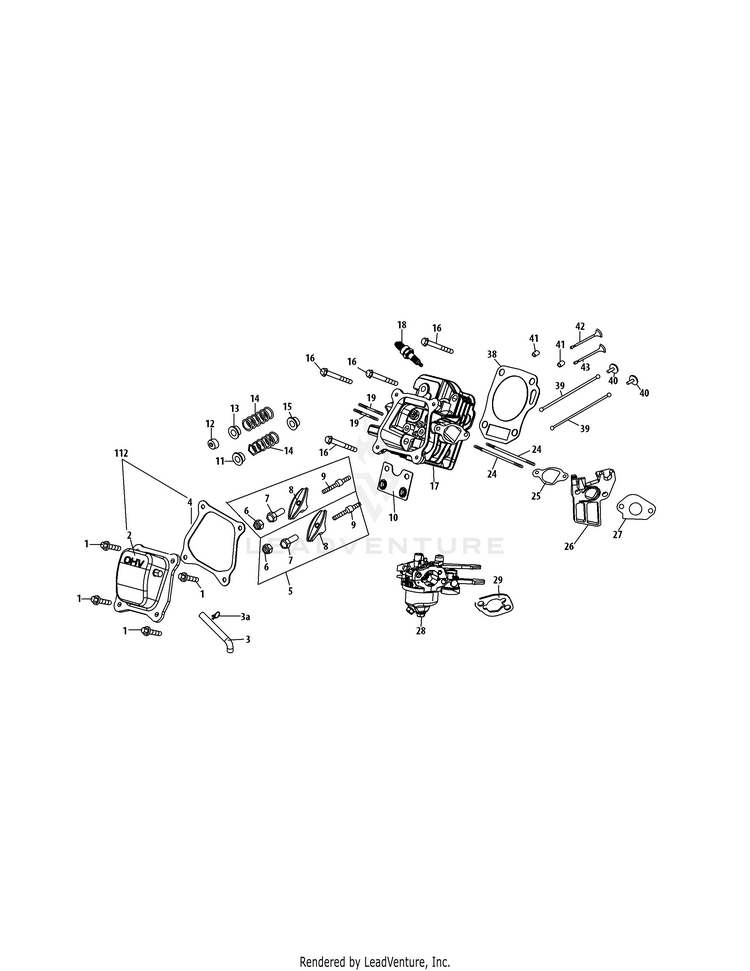

170-L0 Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Hose MTD-731-07059
...
3a
Hose Clamp MTD-726-04101
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
6
Nut, Pivot Locking MTD-751-11124
...
7
Adjusting Nut ,Valve MTD-751-11123
...
8
Rocker Arm MTD-951-11893
...
9
Bolt, Pivot MTD-710-04902
...
10
Push Rod Guide MTD-951-11895
...
11
Retainer, In.Valve Spring MTD-951-12000
...
12
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
13
Retainer, Ex.Valve Spring MTD-951-12003
...
14
VALVE SPRING MTD-751P12004A
...
15
Intake Valve Seal MTD-951-11894
...
16
Bolt M8×55 MTD-710-04933
...
17
Cylinder Head Kit (Incl Ref No. 4,6-15,17,20,25,26,38,42 & 43) MTD-951-10722B
...
18
Spark Plug MTD-951-10292A
...
19
Stud, M8×34, Exhaust MTD-710-04911
...
19
Muffler Stud Assembly MTD-951-10657
...
24
Stud M6×110 MTD-710-05101
...
25
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
26
INSULATOR MTD-751P11568A
...
27
CARBURETOR GASKET MTD-751P12005B
...
28
Carburetor Assembly Complete Carburetor MTD-951-12552
...
29
CARBURETOR GASKET PLATE MTD-951-11571
...
38
CYLINDER HEAD GASKET MTD-951-11572
...
39
Push Rod Kit MTD-951-10648
...
40
Tappet MTD-951-11899
...
41
Dowel Pin 10×16 MTD-715-04108
...
42
Valve Kit MTD-951-10647A
...
43
Valve Kit MTD-951-10647A
...
112
Valve Cover Kit MTD-951-12626
...
xx
GASKET KIT (EXTERNAL) (Incl Ref No. 4,20,25,26,27,29 & 68) Not shown MTD-951-12120
...
xx
Gasket Kit - Complete (Incl Ref No. 4,20,25-27,29,38,52, 53,62,66,68 & 70) Not shown MTD-951-12121A
...
xx
Complete Engine Not shown MTD-952Z170-DU

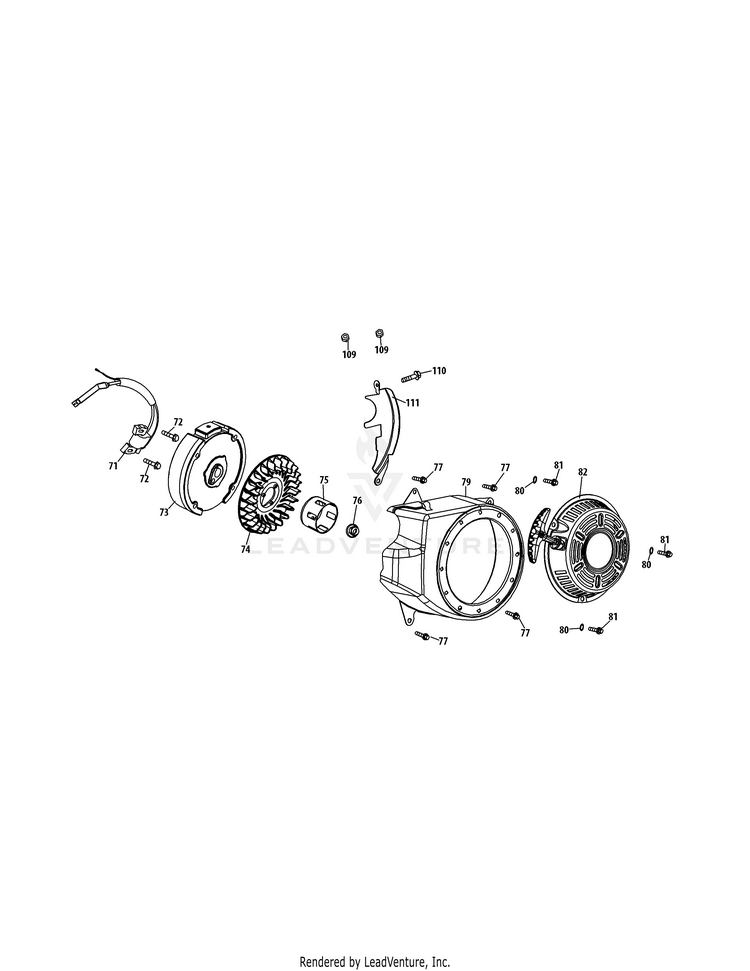

170-L0 Flywheel & Blower Housing

...
...
71
Ignition Coil Assembly MTD-951-10792
...
72
Bolt M6×25 MTD-710-04919
...
73
Flywheel MTD-951-10805
...
74
COOLING FAN MTD-951-10909B
...
75
Pulley, Starter MTD-951-10911
...
76
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
77
Bolt M6×12 MTD-710-04915
...
79
BLOWER HOUSING MTD-951-11583
...
80
FLAT WASHER MTD-736-04455B
...
81
Bolt M6×10 MTD-710-04974
...
82
Recoil Starter MTD-951-12418
...
109
Nut M6 MTD-712-05015
...
110
Bolt M6×20 MTD-710-04918
...
111
Blower Housing Shield MTD-951-11109

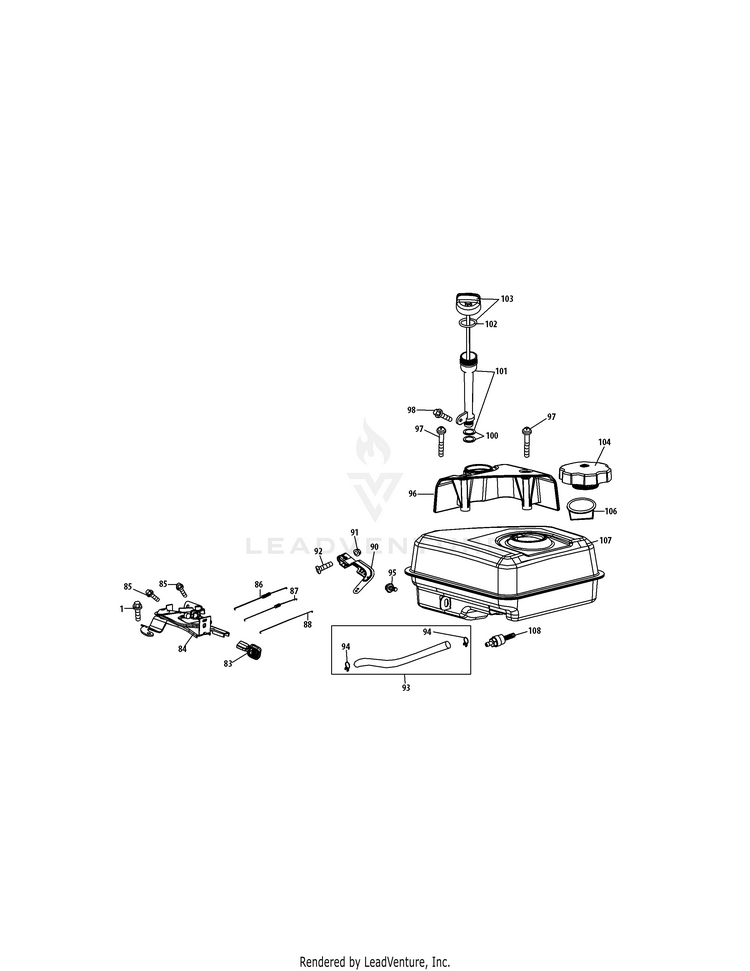

170-L0 Fuel Tank & Mounting

...
...
1
Bolt M6×16 MTD-710-04968
...
83
Throttle Control Knob MTD-951-11067
...
84
Primer Bracket MTD-951-12131
...
85
Bolt M6×12 MTD-710-04915
...
86
Governor Spring MTD-951-11585
...
87
THROTTLE SPRING MTD-751P10664A
...
88
THROTTLE LINKAGE MTD-751P10665A
...
90
Governor Arm MTD-951-11106
...
91
Nut M6 MTD-712-05015
...
92
Governor Arm Bolt MTD-710-04908
...
93
Fuel Line Kit MTD-951-10650
...
94
CARBURETOR HOSE CLAMP MTD-951-11700A
...
95
Bolt M6×12 MTD-710-04915
...
96
ENGINE/DIPSTICK COVER MTD-951-10662
...
97
Bolt MTD-710-04905
...
98
Bolt M6×12 MTD-710-04915
...
100
Oil Fill Tube O-Ring MTD-951-11381
...
101
Oil Fill Tube Assembly MTD-951-11913
...
102
Dipstick O-Ring MTD-951-11904
...
103
Dipstick Assembly MTD-951-11912
...
104
FUEL CAP MTD-951-10917B
...
106
Fuel Level Indicator MTD-951-11933
...
107
Fuel Tank MTD-951-12159
...
108
Fuel Tank Nipple MTD-951-10651

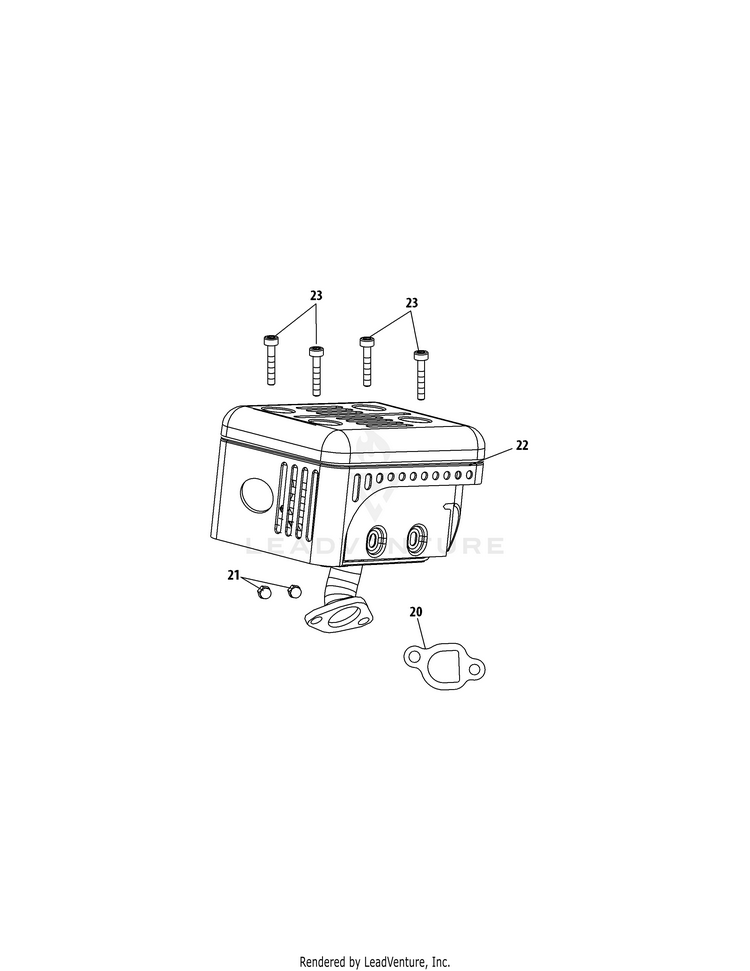

170-L0 Muffler

...
...
20
MUFFLER GASKET MTD-751P11289A
...
21
Nut, M8 MTD-712-04214
...
22
MUFFLER MTD-751P18511
...
23
HEX FLANGE BOLT M5x10 MTD-710-09956
