Troy-Bilt 170-L0-11 OHV Engine

Model: 170-L0-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

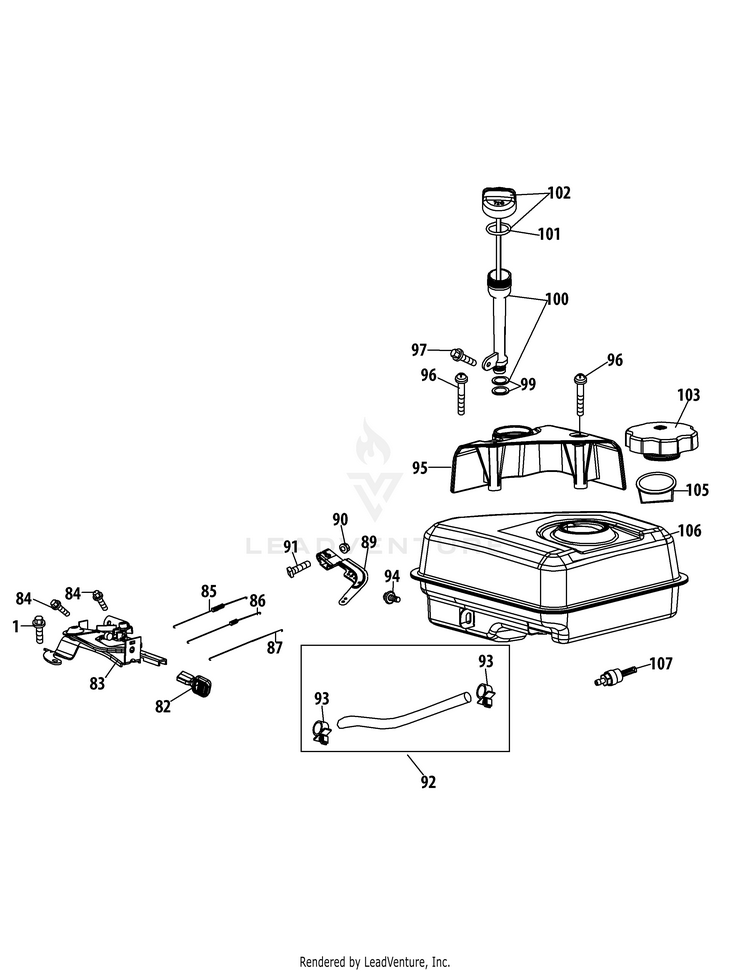

170-L0-11 Fuel Tank & Mounting

...
...
1
Bolt M6×16 MTD-710-04968
...
82
Throttle Control Knob MTD-951-11067
...
83
Primer Bracket MTD-951-12131
...
84
Bolt M6×12 MTD-710-04915
...
85
Governor Spring MTD-951-11585
...
86
THROTTLE SPRING MTD-751P10664A
...
87
THROTTLE LINKAGE MTD-751P10665A
...
89
Governor Arm MTD-951-11106
...
90
Nut M6 MTD-712-05015
...
91
Governor Arm Bolt MTD-710-04908
...
92
Fuel Line Kit MTD-951-10650
...
93
CARBURETOR HOSE CLAMP MTD-951-11700A
...
94
Bolt M6×12 MTD-710-04915
...
95
ENGINE/DIPSTICK COVER MTD-951-10662
...
96
Bolt MTD-710-04905
...
97
Bolt M6×12 MTD-710-04915
...
99
Oil Fill Tube O-Ring MTD-951-11381
...
100
1/ 4 Turn Oil Fill Tube MTD-951-11913
...
101
Dipstick O-Ring MTD-951-11904
...
102
Dipstick Guage MTD-951-12482
...
103
FUEL CAP MTD-951-10917B
...
105
Fuel Level Indicator MTD-951-11933
...
106
Fuel Tank MTD-951-12159
...
107
Fuel Tank Nipple MTD-951-10651
...
xx
Choke Label Not shown MTD-777I23259
...
xx
LABEL-FUEL SHUT OFF Not shown MTD-777I23433
...
xx
Throttle Label Not shown MTD-777I23174
...
xx
LABEL-MTD ENGINE 10W30 Not shown MTD-777S33612
