Troy-Bilt 15A-3000B66 TB 16R (2021) Reel Mower

Model: 15A-3000B66 TB 16R (2021)

Save
Part Not Listed?Part Not Listed?
product name

General Assembly

...

...
2
UPPER HANDLE MTD-749-04811

...
3
MIDDLE HANDLE MTD-749-04812

...
4

...
5
LOWER HANDLE (TB 16R Only) MTD-749-04813

...
5
LOWER HANDLE (TB 18R Only) MTD-749-04814


...
7
REAR SHAFT (TB 16R Only) MTD-711-05530

...
7
REAR SHAFT (TB 18R Only) MTD-711-05532


...

...
10
PIN (TB 16R Only) MTD-711-05534

...
10
PIN (TB 18R Only) MTD-711-05535

...

...
12
REAR BRACKET (LH) MTD-787-01959

...
13
HANDLE ADJUSTMENT (RH) (POWDER BLACK) MTD-787-02085-0637

...
13
HANDLE ADJUSTMENT (LH) (POWDER BLACK) MTD-787-02084-0637

...
14
REAR WHEEL MTD-734-04605

...
15

...
16

...
17


...
19
LOWER BLADE BRACKET (TB 16R Only) MTD-787-01964

...
19
LOWER BLADE BRACKET (TB 18R Only) MTD-787-01966


...
21

...
22
BOLT-M8 x 1.65 MTD-710-05324

...
23


...
25

...
26
COMPLETE WHEEL MTD-734-04606

...
27

...
28

...
29
SUPPORT BRACKET (LH) MTD-787-01972

...
30


...
32
GEAR-41MM MTD-917-04917

...
33

...
34

...
35

...
36
Blade, Roller, TB R16 (TB 16R Only) MTD-942-04362

...
36
Blade, Roller, TB R18 (TB 18R Only) MTD-942-04363

...
37
DEFLECTOR SHIELD (TB 16R Only) MTD-787-01977

...
37
DEFLECTOR SHIELD (TB 18R Only) MTD-787-01979

...
38
SUPPORT BRACKET (RH) MTD-787-01981

...
39
WHEEL AXLE MTD-711-05536



...
42
ADJUST BRACKET (RH) MTD-787-01985

...
42
ADJUSTMENT BRACKET 9T (LH) MTD-787-01994

...
43
REAR BRACKET (RH) MTD-787-01987


...
45
GRASSBAG (TB 18R Only) MTD-764-04132

...
46
STRAP-GRASSBAG REEL MOWER SUMEC (TB 18R Only) MTD-927-04374

...
47
SADDLE WASHER MTD-736-04573

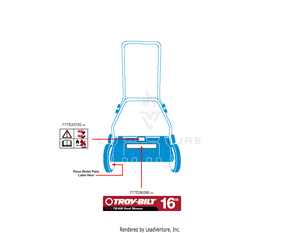

Label Map

...
...
xx
LABEL-REEL MOWER DANGER PICTS MTD-777S33725

...
xx
LABEL-REEL MOWER TB16R MTD-777D36285
...
...
...
