Troy-Bilt 15032 Sprayer II (5Gal) (S/N S007570-UP) Sprayer

Model: 15032 SPRAYER II (5GAL) (S/N S007570-UP)

Save
Part Not Listed?Part Not Listed?
product name

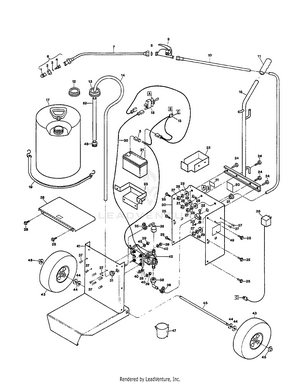

MAIN ASSEMBLY

...
...
1

...
2

...
3

...
4

...
5
WIRE-TERM 10882 MTD-1983932

...
6
ASSM-ADJ CONE W5500 MTD-1984145

...
7
EXTENSION-SPRAY 10825 MTD-1983912

...
8
WASHER-TEFLON/BRASS 10842 MTD-1983924

...
9
VALVE-SHUT OFF PISTOL 10824 MTD-1983911

...
10
HOSE W/FITTINGS 10845 MTD-1983926

...
11
GRIPS-HANDLEBAR MTD-9471

...
12
CAP-E/S TANK 10868 MTD-1983929

...
13
CAP W/HOLE 10869 MTD-1981103

...
14
HOSE-1/4" X 4' 10841 MTD-1983923

...
15
KIT-WIRE HARNESS 96517 MTD-1984225

...
16
ASSM-HANDLE MTD-1981096

...
17
KIT-CAP & TANK MTD-1983954

...
18
Toggle Switch: Single Throw MTD-925-1756

...
19
STRAP-RUBBER 10826 ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-1983913

...
20
WIRE-ON/OFF-SWITCH PUMP MTD-1984411

...
21
BATTERY {34037,34039} MTD-1768158

...
22
BRKT-ACCESSORY MTD-1981088

...
23
ASSM-BATTERY BRKT MTD-1981089

...
24
ENGINE-9436B ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9008

...
25
DIAPHRAGM-FUEL PUM ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-690-239-0016

...
26
LID WITH HINGE MTD-1981101

...
27
NUT-HEX 5/16-18 ZP ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9801

...
28
WASHER-LK .312 ZP ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9912

...
29
WASHER-1.25X.375X.1 ZP ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9933

...
30
ASSM-CHASSIS MTD-1981092

...
31
BUSHING-SNP 10827 MTD-1983914

...
32
SCR-RH M10-32X.5 MACH ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9722

...
33
CLAMP-CABLE 10828 MTD-1983915

...
34
NUT-HH M10-32X.125 ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9809

...
35
Clamp, Adjustable Hose ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-726-0146

...
36
CHARGER-BATTERY TRAILBLAZER MTD-11402

...
37
RIVET-POP 1/8-3/8 10840 ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-1983922

...
38
SWIVEL-90 ELBOW 10843 MTD-1983925

...
39
NUT-HEX M10-24 MTD-9839

...
40
WASHER-#10 MTD-9922

...
41
ASSM-CHASSIS MTD-1981092

...
42
PUMP-SHURFLO 11511 5GAL MTD-1984194

...
43
ASSM-TIRE & WHEEL MTD-1983937

...
44
WASHER-1.75X.625X.11 ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-9908

...
45
NUT-PUSH 5/8 MTD-92021

...
46
AXLE-EL SPRAY 10847 MTD-1981087

...
47
CUP-MEASURING 8OZ 10833 ITEMS MARKED WITH AN ASTERISK ARE AVAILABLE LOCALLY. MTD-1983920

...
48
STRAINER-EL SPRAYER 10832 MTD-1983919

...
49
DECAL-SPRAYER LOGO 97122 MTD-1984227

...
50
DECAL-CHARGE 10817 MTD-1983907

...
51
DECAL-WARNING E/S 10818 MTD-1983908

...
52
1/2" PVC SCH40 11512 MTD-1983935
...
...
...
