Troy-Bilt 14AZ809K766 Big Red (2004) Garden Tractor

Model: 14AZ809K766 Big Red (2004)

Save
 Part Not Listed?Part Not Listed?
product name

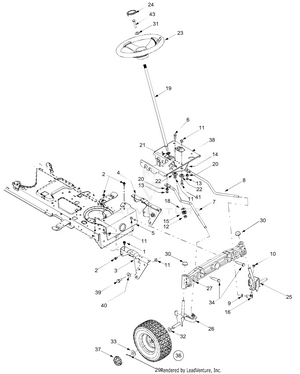

Axle, Front Wheel, Steering

...
...
1
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
2
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
3
Pivot Bracket, Support RH MTD-783-0726E
...
4
Bracket, Pivot, Support LH MTD-783-0727B
...
5
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-0728B-0637
...
6
Hex Cap Screw, 3/8-16 x 1 MTD-710-0514
...
7
RH Drag Link MTD-711-1408
...
8
LH Drag Link MTD-711-1409A
...
9
Nut, Jam, 7/16-20, Gr2 MTD-912-0240
...
10
Hex Nut, 3/8-24 MTD-712-0214
...
11
Lock Nut, 3/8-16 MTD-712-0130
...
12
Flange Lock Nut, 7/16-20 MTD-712-0459
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
Steering Gear MTD-717-1550F
...
15
Steering Pinion Gear MTD-717-1554
...
16
Ball Joint, 7/16-20, Lock MTD-923-0448A
...
17
Lock Washer, 3/8 MTD-736-0169
...
18
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
19
Steering Shaft, .625 OD x 24.4 MTD-738-1001A
...
20
BUSHING .380 ID MTD-941-0475
...
21
BRG:HEX FLNG 5/8 MTD-941-0656A
...
22
Shoulder Spacer, .38 ID MTD-738-0372B
...
23
Steering Wheel, Soft Grip, Three Spoke MTD-731-04008
...
24
Steering Wheel Cover MTD-731-04066A
...
25
AXLE ASSEMBLY (.750) (LH) MTD-638-04003AP
...
26
AXLE ASSEMBLY (RH) .750DIA MTD-938-04004A
...
27
CAST PIVOT BAR AXLE MTD-919-04177E
...
29
Cotter Pin MTD-714-0162
...
30
Push Cap, .750 MTD-726-0341
...
31
Bell Washer, .34 x .872 MTD-736-0242
...
32
Flat Washer, .78 x 1.59 x .06 MTD-736-0316
...
33
Flat Washer, .635 x 1.589 x .06 MTD-736-0285
...
34
SHOULDER SCREW .50 x 2.23 3/8-16 MTD-738-1011A
...
35
Hex Bolt, 5/16-18 X 1 MTD-710-0643
...
36
WHEEL ASSEMBLY (16 x 6.5 x 8) Assembly is NLA MTD-634-04088A
...
36
RIM ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-934-04082
...
36
TUBELESS VALVE MTD-934-0255
...
36
Tire Only, Square Shoulder MTD-734-1727
...
36
FLANGE BEARING MTD-741-0516B
...
36
FLANGE BEARING W/ZERK FITTING MTD-741-0990B
...
36
WHEEL ASSEMBLY (16 x 6.5 x 8) Assembly is NLA MTD-634-04088A
...
36
RIM ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-934-04082
...
36
TIRE:16.0 x 7.5 x 8.0 *CHOOSE COLOR WHEN ORDERING* MTD-734-04148
...
37
HUB CAP MTD-731-2290B
...
38
Steering Support Bracket MTD-783-04612-0637
...
39
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
40
Bell Washer, .39 x 1.13 x .062 MTD-736-0331
...
41
Hex Bolt 3/8-16 x 1.0 Special MTD-710-04095

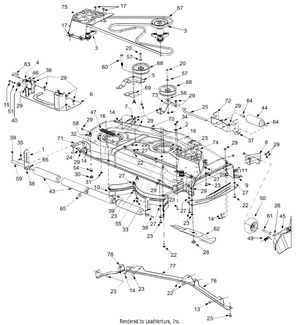

Deck Assembly

...
...
1
Bracket, Adjustment, Height MTD-12650
...
2
Retainer Hook Bracket MTD-96606
...
3
Deck Spindles MTD-918-04608A
...
4
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
5
Idlr Assembly, 54" MTD-683-0459
...
6
LIFT BRACKET ASSEMBLY MTD-683-0608B
...
7
Bracket Assembly, LH-Front MTD-683-0609
...
8
Bracket Assembly, RH-Front MTD-683-0610
...
9
Chute Stop Bracket MTD-683-0617A-0637
...
10
Inner Baffle MTD-703-2093C
...
13
Hex Screw 3/8-16 x 0.75 MTD-710-0216
...
14
Hex Screw 3/8-16 x 1.0 MTD-710-0514
...
15
Hex Screw, 5/16-18 x 1.25 MTD-710-0528
...
16
LD Screw 5/16-18 x 0.75 MTD-710-1260A
...
17
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
20
Hex Screw, 3/8-16 x 2.25 MTD-710-3011
...
21
Screw-Hex 5/16-18 MTD-710-0395
...
22
Bolt, Carriage, 3/8-16 x 1.0 MTD-710-3168
...
23
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
24
Clevis Pin, .50" Dia. MTD-911-0332
...
25
Pin, Roller, .5" Dia x 10.06 MTD-711-1737
...
26
Pin, Hinge, Dia .375 x 14.06 MTD-711-1762
...
27
Push Nut Retainer MTD-712-0229
...
28
HEX NUT MTD-712-0417A
...
29
Nut, Lock, 3/8-16 MTD-712-0130
...
30
Hex Nut M16 MTD-712-0641
...
31
Nut, Flange Lock, 5/16-18 MTD-712-0429
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Nut, Hex Lock, 1/2-13 MTD-712-3022
...
35
Pin, Click, .092 x 1.64 MTD-714-0145
...
36
Pin, Cotter, 1/8 x 1.25 MTD-714-0470
...
37
Pin, Cotter, 3/32 x 1.25 MTD-714-3004
...
38
Pin, Spring 1/4 Dia x 1.00 MTD-715-0108
...
39
Cotter Pin MTD-714-0162
...
40
Adjustment, Deck, Gear MTD-917-04074
...
41
WATER NOZZLE MTD-921-04041
...
43
Roller, Deck MTD-731-0335
...
44
Front Roller MTD-731-3005
...
45
Deflector, Chute MTD-931-3131A
...
46
COMPRESSION SPRING MTD-932-0306A
...
47
Spring, Extension, .94 Dia x 6.74 MTD-732-0459C
...
48
Spring, Extension, 1.15 Dia x 5.99 MTD-732-0934
...
49
Torsion Spring .44 I.d. x 2.10 MTD-732-3070A
...
50
Deck Wheel, 5" Dia. MTD-753-04856A
...
51
LOCK WASHER 5/16 MTD-936-0119
...
54
Lock Washer MTD-736-0760
...
55
Lock Washer MTD-736-0921
...
56
Flat Washer .406 ID X 1.5 x 11ga MTD-736-3039
...
57
Washer, Flat .38 ID x.93 OD x.110 MTD-736-3072
...
58
DECK WASH NOZZLE MTD-737-04003D
...
59
Shoulder Screw, .750 x .47.12 MTD-738-0295
...
60
Shoulder Screw MTD-738-1229A
...
61
Wheel Bolt MTD-938-0373
...
62
Blade, 18.50" MTD-942-0677B
...
63
Deck Release Handle Rod, .375 Dia MTD-747-1116
...
64
Spacer .550 ID x .755 OD x 1.1 MTD-950-0151
...
65
Spacer, .82 ID x 1.00 OD x .53 MTD-750-0212
...
67
Belt, V-Type, B Section MTD-954-0642
...
68
Pulley, Idler, 5.0 Dia. MTD-756-3105
...
69
Bracket, Stabilizing MTD-783-04013A
...
70
Deck MTD-983-04127
...
xx
Deck MTD-983-04127
...
71
Bracket, Mounting, 54" Roller MTD-783-1453
...
72
Bracket, Roller, Front MTD-783-1454D
...
73
Bracket, Idler MTD-783-1455
...
74
Cover, Spindle RH MTD-783-1470
...
75
Cover, Spindle LH MTD-783-1471A
...
76
RH Skirt MTD-783-1482-0637
...
77
LH Skirt MTD-783-1483-0637
...
78
LH Extension Skirt MTD-783-1484-0637
...
79
Chute Stop (not shown) MTD-703-3279

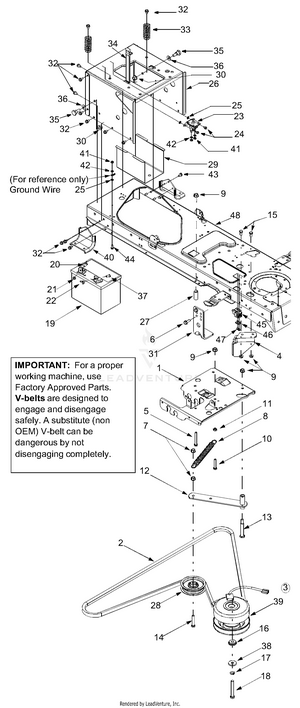

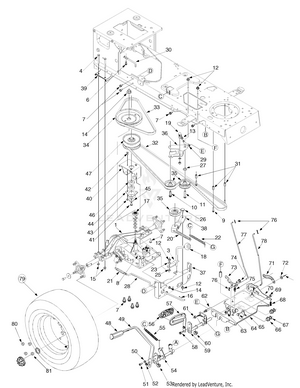

Drive, Controls, Rear Wheels

...
...
1
Transmission Assembly, 2-Speed Refer to "Transmission 618-0376A" MTD-753-05002
...
3
Shift Rod Assembly MTD-647-04023
...
4
Hex Bolt 5/16-18 x 2.75 MTD-710-0176
...
6
TT Screw 1/4-20 x 0.75 MTD-710-0642
...
7
AB Screw 5/16-12 x 0.75 MTD-710-0726
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
TT Screw 1/4-20 x 1.25 MTD-710-0809
...
10
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
11
Hex Bolt 3/8-16 x 2.25 MTD-710-3011
...
12
Lock Nut 3/8-16 MTD-712-0130
...
13
Hex Nut 3/8-24 MTD-712-0241
...
14
Flange Nut, 7/16-20 MTD-912-0702
...
15
HEX FLANGE NUT MTD-712-3004A
...
16
Cotter Pin MTD-714-0111
...
17
Pulley Hub, 1/2 Spline MTD-918-0771A
...
18
Shift Knob MTD-720-04028
...
19
Ball Joint MTD-923-3018
...
19
Lock Washer 3/8 Not shown MTD-736-0169
...
19
Hex Nut 3/8-24 Not shown MTD-712-0241
...
20
Spring, Extension MTD-932-0478
...
21
Extension Spring, .59 OD x 4.00 LG MTD-732-0716D
...
22
Extension Spring MTD-732-0963
...
23
Bell Washer MTD-736-0105
...
25
Flat Washer MTD-736-0642
...
26
Shoulder Screw, .625 x .217 MTD-738-0322A
...
27
Shoulder Spacer MTD-738-0372B
...
28
Brake Rod MTD-747-04136
...
29
Rod: Idler Adjustment MTD-747-1127
...
30
Rod: Belt Guard MTD-747-1185
...
31
Spacer MTD-750-0566A
...
32
V Belt, 5L, 90.93 Poly MTD-954-0467A
...
33
Upper drive Belt MTD-954-0468
...
34
Transmission Pulley, 8.5 MTD-956-0665
...
35
Idler Pulley, 2.75 OD MTD-756-04224
...
35
Hex Bolt 3/8-16 x 1.75 Not shown MTD-710-0347
...
35
Hex Lock Nut 3/8-16 Not shown MTD-712-0130
...
36
Idler Bracket, Center Double MTD-783-04442
...
37
Torque Bracket MTD-783-0667B
...
38
Idler Bracket MTD-783-0669-0637
...
39
Axle Bracket MTD-783-0693A-0637
...
40
Bracket: Variable Speed MTD-618-04152-0637
...
41
Lock Bolt 5/16-24 x 0.75 MTD-710-0627
...
42
Hex Bolt 1/4-20 x 0.75 MTD-710-3015
...
43
LOCK NUT 1/4 MTD-912-3027
...
44
Cup: Bearing MTD-718-04012
...
45
Flat Washer MTD-736-0362
...
46
BALL BEARING MTD-941-0600
...
47
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
48
Pad, Brake MTD-735-3049A
...
49
Brake Control Assembly MTD-753-05606
...
50
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
51
TT Screw 5/16-18 x 0.75 MTD-710-1611B
...
52
TT Screw 5/16-18 x 0.875 MTD-710-0650
...
53
Hex Flange Bearing: Split MTD-741-3065B
...
54
Brake Control Assembly MTD-753-05606
...
55
Extension Spring MTD-732-0963
...
56
Control Pad MTD-735-0662
...
57
Drive Pedal Assembly MTD-683-0266
...
58
LD Screw 5/16-18 x 0.75 MTD-710-1260A
...
59
Control Assembly, Speed MTD-647-0032A-0637
...
61
Hex Lock Nut 3/8-16 MTD-712-0130
...
62
Pin MTD-753-04872
...
64
Screw, Shoulder.437 Dia x.162 MTD-938-0155
...
65
Steering Support Bracket MTD-783-04612-0637
...
66
FLANGE BEARING MTD-941-0225
...
67
Push Nut MTD-712-04016
...
68
Compression Spring MTD-732-0335
...
69
HEX FLANGE NUT MTD-712-3004A
...
70
Bracket, Lockout MTD-783-0732A
...
71
Neutral Return Bracket MTD-783-0780B
...
72
Flat Washer MTD-736-0262
...
73
Latch, Cruise Control MTD-748-04039C
...
74
Shoulder Screw MTD-738-0380
...
75
Extension Spring MTD-732-0955
...
76
Cotter Pin MTD-714-0104
...
77
Rod, Brake Lock MTD-747-04093A
...
78
Cruise Control Rod MTD-747-04096
...
79
Wheel Assembly MTD-634-0104
...
79
Rim Only Not shown MTD-634-04369
...
79
TUBELESS VALVE Not shown MTD-934-0255
...
79
Tire Not shown MTD-734-1730
...
79
HUB CAP Not shown MTD-731-2290B
...
79
Flat Washer Not shown MTD-736-0430
...
79
Wheel Assembly Hub Not shown MTD-918-04317
...
80
Lug Nut 7/16-14 MTD-712-3050
...
81
Jam Nut MTD-712-3026

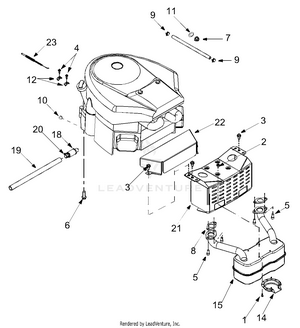

Engine Accessories

...
...
1
Self-tapping Screw, #8-18 x .5 MTD-710-0227
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
AB Screw, 5/16-12 x .75 MTD-710-0726
...
4
Screw, #10-32 x .625 MTD-710-1237
...
5
Socket Cap Screw, 5/16-18 x .625 MTD-710-1314A
...
6
Self-tapping Screw, 3/8-16 x 1.25 MTD-710-1315
...
7
HEX NUT 3/8-16 GR5 MTD-712-3017
...
8
MUFFLER GASKET MTD-721P0460
...
9
Hose Clamp MTD-726-0205
...
10
Sems Nut MTD-712-0271
...
11
Flat Washer MTD-736-0300
...
12
Casing Clamp MTD-751B221535
...
13
Fuel Line Hose MTD-751-0535
...
14
Deflector, Muffler MTD-751-0564B
...
15
MUFFLER (DUAL INLET) MTD-951-0616B
...
16
Exhaust Pipe RH MTD-751-0650B
...
17
Exhaust Pipe LH MTD-751-0651B
...
18
Oil Drain MTD-951-10517A
...
19
Oil Drain, Extension Hose MTD-751-3141-14
...
20
Oil Drain Cap MTD-751-3142
...
21
Muffler Heat Shield MTD-783-0615E-0637
...
22
Engine Heat Shield MTD-783-0625C
...
23
THROTTLE CABLE MTD-946-1086
...
24
Cable Tie (not shown) MTD-725-0157

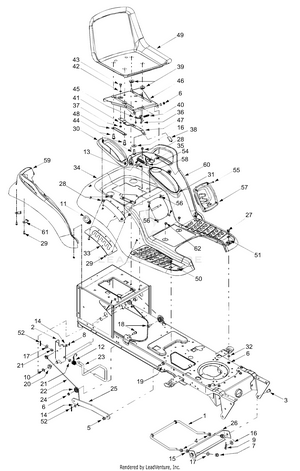

Fender & Seat

...
...
1
Deck Stabilizer Rod (Model T809H) MTD-747-1130B
...
xx
Deck Stabilizer Rod (Model Z809K) MTD-747-1324
...
2
Lift Shaft Assembly MTD-983-0197
...
xx
Lift Shaft Assembly (Model Z809K) MTD-683-0462
...
3
Clevis Pin, .50" Dia. MTD-911-0332
...
4
HEX NUT MTD-712-0206
...
5
Hex Flange Nut 3/8-16 MTD-912-0431
...
6
Lock Nut, 5/16-18 MTD-712-0429
...
7
Hex Nut, 1/2-13 MTD-712-3083
...
8
Internal Cotter Pin MTD-714-0104
...
9
Internal Cotter Pin MTD-714-0145
...
10
E-Ring MTD-716-0106A
...
11
Handle Grip MTD-720-0311
...
12
Torsion Spring MTD-732-0874
...
13
Extension Spring, .84 x 4.6 MTD-732-1184
...
14
FLAT WASHER MTD-736-0275
...
15
Lock Washer, 1/2 MTD-736-0921
...
16
Flat Washer, .31 x 1.062 x .134 MTD-736-3019
...
17
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
18
Hex Cap Screw, 5/16-18 x .62 MTD-738-0138A
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
FLANGE BEARING MTD-941-0225
...
21
Snap Flange Bearing MTD-941-0715
...
22
Lift Cable, 16.16 MTD-746-0968
...
23
Lift Handle MTD-747-1111A
...
24
Roller Pulley MTD-756-1154
...
25
Deck Lift Link MTD-783-0678C
...
26
Bracket, Front Deck Rod MTD-783-0720C
...
27
Carriage Bolt, 5/16 x .62 MTD-710-0260A
...
28
AB Screw, 5/16-12 x .75 MTD-710-0726
...
29
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
30
Cover, Lift Lever MTD-731-06795
...
31
Cover w/ Cup Holder MTD-731-1993A
...
32
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
33
Deck Lift Plate MTD-783-0677B-0637
...
34
Fender 4 Style 2-Speed MTD-783-04331A
...
35
Seat Mounting Bracket MTD-783-1489C
...
36
Screw, #10-16 x .375 MTD-710-1268
...
37
LOCK NUT 1/4 MTD-912-3027
...
38
Seat Adjuster Grip MTD-720-0309A
...
39
Spacer MTD-731-04074
...
40
Compression Spring, .41 x 1.5 MTD-732-0499
...
41
FLAT WASHER MTD-736-0275
...
42
Flat Washer, .344 x .62 x .03 MTD-736-0204
...
43
Shoulder Screw, .340 x .285,1/4-20 MTD-738-0137A
...
44
Shoulder Screw, .50 x .50, 3/8-16 MTD-738-1007
...
45
Seat Stop MTD-783-0611
...
46
Seat Pivot Bracket MTD-783-0738D
...
47
Seat Adjustment Lever MTD-783-0739
...
48
Seat Adjustment Selector MTD-783-0753
...
49
High Back Seat, Black MTD-957-04010
...
50
RH Foot Pad MTD-735-0656
...
51
LH Foot Pad MTD-735-0657
...
xx
Foot Pad Clips MTD-726-3046
...
52
Cotter Pin MTD-714-0111
...
54
Seat Lift Bracket MTD-783-0209D
...
55
Phillips Pan Screw, 1/4-20 x .75 MTD-710-0924
...
56
U-type Speed Nut, 1/4-20 MTD-712-0292
...
57
Shift Cover MTD-731-2480A
...
58
Shoulder Screw, .437 x .286 MTD-738-0296
...
59
RH Fender Flare MTD-731-2618
...
60
LH Fender Flare MTD-731-2619
...
61
Fender Clips MTD-783-1478
...
62
TT Screw 1/4-20 x 0.5 MTD-710-0599

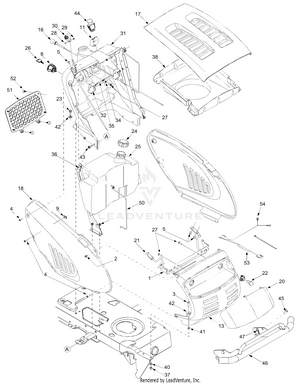

Hood & Electrical

...
...
1
GRILLE: SUPPORT BRACKET MTD-783-1346A-0637
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
4
Phillips Pan Screw, 1/4-20 x .75 MTD-710-0924
...
5
Truss Phillips Screw, 1/4-20 x .625 MTD-710-1017
...
6
Ignition Switch MTD-925-1741
...
7
Clamp, 9/16 MTD-726-0272
...
8
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
9
U-type Speed Nut, 1/4-20 MTD-712-0292
...
10
SPRING WASHER BELL MTD-736-0270
...
11
Systems Indicator Monitor MTD-925-1976
...
xx
HOUR METER/SERVICE MINDER MTD-925-06170B
...
12
HEX FLANGE NUT MTD-712-3004A
...
13
GRILLE MTD-731P2119A
...
15
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0175
...
16
Choke Cable MTD-946-1085A
...
17
HOOD:3 STYLE MTD-783-0783A
...
18
Side Panel, RH MTD-783-0784A
...
19
LH Side Panel MTD-783-04200
...
20
Headlight Lens MTD-731-2637
...
21
Hood Hinge Rod MTD-747-2138
...
22
Headlight Assembly MTD-925-0051
...
23
AB Screw, 5/16-12 x .75 MTD-710-0726
...
24
FUEL CAP (MAX 10% ETHANOL) MTD-751-0603A
...
25
FUEL TANK (3 GAL) MTD-751-10283B
...
26
IGNITION KEYS MTD-925-1745A
...
26
IGNITION KEYS MTD-925-1745A
...
27
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
28
Truss Phillips Screw, #8-32 x .375 MTD-710-3217
...
29
Hex Nut, #8-32 MTD-712-0142
...
30
Throttle Control Knob MTD-731-1857
...
31
Dash Panel (Models w/ Electric PTO) MTD-631-04038
...
32
Cruise Control Button MTD-931-04215
...
33
Parking Brake Button MTD-931-04217
...
34
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
35
Brake/Cruise Pivot Rod MTD-747-1196
...
36
RH Support Plate MTD-783-04285F-0637
...
36
Dash Support Plate LH MTD-783-04383
...
37
HEX NUT 5/16-18 MTD-712-3010
...
38
Plenum, Super Bronco (Model T609) Not standard on all tractors. MTD-731-2270A
...
39
Ratchet Clip MTD-726-3046
...
40
LOCK WASHER 5/16 MTD-936-0119
...
41
Speed Nut, .3125 MTD-726-0201
...
42
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
43
TT Screw, 5/16-18 x .875 MTD-710-0650
...
44
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
45
Clevis Pin, .50" Dia. MTD-911-0332
...
46
Front Bumper MTD-OEM-190-679
...
47
Click Pin MTD-714-0145
...
48
TT Screw 5/16-18 x 0.75 MTD-710-1611B
...
49
PANEL SEAL (LH) MTD-935-04019
...
50
SUPPORT ROD MTD-747-04132A
...
51
Cargo Net MTD-735-04023
...
52
Ratchet Clip MTD-726-3046
...
53
Harness, Headlight MTD-929-04083B
...
54
HARNESS ASSEMBLY MTD-929-04073
...
xx
HARNESS ASSEMBLY MTD-629-04075

PTO, Battery, Frame

...
...
1
Steering Support Bracket MTD-783-04612-0637
...
2
V-Belt MTD-954-0476
...
3
Electric PTO Clutch (Mod. Z809K) Replaces 717-1774, Also requires 736-0277 Flat Washer in this application. MTD-917-05001
...
3
Washer, Flat, 1.031 x 1.62 x .095 use with 717-1774C MTD-736-0277
...
4
PTO Clutch Anti-rot. Brakt. MTD-683-0618-0637
...
5
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
6
Hex Hd Wash. Screw, 5/16-18 x .875 MTD-710-0726
...
7
Hex Flange Nut 3/8-16 MTD-912-0431
...
8
Extension Spring, .62 x 5.62 MTD-732-0978
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Idler Bracket Assembly MTD-683-0294
...
13
Shoulder Screw, 1/2 Dia x 2.50 MTD-938-3056
...
14
Hex Cap Screw, 3/8-16 x 2.0 MTD-710-3144
...
15
Hex Cap Screw, 5/16-18 x .625 MTD-710-3025
...
16
Shoulder Spacer, 1.38 x .445 x .36 MTD-938-0785
...
17
Lock Washer, 7/16 MTD-736-0171
...
18
Screw, 7/16-20 x 3.25 MTD-710-3157A
...
19
Battery MTD-925-1707D
...
20
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
21
Hex Sems Nut, 1/4-20 MTD-712-0271
...
22
WING NUT 1/4-20 MTD-712-3087
...
23
Solenoid, 12-Volt, 100 Amp MTD-925-1426A
...
24
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
25
Lock Washer, 1/4 MTD-736-0222
...
26
Hitch Plate MTD-783-1033A
...
27
Spacer, 3/8 x 1.54 MTD-748-0415B
...
28
ENGINE PULLEY MTD-756-0639A
...
29
Battery Tray MTD-783-0349
...
30
Flange Lock Nut, 7/16-20 MTD-712-0459
...
31
Deck Stop MTD-783-04467
...
32
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
33
Compression Spring, 1.28 x 3.5 MTD-732-3080A
...
34
Battery Strap MTD-723-0444
...
35
Shoulder Screw, .625 x .5, 7/16-20 MTD-738-1020
...
36
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
37
Shoulder Screw, 1/4-20, .25 x .15 MTD-738-1132
...
38
Flat Washer, .45 x 1.25 x .164 MTD-736-0322
...
39
Harness Assembly, PTO Clutch MTD-925-3242
...
40
Axle Bracket MTD-783-0693A-0637
...
41
HEX NUT MTD-712-3006
...
42
Lock Washer MTD-936-0329
...
43
TT Screw 5/16-18 x 0.5 MTD-710-0607
...
44
TT Screw 1/4-20 x 0.75 MTD-710-0642
...
45
Switch MTD-925-1657A
...
46
Switch Plate MTD-17962
...
47
HEX SCREW AB-TAP #10-16 x 0.500 MTD-910-0224
...
48
Lower Frame Assembly MTD-683-0304C
...
49
Lock Nut 3/8-16 MTD-712-0429

Transmission 618-0376A

...
...
1
Reverse Collar Assembly MTD-618-0225
...
2
Hi-Lo Collar Assembly MTD-618-0226
...
3
Shift Fork Assembly MTD-918-04156
...
4
Flat Washer, 1.01" x 1.56" x .060" MTD-736-0745
...
5
Shft. Cover MTD-918-04053
...
6
Flat Washer MTD-736-0227
...
7
Lock Bolt, 3/8"-16 x 0.75" MTD-710-3119
...
8
Ball Bearing MTD-741-0681
...
9
Wheel Assembly Hub MTD-918-04317
...
10
Differential Axle Assembly MTD-618-04142
...
11
UPPER HOUSING ASSEMBLY MTD-919-04081
...
12
Flanged Bearing MTD-741-04086
...
13
Brake Assembly MTD-961-0012
...
14
Flanged Bearing MTD-741-04085
...
15
Self Tapping Screw, 1/4"-20 x 1.00" MTD-710-0788
...
16
Drive Shaft MTD-711-1051A
...
17
Output Shaft MTD-711-1216
...
18
Flat Washer, 1.12" x 1.75" x .03" MTD-736-0715
...
19
9-tooth Sprocket MTD-913-0446
...
20
16-Tooth Sprocket MTD-713-0447
...
21
22-link Chain,.625 MTD-913-0448
...
22
External Snap Ring MTD-916-0131
...
23
BRAKE PUCK MTD-917-0678
...
24
41-tooth Bevel Gear MTD-917-1438A
...
25
20-tooth Spur Gear MTD-917-1439A
...
26
10-Tooth Spur Gear MTD-717-1440
...
27
27-Tooth Spur Gear MTD-717-04109
...
28
37 Tooth Spur Gear MTD-717-04110
...
29
Shift Lever MTD-747-1140
...
30
Shifter Insert MTD-718-0504
...
31
Spacer MTD-750-04244
...
32
Shift Lever MTD-747-1140
...
33
Lower Housing MTD-719-04083
...
34
Lockout Plate MTD-718-0540
...
35
FLAT WASHER MTD-936-0167
...
36
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
37
Input Shaft MTD-711-1235
...
38
Shift Lever MTD-747-1140
...
39
E-Ring, .75" MTD-716-0231
...
40
Disc Brake MTD-761-0215
...
41
Retaining Ring,.56 MTD-916-0114
...
42
13-Tooth Bevel Gear MTD-717-1463A
...
43
THRUST WASHER MTD-936-0335
...
44
FLAT WASHER MTD-936-0336
...
44
Flat Washer, 5/8" x 1.0" x .040" MTD-736-0337
...
44
FLAT WASHER MTD-936-0349
...
44
Flat Washer, 5/8" x 1.0" x .035" MTD-736-0494
...
44
THRUST WASHER MTD-736-0495
...
45
NEEDLE BEARING MTD-941-0335
...
xx
Transmission Assembly, 2-Speed Not shown MTD-753-05002
...
xx
Grease, Benalene 8 oz tube Not shown MTD-737-0300A
