Troy-Bilt 14AY809P063 (2000) Garden Tractor

Model: 14AY809P063 (2000)

Back To Assemblies

Save Part Not Listed?
product name

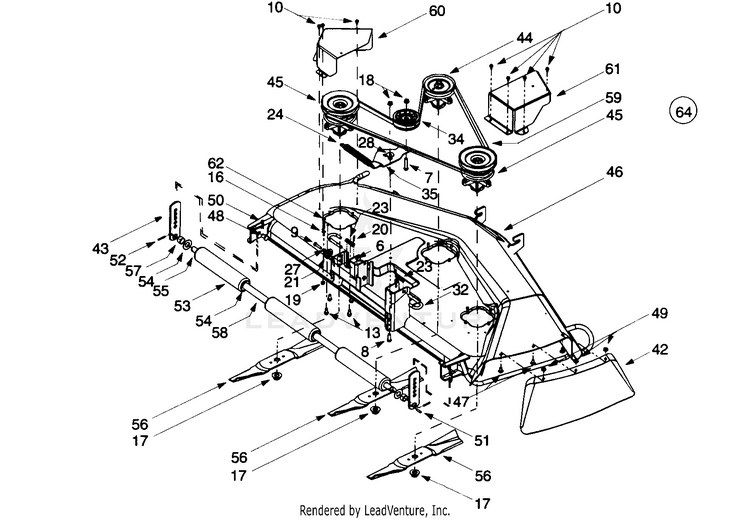

50-Inch Deck Assembly "P"

...
...
6
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
7
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
8
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
9
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
10
Self Tapping Screw,1/4-20 x .5 MTD-710-0599
...
13
Self Tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
16
Center Lock Nut, 1/4-20 MTD-712-0291
...
17
HEX NUT MTD-712-0417A
...
18
Hex Flange Nut 3/8-16 MTD-912-0431
...
19
LOCK NUT 1/4 MTD-912-3027
...
20
Internal Cotter Pin, .072 x 1.12 MTD-714-0104
...
21
Adjustment, Deck, Gear MTD-917-04074
...
23
COMPRESSION SPRING MTD-932-0306A
...
24
Extension Spring .91 x 7.33 MTD-932-0594A
...
27
LOCK WASHER 5/16 MTD-936-0119
...
28
Spacer-Shld MTD-938-0347
...
32
Deck Release Pin MTD-747-1116
...
34
Idler Pulley 3.50 dia. MTD-756-0627D
...
35
IDLER BRACKET MTD-783-0139B-0637
...
42
GUARD-CHUTE MTD-12649-0637
...
43
Height Adjustment Bracket MTD-12650
...
44
SPINDLE ASSEMBLY MTD-918-0428B
...
45
Double Pulley Spindle Assembly MTD-918-0429A
...
46
50-INCH DECK SHELL MTD-683-0196
...
47
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
48
Clevis Pin, .50" Dia. MTD-911-0332
...
49
HEX FLANGE NUT MTD-712-3004A
...
50
Click Pin, .092 x 1.64 MTD-714-0145
...
51
Spring Pin, 1/4 Dia. x 1 MTD-715-0108
...
52
Pin, Spring, 3/16 x 1.25 MTD-915-0246
...
53
Deck Roller MTD-731-0335
...
54
Flat Washer, .78 x 1.59 x .06 MTD-736-0316
...
55
Deck Roller Shaft, .75 Dia. x 47.12 MTD-738-0295
...
56
17.33" BLADE MTD-742-0623-0637
...
57
Spacer, .752 x 1.0 x .53 MTD-750-0212
...
58
SPACER-TUBE MTD-750-0288
...
59
V-Belt 1/2" x88"x 2 (Kevlar) MTD-954-0291A
...
60
BELT COVER (LH) 50" MTD-783-0746
...
61
COVER-PULLEY (RH) MTD-783-0793
...
62
Hex Cap Screw, 1/4-20 x 1.62 MTD-710-3288
...
64
DECK ASSEMBLY KIT MTD-753-0877
