Troy-Bilt 14AY809P063 (2000) Garden Tractor

Model: 14AY809P063 (2000)

Back To Assemblies

Save Part Not Listed?
product name

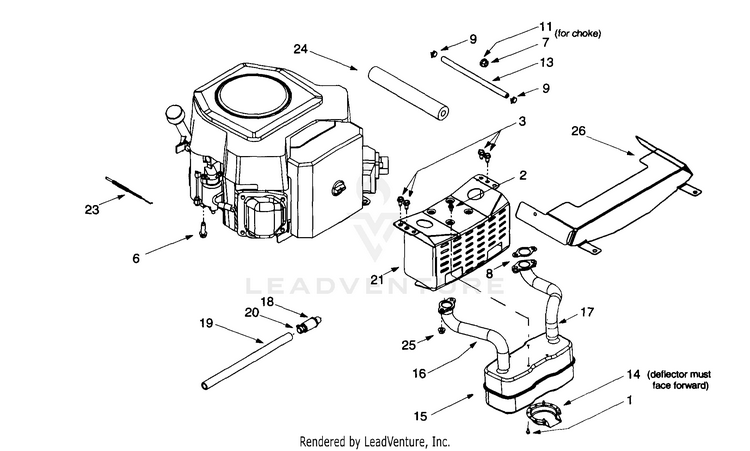

Muffler & Engine Accessories Kohler Twin-Cylinder

...
...
1
Self Tapping Screw, #8-32 x .375 MTD-710-0148
...
2
Self Tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Self Tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
6
Self Tapping Screw, 3/8-16 x 1.25 MTD-710-1315
...
7
HEX NUT 3/8-16 GR5 MTD-712-3017
...
8
EXHAUST MANIFOLD GASKET (Kohler Twin) MTD-KH-25-041-17-S
...
9
Hose Clamp MTD-726-0205
...
11
Flat Washer, .406 x .875 x .059 MTD-736-0300
...
13
Fuel Line Hose MTD-751-0535
...
14
Deflector, Muffler MTD-751-0564B
...
15
MUFFLER (KOHLER TWIN) (Kohler Twin) MTD-951-0805A
...
16
EXHAUST PIPE (RH) (Kohler Twin) MTD-751-0645A
...
17
Pipe, Exhaust, LH (Kohler Twin) MTD-751-0644B
...
18
Oil Drain MTD-951-10517A
...
19
Oil Drain, Extension Hose MTD-751-3141-14
...
20
Oil Drain Cap MTD-751-3142
...
21
Muffler Heat Shield MTD-783-0615E-0637
...
23
THROTTLE CABLE Intek Twin & Kohler Twin) MTD-946-1086
...
24
Insulation, Fuel Line (Fits over fuel line) MTD-723-3066-24
...
25
Flange Nut, M8 x 1.25-6 MTD-712-3086
...
26
HEAT SHIELD (Kohler Twin); (Mounts to Grille Front) MTD-783-0881
