Troy-Bilt 14AY809P063 (2000) Garden Tractor

Model: 14AY809P063 (2000)

Back To Assemblies

Save Part Not Listed?
product name

Electrical

...
...
7251648
RELAY MTD-925-1648A
...
7251426
Solenoid, 12-Volt, 100 Amp MTD-925-1426A
...
7251716
PTO SWITCH (BLACK KNOB) ANSI SYM MTD-925-1716A
...
7251741
IGNITION SWITCH MTD-925-1741
...
7251657A
Switch MTD-925-1657A
...
7251381
FUSE-20A MTD-925-1381
...
7251747
SEAT SWITCH MTD-925-1747
...
7251643
Reverse Switch MTD-725-1643

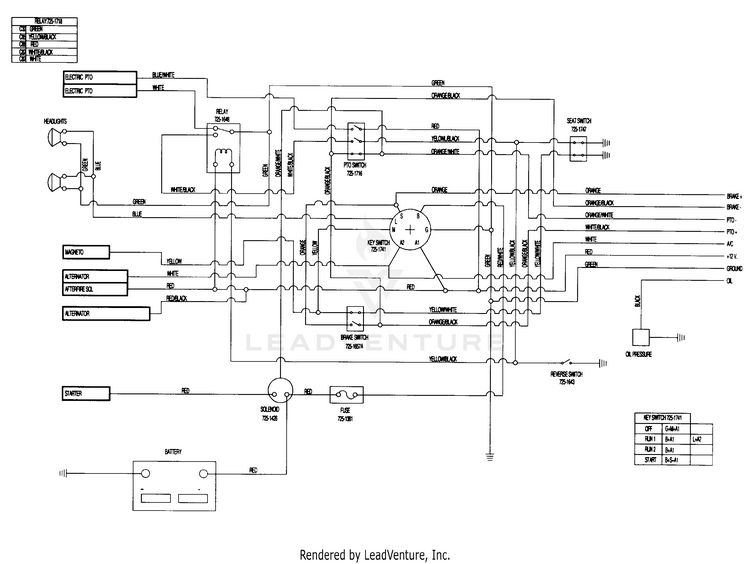

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
