Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

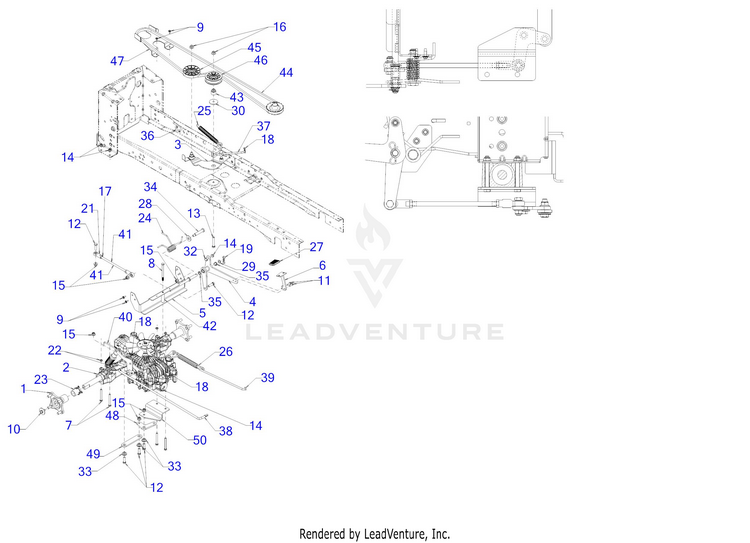

Drive

...
...
1
WHEEL HUB ASSEMBLY MTD-918-04317

...
1
STUD 7/16-14 x 1.6 (Not Shown) MTD-710-0852

...
2
HYDRO TRANS ASSEMBLY (See Separate Breakdown) MTD-918-06075

...
3
IDLER BRACKET ASSEMBLY MTD-983-05090A

...
3
SPACER (Not Shown) MTD-750-0890

...
4
DIFF PEDAL PIVOT ASSEMBLY (PLATED) MTD-683Z05301

...
5
TRANSMISSION MOUNTING BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-683-05303

...
6
DIFF LOCK PEDAL ASSEMBLY (PLATED) MTD-683Z05323

...
7
HEX SCREW 5/16-18 x 2.75 MTD-710-0176

...
8
HEX SCREW 5/16-18 x 4.00 MTD-710-0190

...
9
SCREW M6-1 x .625 MTD-710-06133

...
10
SCREW 3/8-16 x .75 GR5.1 MTD-710-06168

...
11
SCREW 1/4-20 x .750 MTD-710-0642

...
12
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005

...
13
SCREW 3/8-16 x 2.25 GR5 MTD-710-3011

...
14
FLANGE LOCK NUT 5/16-18 MTD-712-04063


...
16
FLANGE LOCK NUT MTD-712-04217

...
17
HEX JAM NUT 3/8X24 MTD-712-0711

...
18
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040

...
19
BOW TIE COTTER PIN MTD-714-05005

...
21
ROD END 3/8 ID MTD-723-04038

...
22
PUSH NUT MTD-726-0201

...
23
AXLE SLEEVE 1.02 ID x 1.60 LG MTD-731-10547A

...
24
DIFF PEDAL TORSION SPRING MTD-732-05080

...
25
EXTENSION SPRING .790 DIA x 8.41 MTD-732-05108A

...
26
EXTENSION SPRING 0.90 DIA x 8.14 MTD-732-05146

...
27
DIFF LOCK PEDAL PAD MTD-735-05173

...
28
Fl-Wash. 17/32" I.D. MTD-736-0179

...
29
THRUST WASHER MTD-936-0616

...
30
SHOULDER SPACER MTD-738-04162C

...
32
SHOULDER SCREW MTD-738-04320

...
33
SHOULDER SPACER MTD-738-04503

...
34
SHOULDER SCREW .50 x 2.23 3/8-16 MTD-738-1011A

...
35
NYLINER BEARING MTD-741-0491

...
36
DECK SPRING HOOK MTD-747-05608A

...
37
IDLER BRACKET LINK ROD MTD-747-06193B

...
38
HYDRO CONTROL ROD (PLATED) MTD-747-06713A

...
39
BRAKE CONTROL ROD (PLATED) MTD-747-06714

...
40
HYDRO DISENGAGE ROD (TUFF TORQ) MTD-747-06720A

...
41
ROD .375 OD X 8.75 LG (PLATED) MTD-747-06754

...
42
SPACER .337 ID X 2.02 LG *CHOOSE COLOR WHEN ORDERING* MTD-748-05012

...
43
SHOULDER SPACER MTD-748-05037B

...
44
V-BELT A SEC X 90.00 MTD-954-05156A

...
45
V-IDLER PULLEY 3.56 OD MTD-756-05024

...
46
FLAT IDLER PULLEY 3.00 OD MTD-756-05032

...
47
BELT KEEPER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-09170A

...
48
PIVOT BELLCRANK (PLATED) MTD-783-09190

...
49
BELLCRANK LINK (PLATED) MTD-783-09192

...
50
BELLCRANK MOUNTING BRACKET (PLATED) MTD-783-09299
...
...
...
