Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

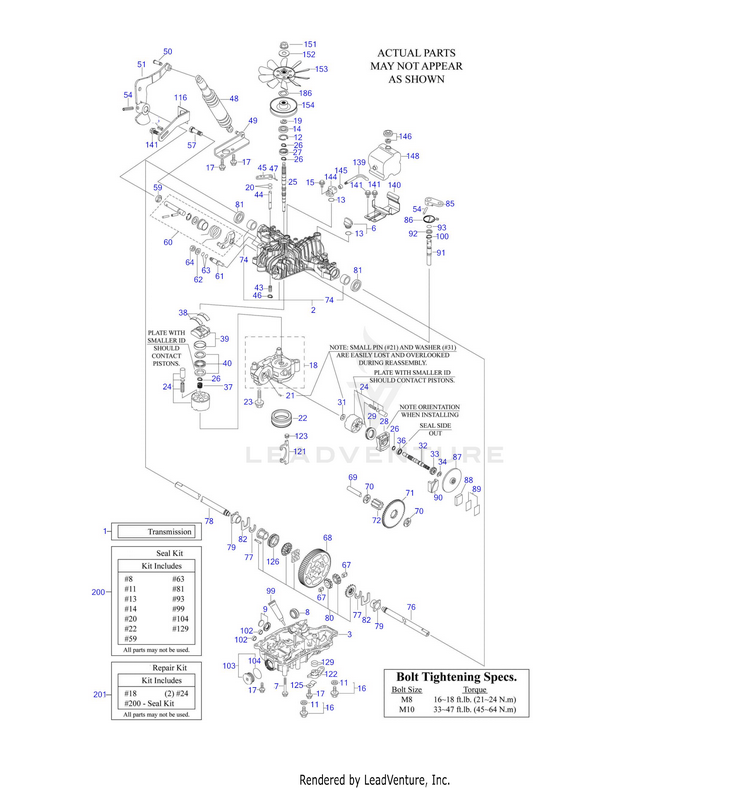

Transmission

...
...
1
K62AG TRANSAXLE MTD-918-06075

...
2
UPPER CASE KIT MTD-TT-1A632024121

...
3


...
7
M8X75 SCREW CAP MTD-TT-1A632010310


...
9

...
11
WASHER SEAL 10 MTD-TT-22190100000

...
12
SNAP RING C 35 MTD-TT-22252000350


...
14

...
15
M8 * 20 FLANGE BOLT MTD-TT-1A632010020

...
16
DRAIN BOLT KIT MTD-TT-1A632099320

...
17
TAPPING SCREW 8 X 30 MTD-TT-26476080302

...
18


...
20
0-RING 1A P10A MTD-TT-24311240100

...
21


...
22
FILTER SPACER (Not Shown) Fits between Reference 22 & 123 MTD-TT-1A632024980

...
23
M10 X 65 BOLT MTD-TT-1A632010650

...
24
CYLINDER BLOCK KIT(MOTOR MTD-TT-168T2025080

...
25

...
26
SNAP RING S15 MTD-TT-19215425310


...
28
MOTOR HOUSING MTD-TT-1A632024210

...
29
THRUST BEARING MTD-TT-19215424240


...
32

...
33


...
36
BEARING 6302DUC3 MTD-TT-24102063020

...
37

...
38
THRUST METAL MTD-TT-19215427051

...
39
SWASH PLATE ASSEMBLY MTD-TT-1A632027100

...
40
THRUST BEARING KIT MTD-TT-19215427000

...
43

...
44
BYPASS SHAFT MTD-TT-1A632029510

...
45
BYPASS LEVER MTD-TT-1A632029520


...
47

...
48
SHOCK ABSORBER K65 MTD-TT-19215489150

...
49


...
51
CONTROL LEVER MTD-TT-1A632029960

...
54
ROLL PIN 6X 40 MTD-TT-22351060040

...
55

...
57
BOLT M10X1.5 MTD-TT-1A632029100

...
59
SEAL TC 162606 MTD-TT-19406527270

...
60
CONTROL SHAFT KIT MTD-TT-1A632029801


...
62

...
63
O-RING 1A P14 MTD-TT-24311000140


...
67
DIFFERENTIAL PINION PIN MTD-TT-1A632081810

...
68

...
69
FINAL PINION SHAFT MTD-TT-1A632033410

...
70
WASHER 15 * 35 * 3.2 MTD-TT-1A632033420

...
71
REDUCTION GEAR MTD-TT-1A632083690

...
72
FINAL PINION Gear MTD-TT-1A632083560

...
74
BUSHING 25.4 MTD-TT-19215434240

...
76
AXLE SHAFT LEFT MTD-TT-1A632034170

...
77
RETAINING RING 23 MTD-TT-19216734160

...
78
AXLE SHAFT RIGHT MTD-TT-1A632034180

...
79
BUSHING 25.4 MTD-TT-19216734240

...
80
DIFFERENTIAL LOCK KIT MTD-TT-1A632087360

...
81
AXLE OIL SEAL MTD-TT-1A632034390

...
82
THRUST WASHER MTD-TT-1A632034290

...
85

...
86
BRAKE RETURN SPRING MTD-TT-1A632029891

...
87

...
88

...

...
90
BRAKE ACTUATOR MTD-TT-1A632036201

...
91

...
92
WASHER BRAKE SHAFT MTD-TT-1A632036190

...
93
O-RING 1A P12 MTD-TT-24311000120


...
100

...
102
FLANGE PLUG 20 MTD-TT-1A637024350

...

...
104
O-RING 24040 MTD-TT-24351240400

...
116
SWITCH PLATE MTD-TT-1A632083270

...
121
DIFFERENTIAL LOCK FORK MTD-TT-1A632087120

...
122
DIFFERENTIAL LOCK LEVER MTD-TT-1A632087140

...
123

...
125

...
126
DIFFERENTIAL LOCK SLIDER MTD-TT-1A632087260

...
129
0-RING 1A G25 MTD-TT-24321000250


...

...
141
TAP SCREWPING MTD-TT-26476080202

...


...
146
VENT VALVE 15 MTD-TT-1A632024250

...
148
RESERVOIR TANK MTD-TT-1A632084930

...
151

...
152
WASHER 11 * 31 * 32 MTD-TT-1A632089080



...
186

...
200
SEAL KIT K62A MTD-TT-1A632099301

...
201
REPAIR KIT K62A MTD-TT-1A632099181
...
...
...
