Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

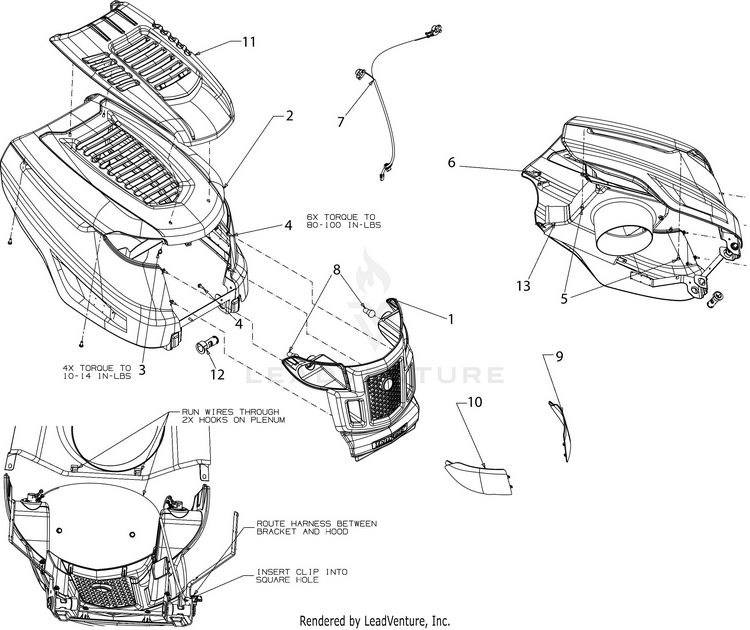

Hood & Grille

...
...
1
GRILLE ASSEMBLY (TROY-BILT) MTD-631-04272

...
1
LABEL-TROYBILT/GEAR (Not Shown) MTD-777D13024

...
2
HOOD ASSEMBLY(K STYLE) *CHOOSE COLOR WHEN ORDERING* MTD-683-05172

...
3
HEX SCREW 1/4-15 x .50 MTD-710-04187A

...
4
SCREW 1/4-10 x .750 MTD-710-06147

...
5
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
6
FLANGE LOCK NUT MTD-712-04064

...
7
HEADLIGHT HARNESS MTD-925-06463

...
8
MINIATUURE BULB 12V MTD-925-0963

...
9
LENS (LH) MTD-731-06095

...
10
LENS (RH) MTD-731-06096

...
11
HOOD SCOOP MTD-731-06194B

...
12
HOOD PIVOT PIN MTD-731-10070A

...
13
...
...
...
