Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

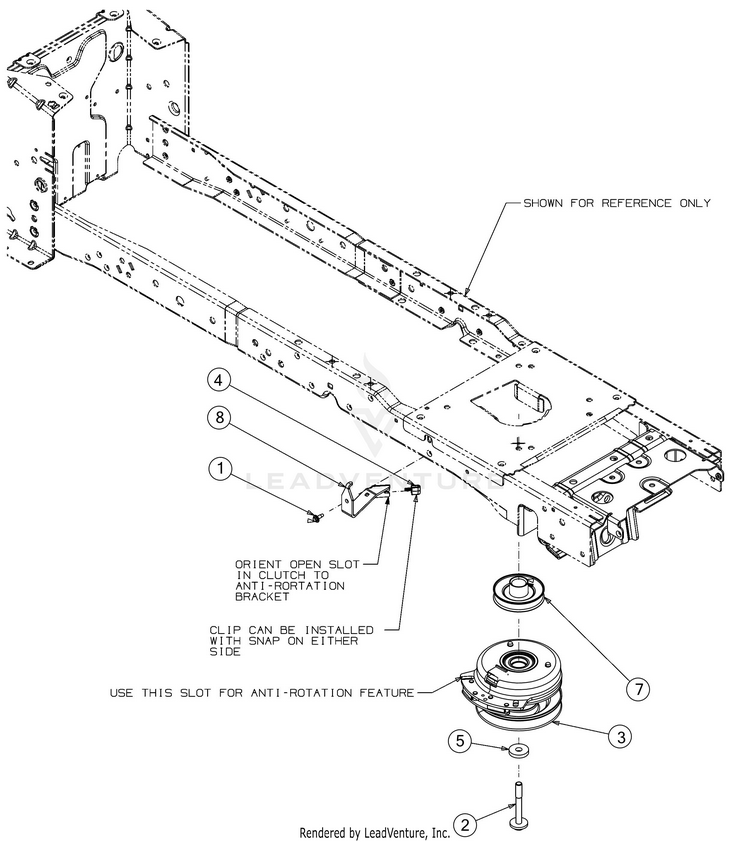

Electric PTO

...
...
1
SCREW M6-1 X .625 MTD-710-06133

...
2
SCREW 7/16-20 X 3.50 MTD-710-06266

...
3
ELECTRIC PTO CLUTCH MTD-917-05209

...
4
CLUTCH BRACKET GROMMET MTD-731-10576

...
5
FLAT WASHER .450X1.375X.250 THK MTD-736-05107

...
7
ENGINE PULLEY MTD-756-05061B

...
8
CLUTCH STOP BRACKET MTD-783-08656-0637
...
...
...
