Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?
product name

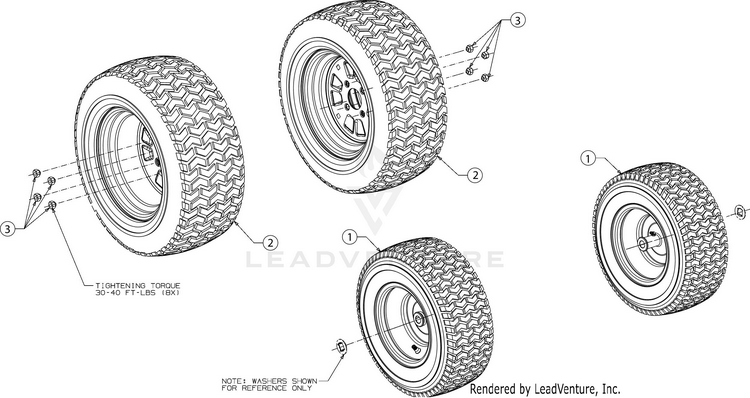

Wheels

...
...
1
WHEEL ASSEMBLY (16 x 6.5 x 8) *CHOOSE COLOR WHEN ORDERING* MTD-634-05082

...
1
RIM ASSEMBLY (8.0X5.38) *CHOOSE COLOR WHEN ORDERING*(Not Shown) MTD-634-05083

...
1
TUBELESS VALVE (Not Shown) MTD-934-0255

...
1
FLANGE BEARING (Not Shown) MTD-741-05094

...
1
GREASE FITTING 65 DEG 3/16 (Not Shown) MTD-737-05024

...
1
TIRE-16.0 x 6.50 x 8.00 SQ SH DELI (Not Shown) MTD-734-04641

...
2
WHEEL ASSEMBLY (22 x 9.5 x 12) *CHOOSE COLOR WHEN ORDERING* MTD-634-05107

...
2
TUBELESS VALVE (Not Shown) MTD-934-0255

...
2
TIRE 22X9.5X12 SQ SH (Not Shown) MTD-734-05065-0906

...
2
RIM ASSEMBLY (12 x 7) *CHOOSE COLOR WHEN ORDERING*(Not Shown) MTD-634-04238

...
3
LUG NUT 7/16-14 MTD-712-3050
...
...
...
