Troy-Bilt 14A7A5KA011 Super Bronco 54 GT FAB (2017) Garden Tractor

Model: 14A7A5KA011 Super Bronco 54 GT FAB (2017)

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

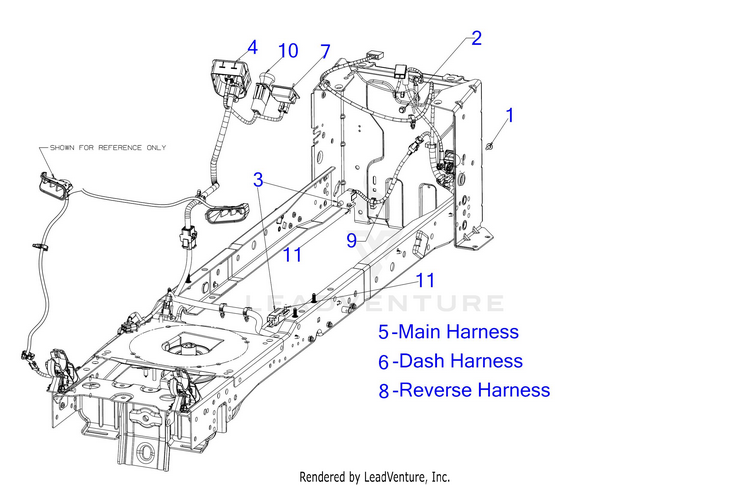

Electrical

...
...
1
SCREW M6-1 x .625 MTD-710-06133

...
2
SCREW 1/4-20X.625 MTD-710-1652

...
3
INTERLOCK SWITCH (NO/NC) MTD-725-04363

...
4
IGNITION MODULE SWITCH (RMC ELC PTO WHTE) MTD-725-13425

...
5
MAIN HARNESS (E-PTO/RMC/HRMTR) MTD-725P06127C

...
5
12V SOLENOID MTD-725-06153A

...
6
DASH HARNESS MTD-925-06129

...
7
HOUR METER/SERVICE MINDER MTD-925-06170B

...
7
Cub Cadet HOUR METER KIT Retail Packaged Part MTD-490-900-C075

...
7
Troy-Bilt HOUR METER KIT Retail Packaged Part MTD-490-900-Y075

...
8
REVERSE HARNESS MTD-925-06167

...
9
CLUTCH HARNESS 11" MTD-725-06173

...
10
PTO SWITCH (YELLOW KNOB) MTD-925-3233A

...
11
SHOULDER SCREW MTD-738-04237A
...
...
...
