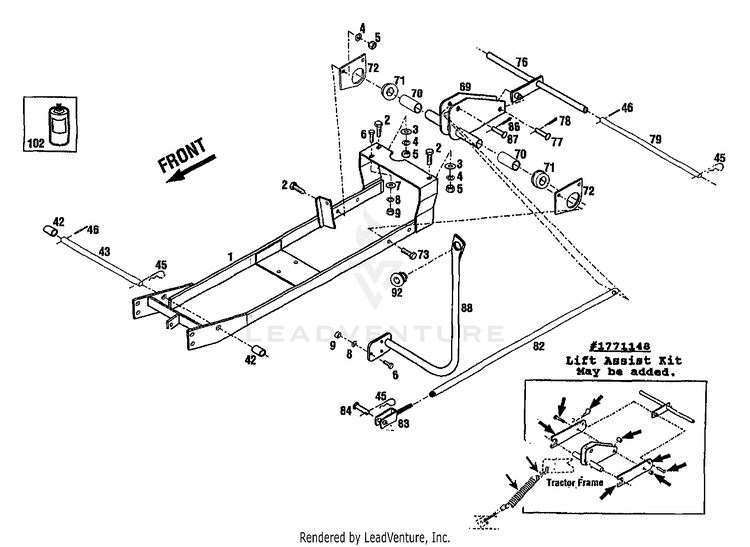

Troy-Bilt 14078 SUBFRAME Kit Tractor

Model: 14078 SUBFRAME KIT

Save Part Not Listed?
product name

SUBFRAME KIT

...
...
xx
SCR-HH 1/2 MTD-1100056
...
xx
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
xx
CLEVIS PIN .5X2.25 MTD-1708336
...
xx
HITCH PIN MTD-1723478
...
xx
Hex Lock Nut, 1/2-13 MTD-712-3022
...
xx
SPACER MTD-1739934
...
xx
S-HOOK MTD-1771302
...
xx
LIFT BRACKET MTD-1770999001
...
xx
LIFT ASSIST KIT MTD-1771148
...
1
ASSM-SUBFR MTD-1825496
...
2
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
3
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
4
L-Wash. 3/8" I.D." MTD-736-0169
...
5
HEX NUT 3/8-16 GR5 MTD-712-3017
...
6
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
7
FLAT WASHER MTD-736-0275
...
8
LOCK WASHER 5/16 MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
42
SPACER MTD-1825497
...
43
SUPPORT ROD (14078 MTD-1825498
...
45
HITCH PIN MTD-1723478
...
46
Pin, Spring, 3/16 x 1.25 MTD-915-0246
...
69
LIFT ROD W MTD-1825499
...
70
TUBE-TORQU MTD-1825500
...
71
BEARING-1 MTD-1825501
...
72
PLATE-END MTD-1825502
...
73
UNKNOWN MTD-NA
...
76
ASSM-LIFT (14078) MTD-1825503
...
77
CLEVIS PIN MTD-1706419
...
78
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
79
ROD-LIFT (14078) MTD-1825504
...
82
LIFT SHAFT MTD-1825505
...
83
TURNBUCKLE MTD-1825506
...
84
CLEVIS PIN MTD-1713553
...
86
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
87
CLEVIS PIN MTD-1720869
...
88
HANDLE-SUPPORT MTD-1825507
...
92
GROMMET MTD-1825463
...
?101
KIT-SHIFT MTD-1768809
...
102
PAINT-POWDER BLACK NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0637A
