Troy-Bilt 14070 Cart Tractor

Model: 14070 CART

Save Part Not Listed?
product name

CART, GRASS COLLECTOR

...
...
1
BOX MTD-1823038
...
2
TUBE-SUPPORT MTD-1823039
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
SPACER MTD-1823040
...
5
FLAT WASHER MTD-736-0275
...
6
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
7
COVER MTD-1823041
...
8
SUPPORT ROD MTD-1823042
...
9
ROD-FRAME MTD-1823043
...
10
ROD-STRAIG MTD-1823044
...
11
Pin-Internal Cotte MTD-714-3020
...
12
STRAP MTD-1823046
...
13
HANDLE-LATCH MTD-1823047
...
14
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
15
WASHER MTD-1705905
...
18
BRACKET-U MTD-1823048
...
19
SCR-5/16-1 MTD-1734214
...
20
LOCK WASHER 5/16 MTD-936-0119
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
HANDLE-LIF MTD-1823049
...
23
SCR-TRUSS MTD-1185894
...
24
Lock Washer MTD-936-0329
...
25
NUT-HEX 1/4-20 ZP MTD-1186229
...
26
FRAME MTD-1823050
...
27
Hex Cap Screw, 1/2-13 x 1.25 MTD-710-3032
...
28
Hex Lock Nut, 1/2-13 MTD-712-3022
...
29
WHEEL MTD-1823051
...
30
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
31
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
32
Hex Lock Nut, 3/8-16 MTD-712-3000
...
33
SLEEVE MTD-1823052
...
34
SLEEVE CLA MTD-1823053
...
35
PLATE-MOUNTING GRASSBAG MTD-1755902
...
37
CLEVIS PIN .5X1.25 MTD-1730851
...
39
SPACER-.75 MTD-1730682
...
40
710-3067SC MTD-1100065
...
41
Hex Cap Screw, 1/2-13 x 1 (Grade 5) MTD-710-3131
...
42
Lock Washer, 1/2 MTD-736-0921
...
43
HEX NUT MTD-712-0206
...
44
SCREW MTD-1756356
...
45
NUT-HK 3 MTD-1120390
...
46
RING COTTER MTD-1751908

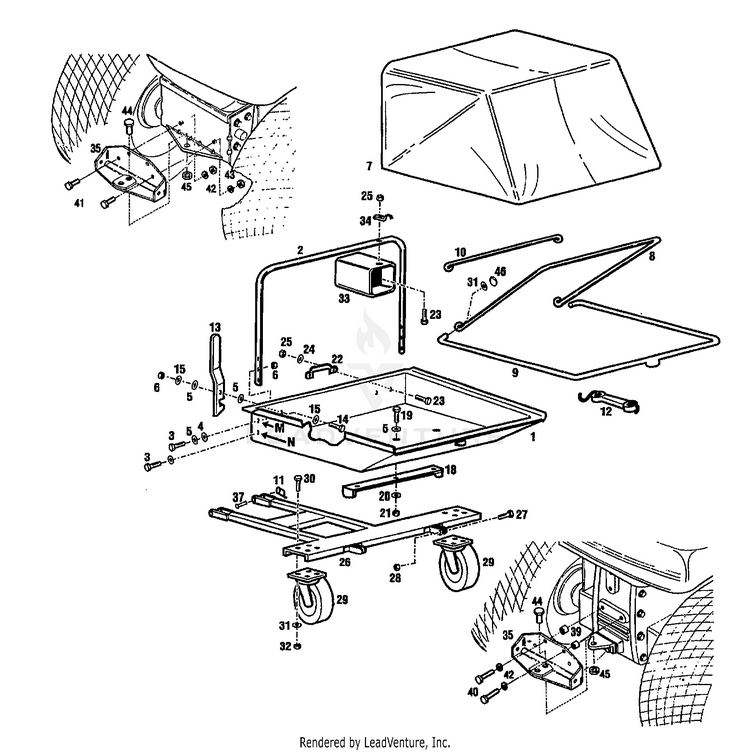

Schematic Image Zoomed
