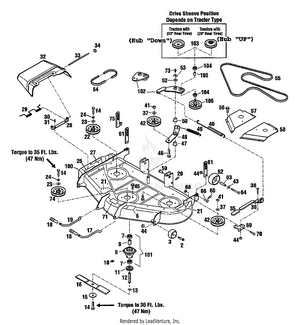

Troy-Bilt 14052 48" S.D. Center Mount Mower (S/N 140520100101) Tractor

Model: 14052 48"" S.D. MOWER (S/N 140520100101)

Save Part Not Listed?
product name

MOWER ATTACHMENTS

...
...
2
SCR-SHLDR 3/8-16 MTD-1763219
...
3
WHEEL ANTISCALP NLAUD MTD-1762138
...
6
DECAL BELT DRIVE MTD-1757419
...
7
Ball Bearing MTD-1185574P
...
8
SPACER MTD-1746869
...
9
Mower Spindle MTD-1769048099
...
10
Grease Fitting MTD-937-0146
...
11
BLADE SPACER MTD-1765029
...
12
SHAFT-SPINDLE MTD-1765028
...
13
RETAINING RING MTD-1185649
...
14
SCR-HH 1/2-14X1.00 MTD-1765196
...
15
WASHER-BELLEVILLE MTD-1765197
...
16
BLADE-CUTTER {14051} OPTIONAL HIGH-LIFT BLADES 1772170 (MODEL 14051) MTD-1765542
...
16
BLADE-CUTTER {14052} OPTIONAL HIGH-LIFT BLADES 1772171 (MODEL 14052) MTD-1765548
...
16
BLADE-LIFT {14051} OPTIONAL HIGH-LIFT BLADES 1765542 (MODEL 14051) MTD-1772170
...
16
BLADE 48" DECK OPTIONAL HIGH-LIFT BLADES 1765548 (MODEL 14052) MTD-1772171
...
17
ROD (LH) FRO MTD-1766052
...
18
FRONT LIFT ROD END MTD-1752554
...
19
FRONT LIFT ROD (RH) MTD-1766051
...
20
HITCH PIN MTD-1723478
...
21
DECAL-OPEI CAUTION MTD-1739687
...
22
SHEAVE MTD-1765209
...
23
WASHER FLAT MTD-1100265
...
24
Lock Washer, 7/16 MTD-736-0171
...
25
DECAL CUTTING LIN MTD-1744491
...
27
DECAL DANGER MTD-1763407
...
28
BRACKET HINGE MTD-1728005001
...
29
SPRING TORSION MTD-1756596
...
30
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
31
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
32
DEFLECTOR MTD-1755750
...
33
ROD MTD-1756760
...
34
Push Cap MTD-726-0100
...
35
GRIP MTD-1734591
...
36
ARM-SPRING ENGAGE MTD-1768752
...
36
ARM ENGAGE MTD-1771864
...
37
WASHER MTD-GW-20546
...
38
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
40
SPRING-BELT DRIVE MTD-1767862
...
40
SPRING-BELT DRIVE MTD-1771806
...
41
Hex Lock Nut, 1/2-13 MTD-712-3022
...
42
PULLEY-IDLER MTD-1752354
...
43
Flat Washer, .406 x 1.0 x .105 MTD-736-3052
...
44
Hex Lock Nut, 3/8-16 MTD-712-3000
...
45
SCREW-FLANGE LOCK MTD-1766984
...
46
BOLT CARRI MTD-1768878
...
47
BUSHING FLANGE MTD-1766091
...
48
ARM IDLER MTD-1767823
...
49
SPRING EXTENSION MTD-1771982
...
49
SPRING EXTENSION MTD-1771982
...
50
BEARING-FLANGE MTD-1761999
...
52
WASHER SHIM MTD-1762144
...
53
External Retainer Ring MTD-716-0111
...
54
BELT-V MTD-1772984
...
55
BELT-V {14051} MTD-1760959
...
55
BELT 1/2 x 109.55" MTD-1760960
...
56
SCREW MTD-1724492
...
57
COVER-BELT RH {14051} MTD-1765729001
...
57
COVER BELT (RH) MTD-1765659001
...
58
COVER BELT (LH) MTD-1768750001
...
58
COVER BELT (LH) MTD-1762102001
...
59
CLEVIS PIN MTD-1719367
...
61
WHEEL GAGE ADJ. MTD-1766189001
...
61
WHEEL GAGE ADJ. MTD-1766189001
...
62
Deck Wheel, 5" Dia. MTD-753-04856A
...
63
SPACER GAGE WHEEL MTD-1766342
...
64
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
65
Click Pin MTD-714-0145
...
66
PIN-CLEVIS .375 X .937 ZP MTD-1112587
...
68
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
69
BRKT-MOUNTING SPRING ARM MTD-1767999
...
69
BRACKET-MOUNT MTD-1768761
...
69
BRACKET MOUNT MTD-1771858
...
70
SCREW 5/16-18 MTD-710-04043
...
71
DECAL-LIFT ROD MTD-1768862
...
73
Fitting, Lube, 90ø 1/4-28 Tapper Thd MTD-737-3004
...
74
SHEAVE ASSEMBLY MTD-1771869
...
75
BAR-GAGE WHEEL {14051} MTD-1771560001
...
75
BAR-GAGE WHEEL {14052} MTD-1771560001
...
100
DECK-MOWER W/DECALS {14051} MTD-1767751
...
100
DECK-MOWER W/DECALS {14052} MTD-1767752
...
100
ASSM-MOWER BASE 42"S/D W/DECAL {14051} MTD-1771933
...
100
ASSM-MOWER BASE 42"S/D W/DECAL {14052} MTD-1771934
...
101
Mower Spindle MTD-1769048099
...
102
ARM-MOUNTING {14051/052} MTD-1766134001
...
102
ARM MOUNTING ASSEMBLY MTD-1772627001
...
103
PULLEY-DRIVE MTD-1766128
...
104
BALL BEARING MTD-941-0600
...
105
TUBE 140 MTD-1767804
...
106
PULLEY W/SHAFT MTD-1766137
...
?200
PAINT-POWDER BLACK ITEM NOT INCLUDED WITH UNIT, ORDER SEPARATELY. MTD-788-0637A
