Troy-Bilt 14038-02 29" Tiller Attachment (S/N 140380200101) Tractor

Model: 14038-02 29"" TILLER (S/N 140380200101)

Save Part Not Listed?
product name

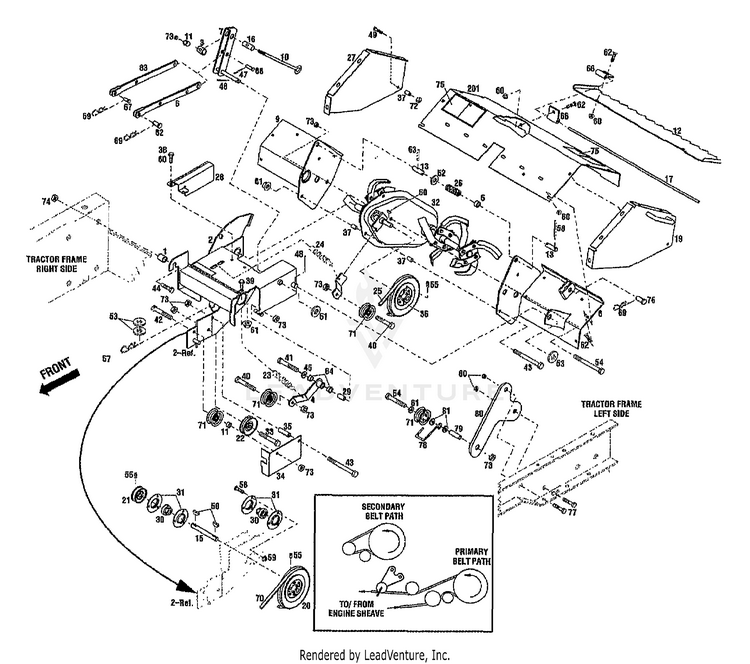

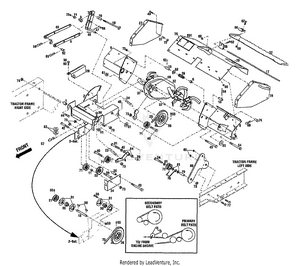

29" TILLER ATTACHMENT

...
...
1
SPACER MTD-1766328
...
2
HITCH MTD-1773420001
...
3
SPACER-1.0 MTD-1766430
...
?4
IDLER ARM MTD-1766433
...
5
SPACER-.875X.63X.5 MTD-1768780
...
6
ASSM-LINK MODELS: 13099-01, 13104-01, 13105-01, 13114-01, 13114-02, 13115-01 & 13115-02 MTD-1772981001
...
7
ARM-PIVOT MTD-1766443
...
?8
ASSM-LEFT SUPPORT MTD-1986344001
...
9
ASSM-RIGHT SUPPORT MTD-1986345001
...
10
PIVOT ROD MTD-1766453
...
11
SPACER-.625X.406X.563 MTD-1985164
...
12
SHIELD-TINE HOOD MTD-1766456001
...
13
PIN MTD-1766458
...
15
SHAFT-DRIV MTD-1766476
...
16
PIN MTD-1766477
...
17
HINGE PIN MTD-1766478
...
19
COVER-TINE HOOD LH MTD-1767805001
...
20
PULLEY 6 D MTD-1767832
...
21
PULLEY 2.5 MTD-1767833
...
22
PULLEY-IDL MTD-1767834
...
23
EXTENSION SPRING MTD-1767843
...
24
EXTENSION SPRING MTD-1767844
...
25
BELT MTD-1767848
...
26
COMPRESSION SPRING MTD-1767851
...
27
COVER-TINE HOOD RH MTD-1767872001
...
26
BELT COVER MTD-1767928001
...
29
SPACER-.62 MTD-1767932
...
30
BALL BEARING MTD-1767942
...
31
BEARING-FLANGE MTD-1767944
...
32
TRANSMISSION ORDER TRANSMISSION PARTS SEPARATELY. MTD-NA
...
33
Hex Cap Screw 3/8-16 x 1.75 MTD-710-0347
...
34
SHIELD-DEB MTD-1773421001
...
35
TUBE-SPACE MTD-1773426
...
36
PULLEY-7" DIA MTD-1985139
...
37
SPACER-.375X.812 MTD-1985165
...
38
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-1100044
...
39
SCREW MTD-1186345
...
40
SCREW 3/8-16 x 1.50 MTD-710-0520
...
41
Hex Cap Screw, 3/8-16 x 2.00 MTD-710-3144
...
42
Screw 3/8-16 X 2.25 Gr5 MTD-710-3011
...
43
SCR-HH 3/8 MTD-1100770
...
44
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
45
Flat Washer, .406 x 1.0 x .105 MTD-736-3052
...
?46
Cotter Pin MTD-714-0474
...
47
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
48
COTTER PIN MTD-1100351
...
49
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
?50
KEY-WOODRUFF .188X.75 MTD-914-0868
...
51
Flat Washer,.510 x 1.00 MTD-736-0326
...
52
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
53
WASHER-1.5 MTD-1107387
...
54
BOLT 3/8-16X5 MTD-1186450
...
55
3CR-SET HX MTD-1182554
...
?56
Spirol Pin, 1/4 x 2.0 MTD-715-0121
...
57
PIN-HITCH .149DIA MTD-1185590
...
58
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
59
NUT-HF/LK 1/4-20 ZP MTD-1186389
...
60
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
61
NUT-HFLK 3/8-16 ZP MTD-1186393
...
62
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
63
Roll Pin MTD-915-0249
...
64
FLANGE BUSHING MTD-1714299
...
66
HOOD HINGE MTD-1718196
...
67
CLEVIS PIN .5X1.06 MTD-1708125
...
68
CLEVIS PIN .5X1.75 ZP MTD-1722409
...
69
HITCH PIN MTD-1723478
...
70
V-BELT MTD-1726723
...
71
PULLEY-IDL MTD-1729440
...
72
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
73
Hex Lock Nut, 3/8-16 MTD-712-3000
...
74
Hex Lock Nut, 1/2-13 MTD-712-3022
...
75
DECAL-OPEI CAUTION MTD-1739687
...
76
Pin, Clevis, 5/8 Dia X 1.34 Lg MTD-711-0654
...
77
SCREW 5/16-18 MTD-710-04043
...
78
GUIDE-BELT MTD-1772534
...
79
IDLER SPACER MTD-1773416
...
80
SUPPORT-IDLER MTD-1773415001
...
81
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
?82
CLEVIS PIN MTD-1186418
...
83
LINK MODELS: 13039-01, 13040-01, 13046-01, 13047-01, 13047-02, 13092-01, 13094- 01 & 13097-01 MTD-1766441001
...
201
HOOD W/DECALS MTD-1768767
...
?301
PAINT-POWDER BLACK NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0637A

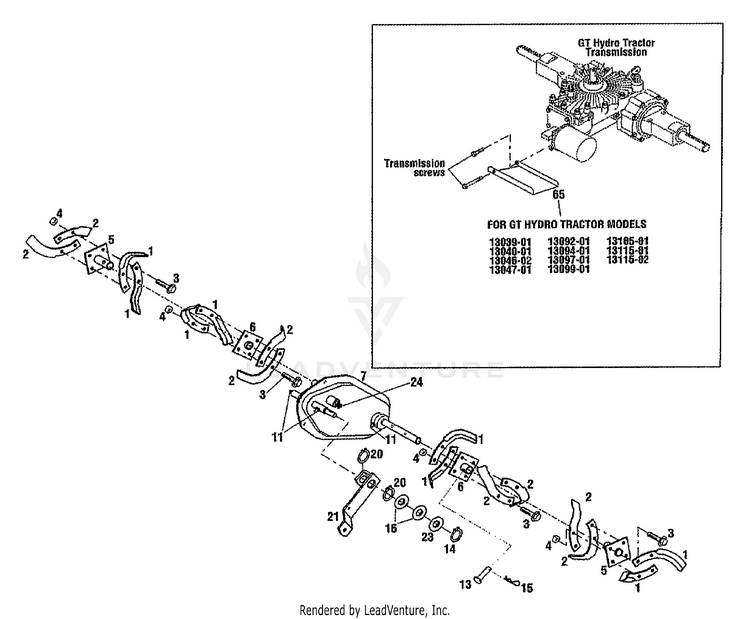

TRANSMISSION ASSEMBLY

...
...
1
BOLO TINE MTD-GW-1270-1
...
2
BOLO TINE MTD-GW-1270-2
...
3
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
4
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
5
OUTER HUB MTD-1767940
...
6
INNER HUB MTD-1767937
...
7
ASSM-TRANSMISSION MTD-1767910
...
?8
Clevis Pin, 3/8 x 1.75 MTD-711-0415
...
?9
HITCH PIN MTD-1817091
...
11
Grease Fitting MTD-937-0146
...
13
Clevis Pin, 3/8 x 1.75 MTD-711-0415
...
14
RING-HEAVY MTD-1185668
...
15
HITCH PIN MTD-1817091
...
16
WASHER-1.115X.637X.06 MTD-1715301
...
20
RING-SNAP MTD-1736561
...
21
ARM-IDLER MTD-1773199
...
23
THRUST WASHER BRON MTD-1712763
...
24
Fitting, Lube, 90ø 1/4-28 Tapper Thd MTD-737-3004
...
65
SHIELD MTD-1768877001
...
?200
CAST IRON TINE HOLDER KIT NOT SHOWN. NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-1901118A
...
?201
TINE-KITCUSTOM TIL NOT SHOWN. NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-GW-10802
...
?301
PAINT-POWDER BLACK NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0637A
