Troy-Bilt 14030 48" R.D. Center Mount Mower (S/N 140300100101) Tractor

Model: 14030 48"" R.D. MOWER (S/N 140300100101)

Save Part Not Listed?
product name

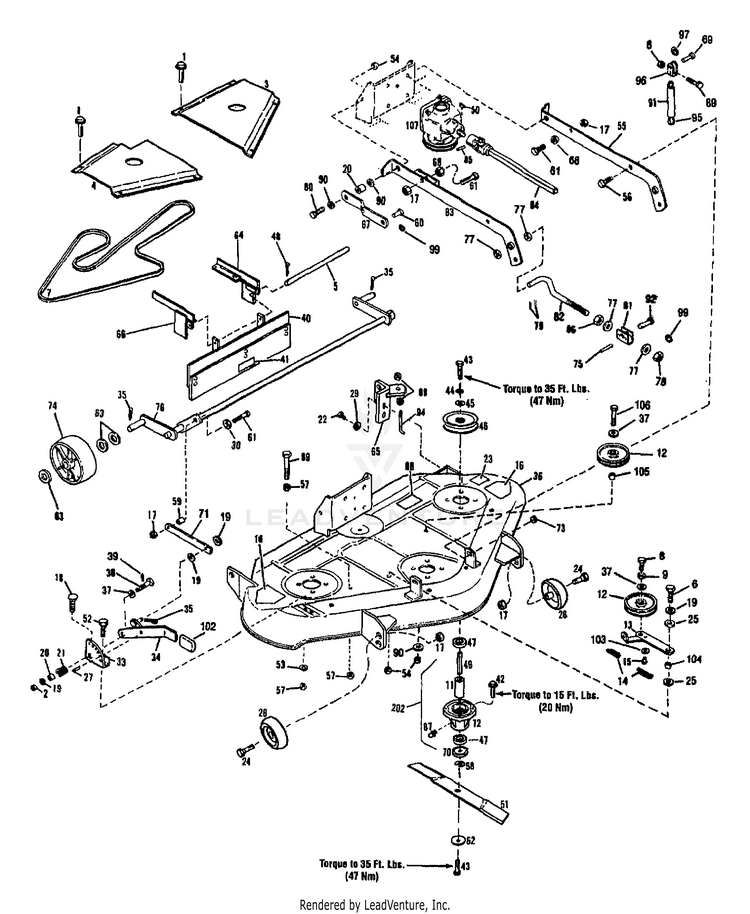

48" R.D. CENTER MOUNT MOWER

...
...
1
SCREW MTD-1724492
...
2
HEX NUT/JA MTD-1185496
...
3
COVER BELT (LH) MTD-1762137001
...
4
COVER BELT (RH) MTD-1765659001
...
5
ROD MTD-1735872
...
6
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
7
BELT-V MTD-1750842
...
8
HEX SCREW, 1/2-20 x 1-1/4 MTD-1100015
...
9
Lock Washer, 1/2 MTD-736-0921
...
11
SPACER MTD-1746869
...
12
PULLEY-IDLER MTD-1752354
...
13
ARM ASSEMBLY. IDLER MTD-1724923
...
14
SPRING EXTENSION MTD-1746769
...
15
BUTTON WEAR MTD-1724924
...
16
DECAL-OPEI CAUTION MTD-1739687
...
17
Hex Lock Nut, 3/8-16 MTD-712-3000
...
18
SCREW-CARR MTD-1186098
...
19
Flat Washer,.510 x 1.00 MTD-736-0326
...
20
SPACER MTD-1715387
...
21
SPRING MTD-1716583
...
22
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
23
DECAL WARNING MTD-1745198
...
24
SCR-SHLDR 3/8-16 MTD-1763219
...
25
WASHER THR MTD-1724929
...
26
WHEEL ANTISCALP NLAUD MTD-1762138
...
27
PIN-.312X. MTD-1733103
...
29
Flat Washer, .406 x 1.0 x .105 MTD-736-3052
...
30
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
33
QUADRANT MTD-1724843
...
34
LEVER-HEIGHT ADJUST MTD-1753976001
...
35
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
36
ASSM-BASE W/DECALS 48" RD MTD-1764345
...
37
WASHER MTD-GW-20546
...
38
SCREW MTD-1731547
...
39
PIN-ROLL MTD-1185256
...
40
GUARD ASSEMBLY MTD-1736945
...
41
DECAL WARNING MTD-1745197
...
42
SCREW-FLANGE LOCK MTD-1766984
...
43
SCR-HH 1/2-14X1.00 MTD-1765196
...
44
Lock Washer, 7/16 MTD-736-0171
...
45
WASHER FLAT MTD-1100265
...
46
ASSM-SHEAVE DRIVE MTD-1765210
...
47
Ball Bearing MTD-1185574P
...
48
PIN COTTER MTD-1100362
...
49
SHAFT-SPINDLE MTD-1765028
...
50
KEY-WOODRUFF .188X.75 MTD-914-0868
...
51
BLADE-CUTTER AVAILABLE HIGH LIFT BLADE - #1765549 MTD-1765548
...
52
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-1100044
...
53
FLAT WASHER .385X.870X.090 MTD-736-0262
...
54
Hex Lock Nut, 1/2-13 MTD-712-3022
...
55
SUPPORT-DECK (LH) MTD-1764838001
...
56
Hex Flange Screw, 3/8-16 MTD-710-04042
...
57
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
58
RETAINING RING MTD-1185649
...
59
SPACER MTD-1738160
...
60
Pin, Clevis, 5/8 Dia X 1.34 Lg MTD-711-0654
...
61
SCREW 3/8-16 x 1.50 MTD-710-0520
...
62
WASHER-BELLEVILLE MTD-1765197
...
63
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
64
STOP-DISCHARGE GUARD RH MTD-1738074001
...
65
SUPPORT-SHAFT G MTD-1748097001
...
66
STOP-DISCHARGE GUA MTD-1738073001
...
67
LINK-DRAG MTD-1746169001
...
68
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
69
Clevis Pin, .375 x .969 MTD-711-04722
...
70
BLADE SPACER MTD-1765029
...
71
LINK-CONNECTING MTD-1738369
...
72
Mower Spindle MTD-1769048099
...
73
NUT-HFLK 3/8-16 ZP MTD-1186393
...
74
WHEEL GAGE MTD-1740569
...
75
Pin, Roll MTD-715-0150
...
76
SHAFT PIVO MTD-1748090001
...
77
Washer-Fl-.760Id X MTD-736-0188
...
78
NUT-HK 3 MTD-1120390
...
79
COTTER PIN MTD-1100351
...
80
710-3067SC MTD-1100065
...
81
BRACKET HITCH MTD-1746171001
...
82
LINK-HITCH MTD-1746170
...
83
SUPPORT-DECK (RH) MTD-1764839001
...
84
ASSM-DRIVESHAFT MTD-1760050
...
85
PIN-DRIVE MTD-1185376
...
86
Nut, Hex Jam, 3/4-10 GR5 MTD-712-0301
...
87
Grease Fitting MTD-937-0146
...
88
DECAL BELT DRIVE MTD-1757419
...
89
SCREW-HH MTD-1100808
...
90
FLAT WASHER MTD-1100257
...
91
CHAIN SLEEVE MTD-1755800
...
92
CLEVIS PIN .625 x 2.313 MTD-711-1626
...
94
BOLT-HOOK MTD-1742328
...
95
CHAIN MTD-1752129
...
96
CLEVIS MTD-1753009
...
97
RING COTTER MTD-1751908
...
98
Hex Lock Nut, 5/16-18 MTD-912-0158
...
99
Pin-Internal Cotte MTD-714-3020
...
102
GRIP-HANDLE MTD-1753978
...
103
WASHER-.505X.22X.05 MTD-1103959
...
104
BEARING SLEEVE MTD-1728030
...
105
SPACER MTD-1730681
...
106
HEX HEAD CAP SCREW MTD-1100067
...
107
ASSM-GEAR CASE MTD-1744918001
...
xx
PAINT-POWDER BLACK MTD-788-0637A
...
202
Mower Spindle MTD-1769048099
...
xx
BLADE 48" DECK MTD-1772171
