Troy-Bilt 14026 48" S.D. Center Mount Mower (S/N 140261199999) Tractor

Model: 14026 48"" S.D. MOWER (S/N 140261199999)

Save Part Not Listed?
product name

MOWER ATTACHMENT

...
...
1
BASE-MOWER 42" SD W/DECALS {14025} MTD-1772665
...
1
BASE-MOWER 48" SD W/DECALS {14026} MTD-1772666
...
2
SCREW MTD-1724492
...
3
LINK-DRAG MTD-1746169001
...
4
Pin, Clevis, 5/8 Dia X 1.34 Lg MTD-711-0654
...
6
BELT COVER MTD-1762216001
...
6
COVER BELT (LH) MTD-1762137001
...
7
SUPPORT-DECK (LH) MTD-1764838001
...
8
BRACKET HITCH MTD-1746171001
...
9
CLEVIS PIN .625 x 2.313 MTD-711-1626
...
10
WASHER FLAT MTD-1100265
...
11
LINK-HITCH MTD-1746170
...
12
710-3067SC MTD-1100065
...
13
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
14
Nut, Hex Jam, 3/4-10 GR5 MTD-712-0301
...
15
NUT-HK 3 MTD-1120390
...
16
Hex Flange Screw, 3/8-16 MTD-710-04042
...
17
NUT-HFLK 3/8-16 ZP MTD-1186393
...
18
SUPPORT-DECK (RH) MTD-1764839001
...
19
COVER-BELT RH {14025} MTD-1765729001
...
19
COVER BELT (RH) MTD-1765659001
...
20
DECAL-OPEI CAUTION MTD-1739687
...
21
DECAL DANGER MTD-1763407
...
22
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
23
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
24
SPRING TORSION MTD-1756596
...
25
DECAL CUTTING LIN MTD-1744491
...
?26
BRACKET HINGE MTD-1728005001
...
27
Push Cap MTD-726-0100
...
28
Hex Lock Nut, 3/8-16 MTD-712-3000
...
29
Washer, Spec .378 x 1.0 x .125 Thk MTD-936-0206
...
30
ROD MTD-1756760
...
31
DEFLECTOR MTD-1755750
...
?32
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
33
Flat Washer,.510 x 1.00 MTD-736-0326
...
33
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
34
CASTER WHEEL MTD-734-04005
...
34
CASTER WHEEL MTD-734-04005
...
35
LINK-CONNE MTD-1764633001
...
35
LINK-CONNE MTD-1767666001
...
36
SCREW 3/8-16 x 1.50 MTD-710-0520
...
37
SPACER MTD-1738160
...
38
PIVOT SHAFT ASSY MTD-1772740001
...
38
SUPPORT ASSM-WHEEL MTD-1772751001
...
39
Grease Fitting MTD-937-0146
...
40
SHEAVE ASSY. MTD-1171870
...
41
COTTER PIN MTD-1100351
...
42
Washer-Fl-.760Id X MTD-736-0188
...
43
BOLT SHOUL MTD-1772735
...
45
SCREW-HH MTD-1100808
...
46
ASSM-GEAR CASE MTD-1744918001
...
47
DECAL BELT DRIVE MTD-1757419
...
48
BELT {14025} MTD-1754702
...
48
BELT-V {14026} MTD-1750842
...
49
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
50
SUPPORT-SHAFT G MTD-1748097001
...
51
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
52
BOLT-HOOK MTD-1742328
...
53
Pin-Internal Cotte MTD-714-3020
...
54
SCREW-FLANGE LOCK MTD-1766984
...
55
SHAFT-SPINDLE MTD-1765028
...
?56
KEY-WOODRUFF .188X.75 MTD-914-0868
...
57
ASSM-SHEAVE DRIVE MTD-1765210
...
58
Ball Bearing MTD-1185574P
...
59
BLADE-LIFT {14025} MTD-1772170
...
59
BLADE 48" DECK MTD-1772171
...
60
RETAINING RING MTD-1185649
...
61
WASHER-BELLEVILLE MTD-1765197
...
62
SCR-HH 1/2-14X1.00 MTD-1765196
...
63
BLADE SPACER MTD-1765029
...
64
Mower Spindle MTD-1769048099
...
65
SPACER MTD-1746869
...
66
PULLEY-IDLER MTD-1752354
...
67
WASHER THR MTD-1724929
...
68
WHEEL ANTISCALP NLAUD MTD-1762138
...
69
SCR-SHLDR 3/8-16 MTD-1763219
...
71
Hex Lock Nut, 1/2-13 MTD-712-3022
...
72
PIVOT SCRE MTD-1762882
...
73
ROD-ADJUST MTD-1761847
...
74
Lock Washer, 1/2 MTD-736-0921
...
75
IDLER ARM MTD-1752355
...
75
ARM ASSEMBLY. IDLER MTD-1724923
...
?76
BUTTON WEAR MTD-1724924
...
77
SPRING EXTENSION MTD-1746769
...
78
SPACER-HANDLE MTD-1762886
...
79
Flat Washer,.510 x 1.00 MTD-736-0326
...
82
ASSM-ADJ BRKT MTD-1767662001
...
83
ASSM-ADJ ARM MTD-1767664001
...
85
DRIVE PIN, 3/16 x 1 MTD-1120210
...
86
WASHER MTD-GW-20546
...
87
HANDLE-HEIGHT ADJ MTD-1754149
...
88
Pin, Roll MTD-715-0150
...
89
DECAL-HEIGHT ADJUS MTD-1764635
...
92
Lock Washer, 7/16 MTD-736-0171
...
95
KIT-LIFT C MTD-1754243
...
96
Clevis Pin, .375 x .969 MTD-711-04722
...
97
RING COTTER MTD-1751908
...
?98
PIN-DRIVE MTD-1185376
...
99
ASSM-DRIVESHAFT MTD-1760050001
...
100
FLAT WASHER MTD-1100257
...
101
SPACER MTD-1730681
...
102
HEX HEAD CAP SCREW MTD-1100067
...
103
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
104
BEARING SLEEVE MTD-1728030
...
?105
WASHER-.505X.22X.05 MTD-1103959
...
106
HEX SCREW, 1/2-20 x 1-1/4 MTD-1100015
...
107
WHEEL GAGE MTD-1740569
...
108
WASHER MTD-1772736
...
109
FLAT WASHER MTD-936-0456
...
110
HEX NUT/JA MTD-1185496
...
111
BOLT MTD-1772754
...
112
PAINT-POWDER BLACK MTD-788-0637A

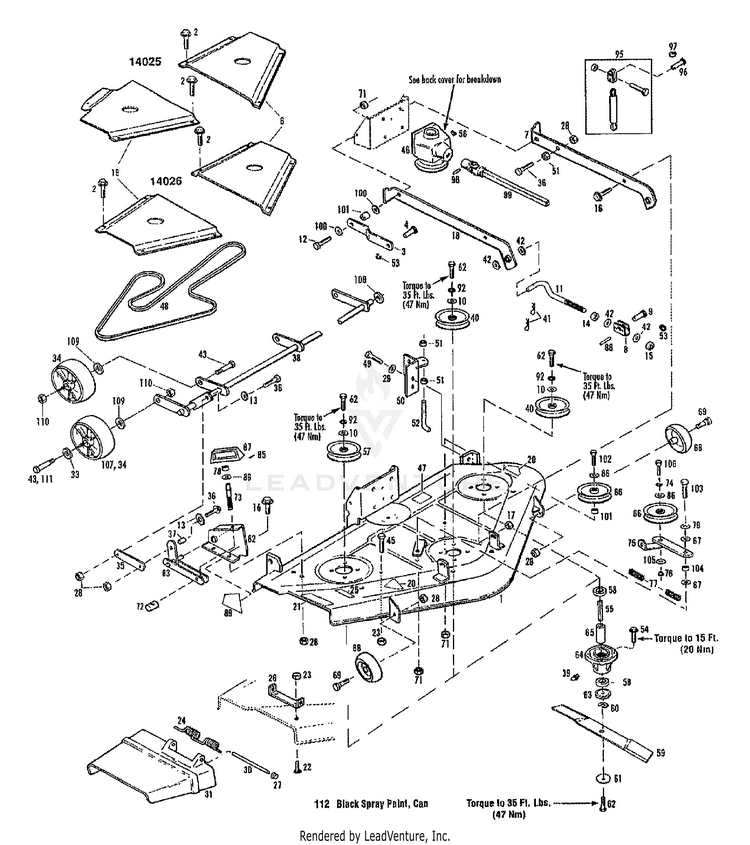

Schematic Image Zoomed
