Troy-Bilt 14024 48" S.D. Center Mount Mower (S/N 140240100101) Tractor

Model: 14024 48"" S.D. MOWER (S/N 140240100101)

Save Part Not Listed?
product name

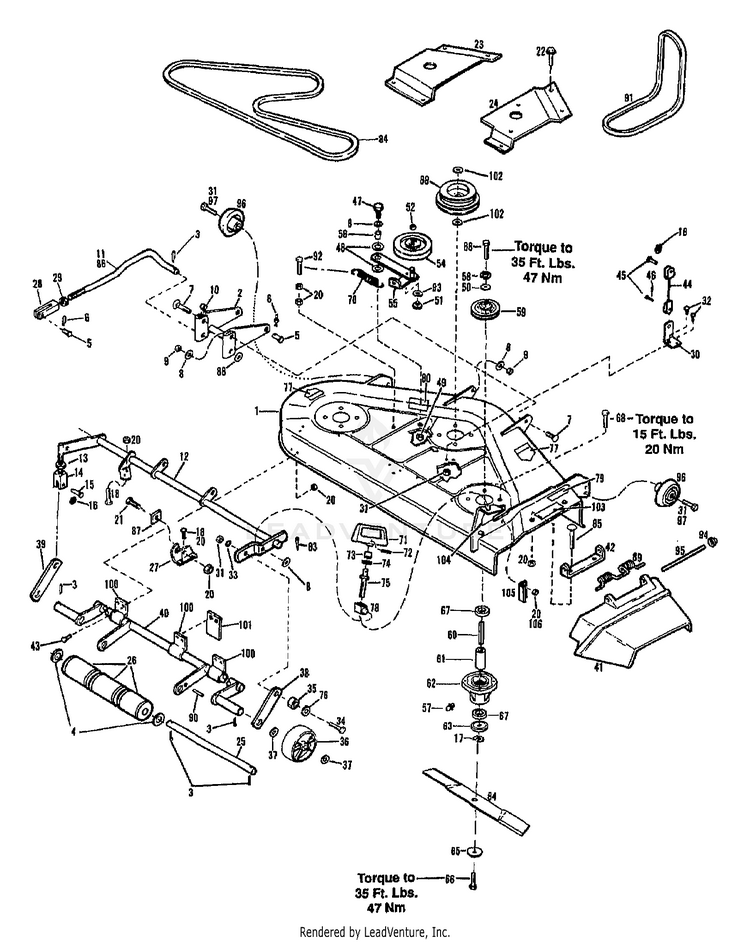

48" S.D. CENTER MOUNT MOWER

...
...
1
ASSM-BASE W/DECALS 48" MTD-1764706
...
2
LINK-DRAG MTD-1752824001
...
3
COTTER PIN MTD-1100351
...
4
Washer-Fl-.760Id X MTD-736-0188
...
5
Pin, Clevis, 5/8 Dia X 1.34 Lg MTD-711-0654
...
6
Pin-Internal Cotte MTD-714-3020
...
7
BOLT-CAR 1 MTD-1186184
...
8
Flat Washer,.510 x 1.00 MTD-736-0326
...
9
HEX NUT/JA MTD-1185496
...
10
SLEEVE BEARING MTD-1728121
...
11
ROD-TIE LH MTD-1739392
...
12
SHAFT-ADJUSTMENT MTD-1764376001
...
13
Jam Nut, 5/8-18 MTD-712-3056
...
14
ROD-END MTD-1731772
...
15
CLEVIS PIN MTD-1890227
...
16
RING COTTER MTD-1751908
...
17
RETAINING RING MTD-1185649
...
18
BOLT-CARR MTD-1186099
...
20
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
21
Hex Cap Screw 5/16-18 x .875 MTD-710-3038
...
22
SCREW MTD-1724492
...
23
COVER BELT (LH) MTD-1762137001
...
24
COVER BELT (RH) MTD-1765659001
...
25
AXLE-ROLLER MTD-1738111
...
26
ROLLER MTD-1765851
...
27
SUPPORT ROD MTD-1728646001
...
28
ROD END MTD-1714573
...
29
Nut, 5/8 Jam Type 5 MTD-712-3015
...
30
LIFT BRACKET MTD-1728007001
...
31
Hex Lock Nut, 3/8-16 MTD-712-3000
...
32
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
33
L-Wash. 3/8" I.D." MTD-736-0169
...
34
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
35
SPACER MTD-1738160
...
36
WHEEL GAGE MTD-1740569
...
37
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
38
LINK-CONNECTING RH MTD-1742421001
...
39
LINK-CONNECTING LH MTD-1742422001
...
40
ASSM-PIVOT SHAFT MTD-1759217001
...
41
DEFLECTOR MTD-1755750
...
42
BRACKET HINGE MTD-1728005001
...
43
Hex Screw, 5/16-18 x 1.00 MTD-710-0376
...
44
CABLE-LIFT MTD-1728672P
...
45
PIN-CLEVIS .375 X .937 ZP MTD-1112587
...
46
Cotter Pin, 3/32 x .75 MTD-914-0507
...
47
Hex Cap Screw, 1/2-13 x 1.5 MTD-710-3181
...
48
WASHER THR MTD-1724929
...
49
Hex Lock Nut, 1/2-13 MTD-712-3022
...
50
WASHER FLAT MTD-1100265
...
51
BUTTON WEAR MTD-1724924
...
52
Nut, 1/2-20, Jam MTD-712-3029
...
54
PULLEY-IDLER MTD-1752354
...
55
ASSM-IDLER MTD-1728020
...
56
BEARING SLEEVE MTD-1728030
...
57
Grease Fitting MTD-937-0146
...
58
Lock Washer, 7/16 MTD-736-0171
...
59
ASSM-SHEAVE DRIVE MTD-1765210
...
60
SHAFT-SPINDLE MTD-1765028
...
61
SPACER MTD-1746869
...
62
Mower Spindle MTD-1769048099
...
63
BLADE SPACER MTD-1765029
...
64
BLADE-CUTTER HIGH LIFT BLADE AVAILABLE = #1765549. MTD-1765548
...
65
WASHER-BELLEVILLE MTD-1765197
...
66
SCR-HH 1/2-14X1.00 MTD-1765196
...
67
Ball Bearing MTD-1185574P
...
68
SCREW-FLANGE LOCK MTD-1766984
...
?69
SHEAVE-DRIVE MTD-1765545
...
70
SPRING EXTENSION MTD-1746769
...
71
HANDLE-HEIGHT ADJ MTD-1754149
...
72
DRIVE PIN, 3/16 x 1 MTD-1120210
...
73
SPACER-HANDLE MTD-1762886
...
74
WASHER MTD-GW-20546
...
75
ROD-ADJUST MTD-1761847
...
76
FLAT WASHER .385X.870X.090 MTD-736-0262
...
77
DECAL-OPEI CAUTION MTD-1739687
...
78
BLOCK-PIVO MTD-1764371
...
79
DECAL CUTTING LIN MTD-1744491
...
80
DECAL-BELT DRIVE MTD-1728982
...
83
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
84
V-BELT (100.75) MTD-1736903
...
85
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
86
ROD-TIE RH MTD-1738102
...
87
ROD-RETAINER MTD-1741586001
...
88
WASHER-1.5 MTD-1107387
...
89
SPRING TORSION MTD-1756596
...
90
ROLL PIN .125 x .7 MTD-1177625
...
91
BELT 1/2 x 83.25" (RAW EDGE) MTD-1741577
...
92
SCREW-HH MTD-1100808
...
93
WASHER-.505X.22X.05 MTD-1103959
...
94
Push Cap MTD-726-0100
...
95
ROD MTD-1756760
...
96
WHEEL ANTISCALP NLAUD MTD-1762138
...
97
SCR-SHLDR 3/8-16 MTD-1763219
...
100
SUPPORT-SHAFT MTD-1744024001
...
101
PLATE-DOUBLER MTD-1744023
...
102
WASHER-KEYED SPECI MTD-1762053
...
103
DECAL DANGER MTD-1763407
...
104
DECAL-HEIGHT ADJUS MTD-1762143
...
105
RETAINER-S MTD-1743726
...
106
SCR-HH 5/1 MTD-1103195
...
xx
BLADE 48" DECK MTD-1772171
