Troy-Bilt 14012 36" GRS Attachment Tractor

Model: 14012 36"" GRS ATTACHMENT

Save Part Not Listed?
product name

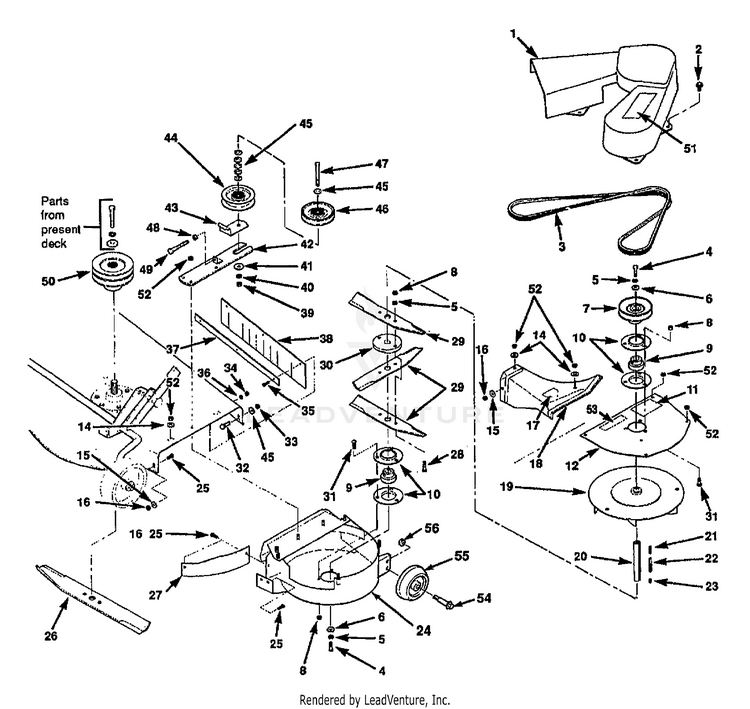

36" GRS ATTACHMENT

...
...
1
BELT COVER MTD-1761222
...
2
SCR-THRD F MTD-1185933
...
3
DRIVE BELT MTD-1761281
...
4
Hex Screw, 5/16-18 x 1.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0376
...
5
LOCK WASHER 5/16 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-936-0119
...
6
WASHER-.31 MTD-1729245
...
7
SHEAVE-DRIVEN MTD-1761234
...
8
NUT-TOP/LK 5/16-18 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1732499
...
9
BEARING-BA MTD-1735372
...
10
BEARING MTD-1800418
...
11
DECAL-BELT INSTALLATION MTD-1761238
...
12
COVER-HOUSING MTD-1761271001
...
14
FLAT WASHER MTD-736-0275
...
15
Flat Washer .271 ID x .630 OD MTD-736-3020
...
16
NUT-HF/LK 1/4-20 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1186389
...
17
DECAL-OPEI CAUTION MTD-1739687
...
18
DEFLECTOR- MTD-1762081
...
19
ASSM-FAN MTD-1761272001
...
20
SHAFT MTD-1761278
...
21
Square Key, 3/16 x 1.00 MTD-914-0105
...
22
Key, 3/16-2 (A) MTD-714-0139
...
23
KEY .188 SQ X.343 MTD-1761237
...
24
ASSM-HOUSING MTD-1761297001
...
25
SCREW 1/4-20 x .75 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0703
...
26
BLADE-MOWE MTD-1748302
...
27
BAFFLE-REAR MTD-1761290001
...
28
SCREW-HH COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1100808
...
29
BLADE-11.375" MTD-1761280
...
30
HUB-BLADE MTD-1761277
...
31
Carriage Bolt, 5/16-18 x .62 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0260A
...
32
Screw, Carriage, 3/8-16 x .75 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0389
...
33
NUT-HFLK 3/8-16 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1186393
...
34
Hex Nut, #10-24 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-712-0121
...
35
SCR-HFLK 1 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1186292
...
36
WASHER-LK COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1100240
...
37
STRIP-RETAINER MTD-1761233001
...
38
SHIELD-DEFLECTOR COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1761232
...
39
HEX NUT 3/8-16 GR5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-712-3017
...
40
L-Wash. 3/8" I.D." MTD-736-0169
...
41
WASHER-FLAT 1.25X.406X.179 MTD-1701055
...
42
ASSM-IDLER BRACKET MTD-1761282001
...
43
BRKT-ADJUSTMENT MTD-1761284
...
44
BACKSIDE PULLEY IDLER MTD-1756151
...
45
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
46
IDLER PULLEY MTD-1760097
...
47
SCREW-HH 3/8-16X3.25 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1911403
...
48
HEX NUT 5/16-18 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-712-3010
...
49
SCR-HHM 5/16-18X2.75 MTD-1744709
...
50
PULLEY-DRIVE DUAL GROOVE MTD-1761289
...
51
DECAL-IDENTIFICATION MTD-1761239
...
52
NUT-HFLK 5/16-18 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-712-04054
...
53
DECAL DANGER MTD-1763407
...
54
SCR-SHLDR 3/8-16 MTD-1763219
...
55
WHEEL ANTISCALP NLAUD MTD-1762138
...
56
Hex Lock Nut, 3/8-16 MTD-712-3000
