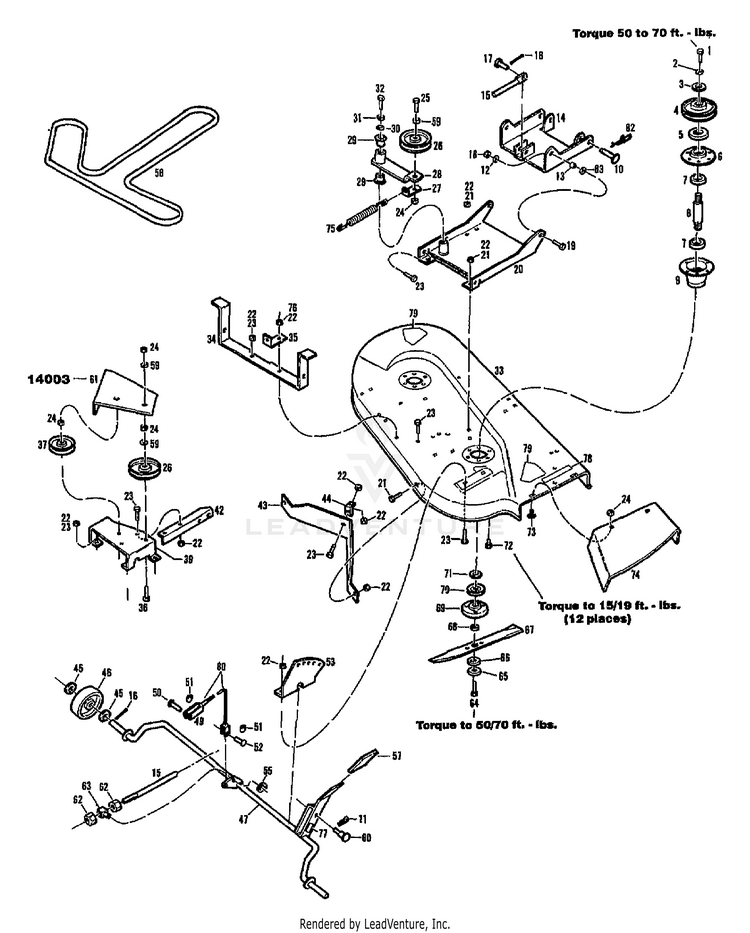

Troy-Bilt 14003 36" S.D. Center Mount Mower (S/N 140030100101) Tractor

Model: 14003 36"" S.D. MOWER (S/N 140030100101)

Save Part Not Listed?
product name

36" S.D. CENTER MOUNT MOWER

...
...
1
SCREW-HH 7/16-14X2.7 MTD-1747657
...
1
SCR-HH 7/1 MTD-1747658
...
2
Lock Washer, 7/16 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-736-0171
...
3
Flat Washer, .450 x 1.25 MTD-736-0322
...
4
ASSM-DRIVE SHEAVE MTD-1747650
...
4
ASSM-DRIVE SHEAVE MTD-1747651
...
5
BEARING-UPPER SHIELD MTD-1747642
...
6
HOUSING-ARBOR TOP MTD-1747644001
...
7
Ball Bearing MTD-1185574P
...
8
SHAFT-ARBOR 36 MTD-1754681
...
9
HOUSING-ARBOR BOTTOM MTD-1747645001
...
10
CLEVIS PIN .625 x 2.313 MTD-711-1626
...
11
HITCH PIN MTD-1723478
...
12
FLAT WASHER COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1100257
...
13
SPACER MTD-1730681
...
14
ASSM-MOWER SUPT MTD-1743720001
...
15
ROD-ADJUSTOR MTD-1747630
...
16
COTTER PIN COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1100351
...
17
CLEVIS PIN .5X1.75 ZP MTD-1722409
...
18
Hex Lock Nut, 1/2-13 MTD-712-3022
...
19
Hex Cap Screw, 1/2-13 x 1.25 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-3032
...
20
PLATE-MOWER SUPPORT MTD-1747610001
...
21
CARRIAGE BOLT 5/16-18 x .75 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0451
...
22
NUT-TOP/LK 5/16-18 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1732499
...
23
SCR-HHC 5/16-18X.75 GR 5 ZP COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1100044
...
24
Hex Lock Nut, 3/8-16 MTD-712-3000
...
25
Hex Cap Screw, 3/8-16 x 2.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-3144
...
26
BACKSIDE PULLEY IDLER MTD-1756151
...
27
GUIDE-BELT MTD-1747616
...
28
ASSM-IDLER ARM MTD-1747613
...
29
FLANGE BEARING NYLINER MTD-1722364
...
30
Washer, Flat, .411 x 1.25 x .100 MTD-736-0133
...
31
L-Wash. 3/8" I.D." COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-736-0169
...
32
HEX SCREW 3/8-16 X .75 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0216
...
33
ASSM-36" DECK W/DECALS MTD-1764141
...
34
STOP-BASE MTD-1752755001
...
35
SPRING-ANCHOR MTD-1747623
...
36
Screw 3/8-16 X 2.25 Gr5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-3011
...
37
IDLER PULLEY MTD-1762776
...
39
SUPT-IDLER/AXLE MTD-1747948001
...
42
BRKT-SUPPORT MTD-1747949001
...
43
BAFFLE MTD-1747631001
...
44
BRACKET-MOWER MTD-1747633
...
45
Washer-Fl-.760Id X MTD-736-0188
...
46
CASTER WHEEL MTD-734-04005
...
47
ASSM-SUPT WHEEL SHAFT MTD-1747625001
...
49
ASSEMBLY-YOKE BLACK MTD-1916253001
...
50
CLEVIS PIN MTD-1724632
...
51
RING COTTER MTD-1751908
...
52
PIN-CLEVIS .375 X .937 ZP MTD-1112587
...
53
QUADRANT MTD-1747620001
...
55
RETAINING RING MTD-1185649
...
57
GRIP-HANDLE MTD-1744029
...
58
BELT 1/2 x 105.12" MTD-1746823
...
59
Washer, Plain (flat) 3/8, S.A.E. COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-736-3050
...
60
PIN MTD-1751144
...
61
GUARD-BELT {14003} MTD-1748614001
...
62
Nut, 5/8 Jam Type 5 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-712-3015
...
63
BLOCK-PIVOT MTD-1743728
...
64
Screw, 7/16-14 x 1 MTD-1765196
...
65
WASHER-LK CONICAL .49 ID MTD-1747637
...
66
WASHER-SPLINED MTD-1747638
...
67
BLADE-MOWER MTD-1772335
...
68
COLLAR-ARB MTD-1748409
...
69
ADAPTER-BLADE MTD-1747639
...
70
SHIELD-GRA MTD-1747641
...
71
SHIM WASHER 1.39X. MTD-1747643
...
72
SCREW 5/16-18 x .750 MTD-710-1260A
...
73
SCR-CARR 3 MTD-1739656
...
74
DEFLECTOR- MTD-1747635001
...
75
SPRING-EXTENSION MTD-1756595
...
76
Hex Screw, 5/16-18 x 1.00 COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-710-0376
...
77
DECAL-HEIGHT ADJUSTOR {14003} MTD-1756884
...
78
DECAL DANGER MTD-1763407
...
79
DECAL-OPEI CAUTION MTD-1739687
...
80
MOWER DECK CABLE ASSEMBLY COMMON HARDWARE - PURCHASE LOCALLY (GRADE 5 OR BETTER WHERE APPLICABLE). MTD-1747321P
...
82
Pin-Internal Cotte MTD-714-3020
...
83
WASHER THR MTD-1724929
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-SPRA MTD-1900924
