Troy-Bilt 13AV609H063 (2001) Lawn Tractor

Model: 13AV609H063 (2001)

Back To Assemblies

Save Part Not Listed?
product name

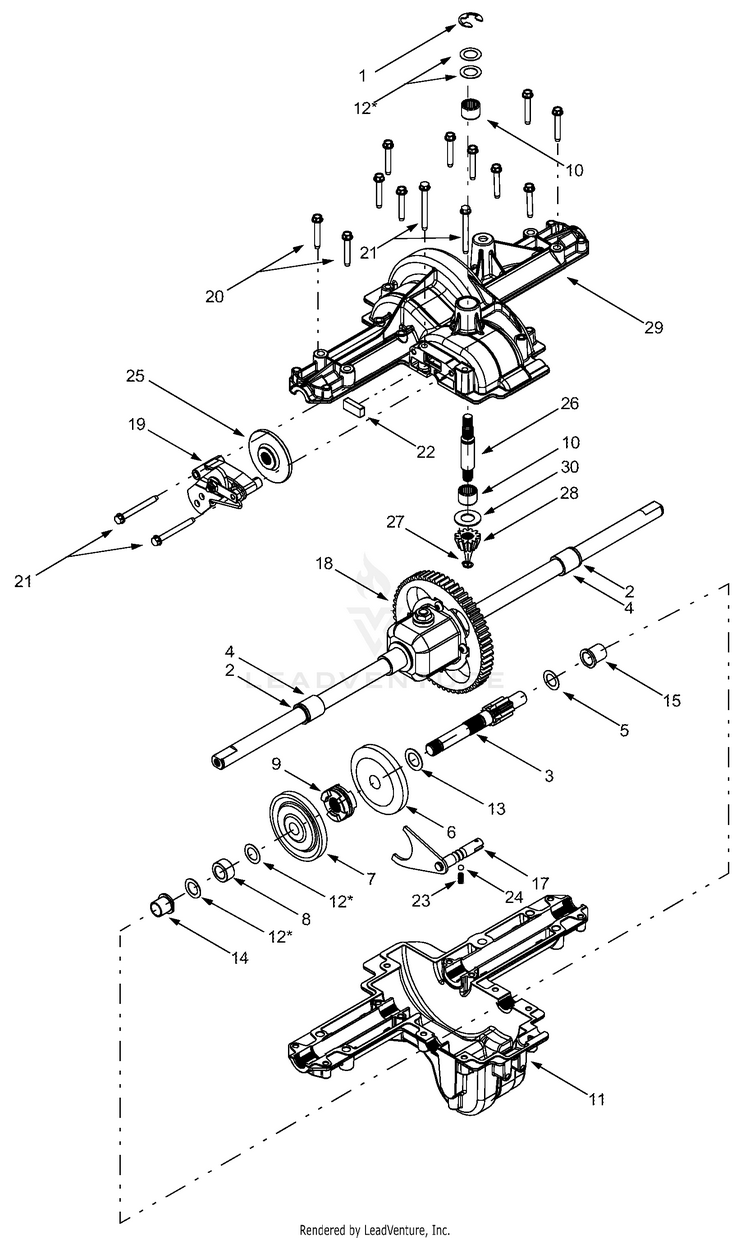

Differential Assembly

...
...
1
E-ring..75 MTD-716-0231
...
2
Seal, .75 x 1.0 x .125 MTD-921-0338
...
3
Drive Shaft MTD-711-1431
...
4
SLEEVE BEARING .75X1.00X1.00 MTD-741-05060
...
5
THRUST WASHER MTD-736-0495
...
6
42-tooth Bevel Gear MTD-917-1362
...
7
BEVEL GEAR .695" 42 TEETH Use Only for units built after 11/1/99 MTD-917-1363
...
7
CONTACT PARTS SOURCE RT99 Part is NLA, Units from 6/15/99-11/1/99 will need to order 918-0551A MTD-717-1422
...
8
SPACER-.633 x 1.0 x .513 MTD-750-1234
...
9
Clutch Collar MTD-718-0228
...
10
Needle Bearing, .625 x .875 MTD-941-0525
...
11
Lower Housing MTD-719-0394
...
12
Flat Washer, 5/8 x 1.0 x .030 (12A) Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-936-0336
...
12
Flat Washer, 5/8 x 1.0 x .040 (12B) Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-936-0337
...
12
Flat Washer, 5/8 x 1.0 x .020 (12C) Use applicable flat washer (12A, 12B or 12C) in this application allowing proper end-play as instructed in MTD's Service Manual. MTD-936-0349
...
13
Flat Washer, .70 x 1.125 x .031 MTD-736-0519
...
14
Flange Bearing, 5/8 x 3/4 x 3/4 MTD-941-0336
...
15
Flange Bearing, 5/8 x 3/4 x 15/16 MTD-941-0337
...
16
SPACER .635ID x 1. MTD-750-1238
...
17
DETENT SHAFT ASSEMBLY MTD-611-0133
...
18
DIFFERENTIAL ASSEMBLY 918-04097A MTD-918-04097A
...
19
Brake Assembly MTD-961-0006
...
20
Self-tapping Screw, 1/4-20 x 1.625 MTD-710-1325
...
21
Self-tapping Screw, 1/4-20 x 2.375 MTD-710-1206
...
22
Brake Pad MTD-917-0678
...
23
DETENT SHAFT SPRING MTD-932-05125
...
24
DETENT BALL .250 MTD-741-0862
...
25
Brake Disc MTD-761-0202
...
26
INPUT SHAFT MTD-711-1430
...
27
Retaining Ring, .437 MTD-716-0108
...
28
14-tooth Bevel Pinion Use Only for units built after 11/1/99 MTD-717-1464
...
28
12-TOOTH BEVEL PINION Part is NLA, Units from 6/15/99-11/1/99 will need to order 918-0551A MTD-717-1571
...
29
UPPER HOUSING KIT 953-04023 MTD-953-04023
...
30
Thrust Washer, .635 x 1.25 x .042 MTD-936-0337
