Troy-Bilt 13AV609H063 (2001) Lawn Tractor

Model: 13AV609H063 (2001)

Back To Assemblies

Save Part Not Listed?
product name

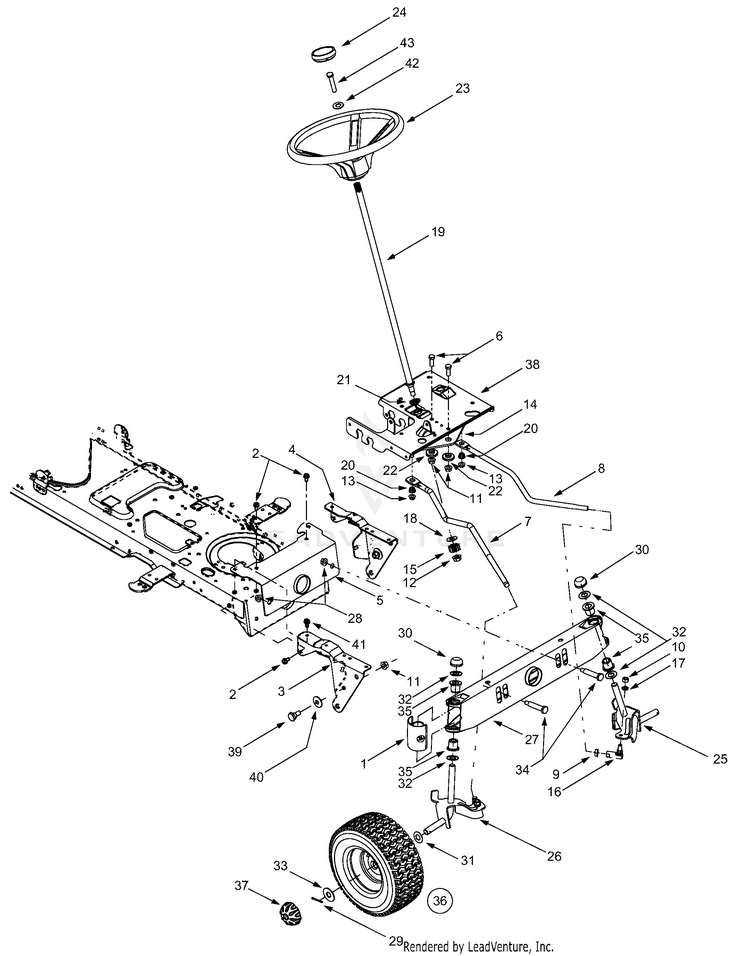

Steering and Front Axle

...
...
1
Pivot Bar End Cap w/ fitting MTD-931-1291A
...
2
Self-tapping Screw, 16-18 x .625 MTD-710-0604A
...
3
PIVOT SUPPORT BRACKET (RH) MTD-783-0726E
...
4
PIVOT SUPPORT BRACKET (LH) MTD-783-0727D
...
5
PIVOT BAR BRACKET (POWDER BLACK) MTD-783-0728B-0637
...
6
Hex Cap Screw, 3/8-16 x 1 (Grade 5) MTD-710-0514
...
7
DRAG LINK (RH) MTD-711-1408
...
8
DRAG LINK (LH) MTD-711-1409A
...
9
Nut, Jam, 7/16-20, Gr2 MTD-912-0240
...
10
Hex Nut, 3/8-24 (Grade 2) MTD-712-0241
...
11
Hex Flange Nut 3/8-16 MTD-912-0431
...
12
Flange Lock Nut, 7/16-20 MTD-712-0459
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
Steering Gear MTD-717-1550F
...
15
Steering Pinion Gear MTD-717-1554
...
16
Ball Joint, 7/16-20, Lock MTD-923-0448A
...
17
Lock Washer, 3/8 MTD-736-0169
...
18
Flat Washer, .51 x 1.12 x .06 MTD-736-3084
...
19
Steering Shaft, .625 OD x 24.4 MTD-738-1001A
...
20
BUSHING .380 ID MTD-941-0475
...
21
BRG:HEX FLNG 5/8 MTD-941-0656A
...
22
Shoulder Spacer MTD-738-0372B
...
23
Steering Wheel (4 Spoke) MTD-931-0027A
...
24
Steering Wheel Cap MTD-931-0220
...
25
LH Axle Assembly, .625 Diameter MTD-938-0019A
...
26
AXLE ASSEMBLY (RH) .625 DIA MTD-938-0020A
...
27
Pivot Bar Axle Assembly (stamped steel) MTD-683-0128B
...
28
Hex Flange Nut 3/8-16 MTD-912-0431
...
29
Cotter Pin MTD-714-0470
...
30
Push Cap, .625 MTD-726-0214
...
31
Flat Washer, .64 x 1.0 x .12 MTD-736-0162
...
32
Flat Washer, .64 x 1.24 x .06 MTD-736-0187
...
33
Flat Washer, .635 x 1.589 x .06 MTD-736-0285
...
34
SHOULDER SCREW .50 x 2.23 3/8-16 MTD-738-1011A
...
35
Hex Flg. Brg. .632 I.D. MTD-941-0659
...
36
Wheel Assembly Complete, 15 x 6 x 6 MTD-634-0105B-0911
...
36
RIM ASSEMBLY (OYSTER GREY) (Includes bearings & valve stem) (not shown) MTD-934-0172A-0662
...
36
Bearing, Flange, .76 ID w/ Lube Fitting (not shown) MTD-741-0990B
...
36
Bearing, Flange, .76 x 1.0 x 1.2 (not shown) MTD-741-0516B
...
36
TUBELESS VALVE (not shown) MTD-934-0255
...
36
Tire Only, Square Shoulder MTD-734-1731
...
37
HUB CAP MTD-731-2290B
...
38
Steering Support Bracket MTD-783-04612-0637
...
39
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
40
Bell Washer, .39 x 1.13 x .062 MTD-736-0331
...
41
Self-tapping Screw, 5/16-18 x .75 MTD-710-1260A
...
42
Bell Washer, .34 x .872 MTD-736-0242
...
43
Hex Bolt, 5/16-18 X 1 MTD-710-0643
