Troy-Bilt 13AV609H063 (2001) Lawn Tractor

Model: 13AV609H063 (2001)

Back To Assemblies

Save Part Not Listed?
product name

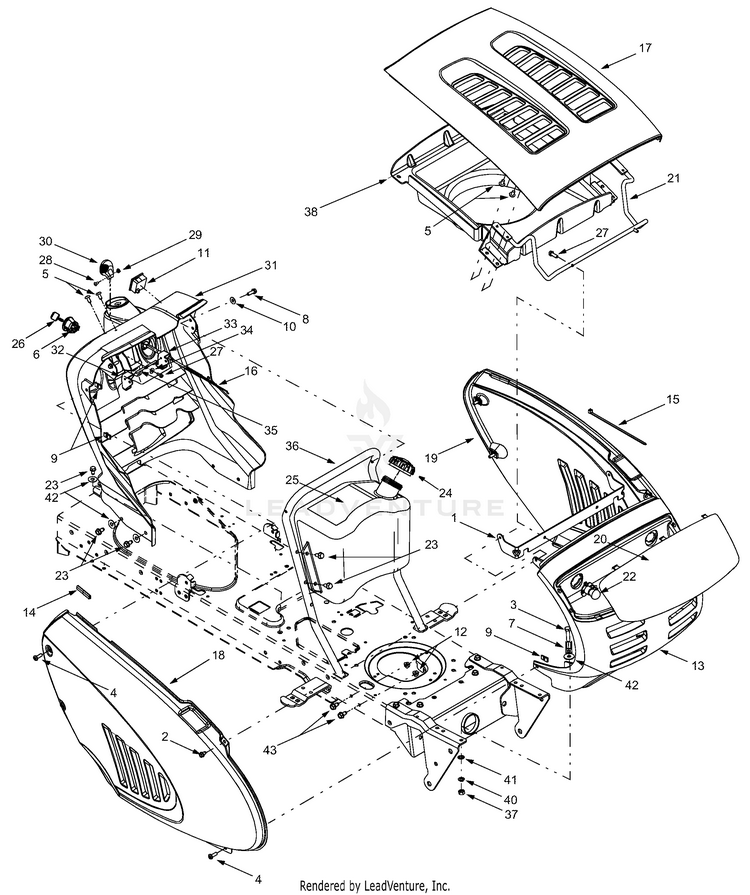

Hood & Side Panel Assemblies

...
...
1
GRILLE: SUPPORT BRACKET MTD-783-1346A-0637
...
2
Self-tapping Screw, 1/4-20 x .5 MTD-710-0599
...
3
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
4
Phillips Pan Screw, 1/4-20 x .75 MTD-710-0924
...
5
Truss Phillips Screw, 1/4-20 x .625 MTD-710-1017
...
6
IGNITION SWITCH MTD-925-1741
...
7
Clamp, 9/16 MTD-726-0272
...
8
Self-tapping Screw, 1/4-20 x .75 MTD-710-0642
...
9
U-type Speed Nut, 1/4-20 MTD-712-0292
...
10
SPRING WASHER BELL MTD-736-0270
...
11
INDICATOR MONITOR MTD-925-1976
...
12
HEX FLANGE NUT MTD-712-3004A
...
13
GRILLE MTD-731P2119A
...
14
Trim Strip, 4 MTD-731-0511
...
15
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0175
...
16
Choke Cable (Model G609G) MTD-946-1085A
...
17
HOOD:3 STYLE MTD-783-0783A
...
18
Side Panel, RH MTD-783-0784A
...
19
SIDE PANEL (LH) 9 STYLE MTD-783-0785
...
20
GRILLE MTD-731P2119A
...
21
HINGE ROD MTD-747-1162
...
22
Headlight Assembly MTD-925-0051
...
23
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
24
TANK CAP MTD-751-0603B
...
25
FUEL TANK (Model G609G) MTD-751-0658B
...
25
Fuel Tank, 2 Gallons (Model D609G) MTD-751-0659D
...
26
IGNITION KEYS MTD-925-1745A
...
26
IGNITION KEYS MTD-925-1745A
...
27
Self-tapping Screw, 1/4-15 x .75 MTD-710-0895
...
28
Truss Phillips Screw, #8-32 x .375 MTD-710-3217
...
29
Hex Nut, #8-32 MTD-712-0142
...
30
Throttle Control Knob MTD-731-1857
...
31
DASH PANEL MTD-731-2122C
...
32
Cruise Control Button MTD-731-2226
...
33
DASH BRAKE LEVER MTD-731-2227
...
34
Flat Washer, 9/32 x 1/2 x 1/16 MTD-736-0142
...
35
Brake/Cruise Pivot Rod MTD-747-1196
...
36
DASH SUPPORT TUBE MTD-749-1087A-0637
...
37
HEX NUT 5/16-18 MTD-712-3010
...
38
HOOD BELLOW (Model G609G) MTD-731-2270A
...
38
Hood Plenum (Model D609G) (Model D609G) MTD-NA
...
?39
Ratchet Clip MTD-726-3046
...
40
LOCK WASHER 5/16 MTD-936-0119
...
41
Speed Nut, .3125 MTD-726-0201
...
42
Flat Washer, .349 x 1.0 x .063 MTD-736-3078
...
43
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
xx
HEADLIGHT HARNESS (Not Shown) MTD-929-0469B
...
xx
Tractor Wire Harness (Not Shown) MTD-929-1071
