Troy-Bilt 13AQA1BL066 Super Bronco 50 XP (2021) Riding Lawn Mower

Model: 13AQA1BL066 Super Bronco 50 XP (2021)

Back To Assemblies

Save Part Not Listed?
product name

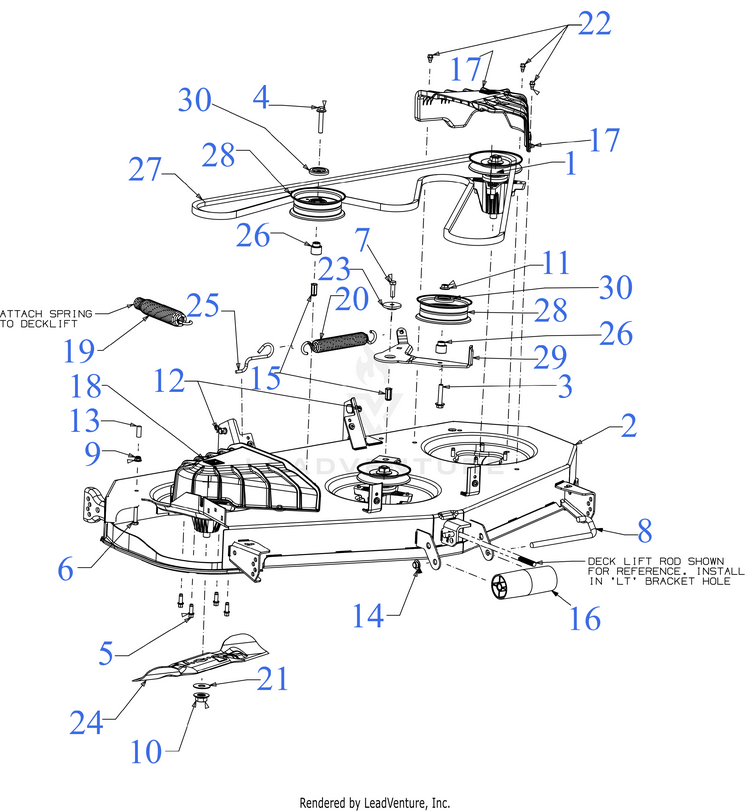

Deck

...
...
1
SPINDLE ASSEMBLY (5.37 DIA) (See Separate Breakdown) MTD-618P09255
...
2
50" FAB FLAT TOP DECK SHELL *CHOOSE COLOR WHEN ORDERING* MTD-683P06394B
...
3
SCREW 3/8-16 x 2.0 (2/1/23 & Before) MTD-710-06178
...
3
SCREW 3/8-16 x 2.0 GR 8 (2/1/23 & After) MTD-710-3096
...
3
FLAT WASHER .401X.88 Used with 710-3096 MTD-736-05080
...
4
SCREW 3/8-16 x 2.25 GR5 (4/1/23 & Before) MTD-710-06215
...
4
SCREW 3/8-16 x 2.25 GR5 (4/1/23 & After) MTD-710-3011
...
5
SCREW 5/16-18 x .875 MTD-710-06322
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
8
ROLLER PIN 1/2 x 7.31 MTD-711-06377
...
9
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
10
HEX NUT Models Built 9/20/21 & Before MTD-712-0417A
...
10
HEX FLANGE NUT 5/8-18 GR5 Models Built 9/20/21 & After MTD-712-07050
...
11
FLANGE LOCK NUT MTD-712-04217
...
12
BOW TIE COTTER PIN MTD-714-05005
...
13
VINYL CAP MTD-720-05075
...
14
PUSH CAP MTD-726-0299
...
15
NUT RIVET 3/8-16 MTD-728-05016
...
16
ROLLER MTD-731-05679B
...
17
SPINDLE COVER (LH) MTD-731-09969C
...
18
SPINDLE COVER (RH) MTD-731-25811
...
19
LIFT ASSIST SPRING (LARGE) MTD-732-05242C
...
20
SPRING 1.25" DIA x 8.5" LONG MTD-732-05360C
...
21
FLAT WASHER .635X1.585X.062 HDN MTD-736-3088
...
22
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
23
SHOULDER SPACER MTD-738-05082
...
24
17.271" BLADE (2IN1) (S MOUNT) MTD-742P05094
...
24
GENUINE FACTORY PARTS® 50" High-Lift Blade Set (S-Shaped Mount) 742P05094 Retail Packaged Part MTD-490-110-F193
...
24
17.271" XTREME BLADE (2IN1) (S MOUNT) MTD-742P05094-X
...
24
GENUINE FACTORY PARTS® 50" Xtreme® Blade Set (S-Shaped Mount) 742P05094-X Retail Packaged Part MTD-490-110-F204
...
24
17.271" LOW LIFT (S MOUNT) MTD-742-05094-L0606
...
24
GENUINE FACTORY PARTS® 50" Low-Lift Sand Blade Set (S-Shaped Mount) 742P05094-L MTD-490-110-F200
...
25
DECK SPRING HOOK MTD-747-05608A
...
26
SHOULDER SPACER MTD-748-05037B
...
27
V-BELT B SEC x 134 MTD-954-04077A
...
27
GENUINE FACTORY PARTS® 50" NX-15 Deck Belt 754-04077A, 954-04077A Retail Packaged Part MTD-490-501-F021
...
28
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
29
IDLER PIVOT BRACKET MTD-783E08309B
...
30
IDLER PULLEY CAP MTD-783-08389
