Troy-Bilt 13AM77BS223 Pony 42 (2021) Riding Lawn Mower

Model: 13AM77BS223 Pony 42 (2021)

Back To Assemblies

Save Part Not Listed?

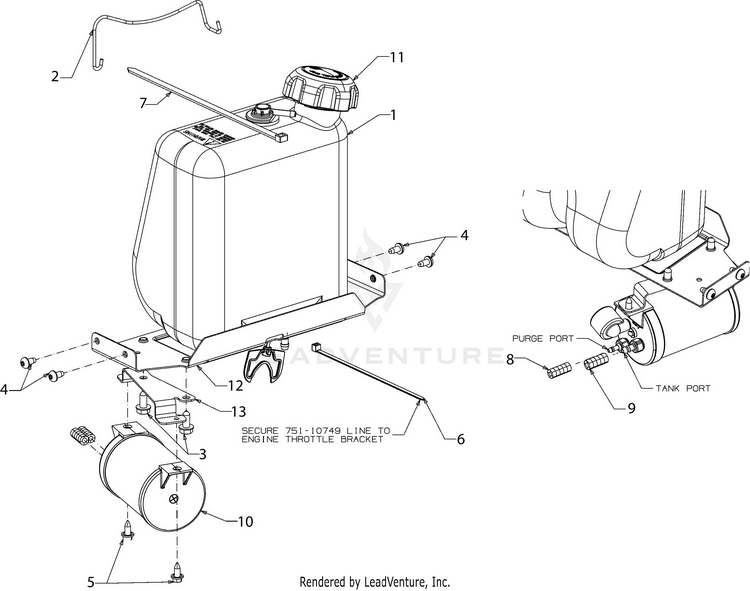

product name

Fuel Tank

...
...
1
FUEL TANK (1.36 GAL) MTD-651P08849
...
1
RUBBER GROMMET 23.0 ID x 35.5 OD (Not Shown) MTD-735-04081
...
1
FUEL TANK (1.36 GAL) (Not Shown) MTD-651P08849
...
1
ROLLOVER FUEL VALVE (Not Shown) MTD-751-12118
...
2
Hold Down Rod, Battery MTD-683-04448
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
SCREW 1/4-20 x .5 MTD-710-05070A
...
5
SCREW 1/4-20X.625 MTD-710-1652
...
6
7" CABLE TIE MTD-725-0157
...
7
CABLE TIE 36" MTD-726-0230
...
8
FUEL HOSE LO PERMEATION MTD-751-10749-30
...
9
FUEL HOSE LO PERMEATION 28" MTD-751-10750A-28
...
10
CARBON CANISTER MTD-951-12372A
...
11
Fuel Cap MTD-951-12426B
...
12
FUEL TANK SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-04584B
...
13
CARBON CANISTER BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-09337
