Troy-Bilt 12AV566N266 (2008) Self Propelled Mower

Model: 12AV566N266 (2008)

Save Part Not Listed?
product name

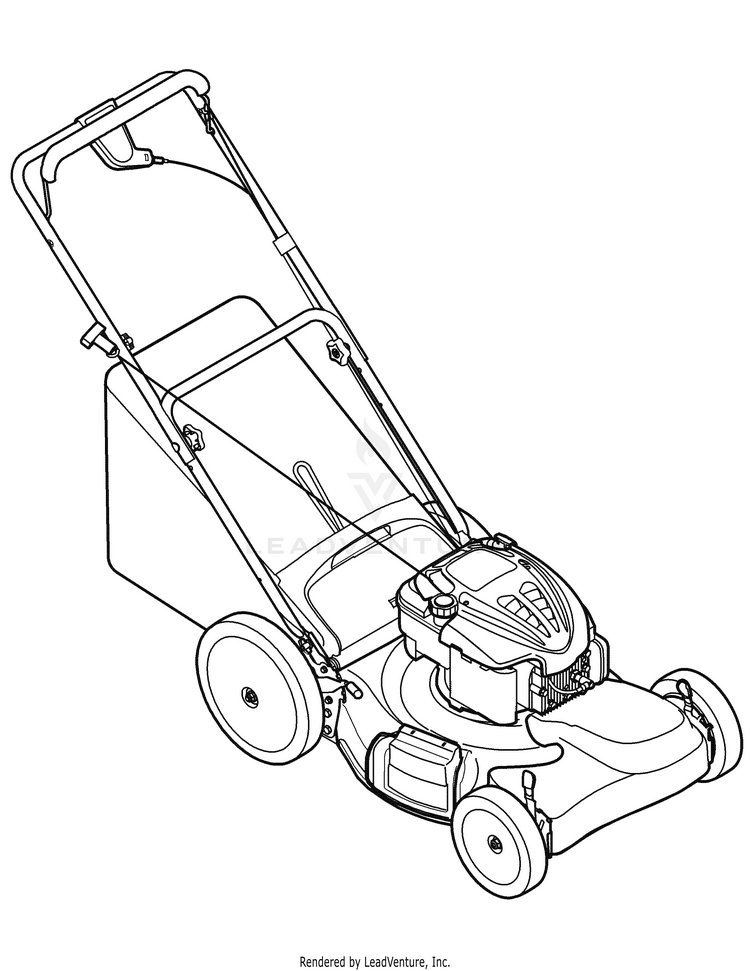

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM 802592S MTD-759-3338
...
xx
Pre-Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Cap MTD-BS-796577
...
xx
Drive Belt MTD-954-04082A
...
xx
Control Cable 40" (brake) MTD-946-1130
...
xx
Variable Speed Cable MTD-946-04206A
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1257
...
xx
Blade Adapter MTD-748-04082
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Wheel 8 x 2.125 (Front) MTD-734-04018C
...
xx
REAR WHEEL12X2.1 (Back) MTD-734-04019
...
xx
Ignition Key MTD-NA
...
xx
Grass Bag MTD-964-04007A
...
xx
Grass Bag Frame MTD-747-04080A
...
xx
Trailshield MTD-731-05642A
...
xx
Discharge Chute MTD-731-04177
...
xx
Hinged Mulch Plug Assembly MTD-987-02055

Drive & Wheel Assembly

...
...
1
Sleeve, Spacer, 1.8'' Lg. MTD-750-04405
...
2
SLEEVE SPACER .520IDX9.1LG MTD-750-04404
...
3
Self-Tapping Sems Screw MTD-710-0654A
...
4
21" DECK MTD-787-01278
...
5
TT Screw, 1/4-20 x 0.5 MTD-710-0599
...
6
SPRING WASHER BELL MTD-736-0270
...
7
Hinged Mulch Plug Assembly MTD-987-02055
...
8
PLATE-ADAPTER MTD-17032A
...
9
TORSION SPRING MTD-732-1014C
...
10
HINGE PIN MTD-747-0710A
...
11
Transmission Ass’y Com plete MTD-918-04377B
...
12
Height Adjustment Ass’y - LH MTD-987-02193A
...
12
Height Adjustment Assembly RH MTD-987-02194A
...
13
ADJUSTMENT PLATE (RH) MTD-787-01298A-0637
...
13
ADJUSTMENT PLATE (LH) MTD-787-01299A-0637
...
14
Pivot Plate Assembly MTD-987-02334
...
15
Front Lever - RH MTD-732-0706
...
15
Front Lever - LH MTD-732-0707
...
16
FRONT BAFFLE MTD-782P5002B
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
Wheel 8 x 2.125 MTD-734-04018C
...
19
REAR WHEEL12X2.1 MTD-734-04019
...
20
Screw, 1/4-20 x .390 MTD-710-04531
...
21
Gear 14T RH FWD RH MTD-717-1762
...
21
Gear 14T LH FWD LH MTD-717-1761
...
22
Dowel Pin MTD-915-0221
...
23
Wheel Dust Cap MTD-782-7551A
...
24
Snap Ring MTD-716-0102
...
25
Flat Washer MTD-736-0474
...
26
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
27
Wave Washer MTD-736-0447
...
28
Front Bearing Assembly MTD-987-02347
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
TT Screw w/Washer, 1/4-20 x .625 MTD-710-1652
...
31
Shoulder Screw, .500 Dia x .385 MTD-738-04266
...
32
Pivot Bar RH MTD-987-02335
...
32
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
33
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
34
Foam Grip MTD-720-0312
...
35
Rear Handle Bracket Assy. - LH MTD-987-02280A
...
35
Rear Handle Bracket Assy. - RH MTD-987-02279A

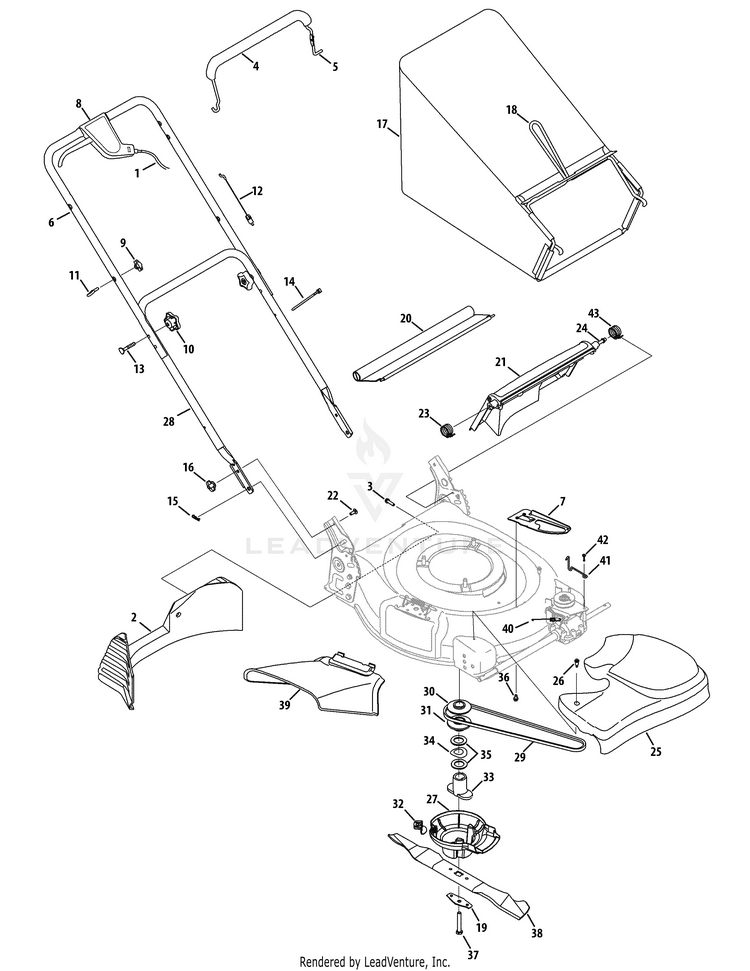

General Assembly

...
...
1
Variable Speed Cable MTD-946-04206A
...
2
REAR BAFFLE 21" MTD-731-04150C
...
3
Screw, 1/4-15 x 1.000 MTD-710-1241
...
4
Deluxe Bail Cover MTD-731-04204
...
5
Blade Control MTD-747-1161A
...
6
UPPER HANDLE MTD-749-04206-0637
...
7
CABLE BRACKET MTD-787-01258A
...
8
KIT MTD-753-06060A
...
9
Handle Knob MTD-720-0279
...
10
STAR KNOB 5/16-18 MTD-720-04072A
...
11
Eye Bolt MTD-710-1205
...
12
Control Cable 40" MTD-946-1130
...
13
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
14
7" CABLE TIE MTD-725-0157
...
15
Cotter Pin MTD-714-0104
...
16
WING NUT MTD-712-0397A
...
17
Grass Bag MTD-964-04007A
...
18
Grass Bag Frame MTD-747-04080A
...
19
BLADE BELL SUPPORT MTD-736-0524B-1
...
20
Trailshield MTD-731-05642A
...
21
Rear Discharge Door MTD-731-06847
...
22
Carriage Bolt, 1/4-20 MTD-710-0703
...
23
Torsion Spring - RH MTD-732-04090A
...
24
Pivot Rod MTD-747-04588
...
25
Transmission Cover (Black) MTD-931-05020A
...
26
Shoulder Screw, # 12-24 MTD-710-1650
...
27
Engine Baffle MTD-753-06116
...
28
Lower Handle MTD-749-0928A-0637
...
29
Drive Belt MTD-954-04082A
...
30
Pulley, Half MTD-956-04161
...
31
Pulley, Half MTD-956-04160
...
32
Baffle Bracket MTD-787-01593
...
33
Blade Adapter MTD-748-04082
...
34
Spacer Washer MTD-736-0447
...
35
Flat Washer MTD-736-0277
...
36
Screw, 1/4-14 x .625 MTD-710-0896
...
37
Hex Screw, 3/8-24 x 2.50 MTD-710-1257
...
38
21'' Mulching Blade MTD-942-0741A
...
39
Side Discharge Chute MTD-731-04177
...
40
EXTENSION SPRING MTD-732-04317
...
41
Belt Keeper Wire MTD-732-04294
...
42
Torx Screw MTD-710-04329
...
43
Torsion Spring - LH MTD-732-04089A

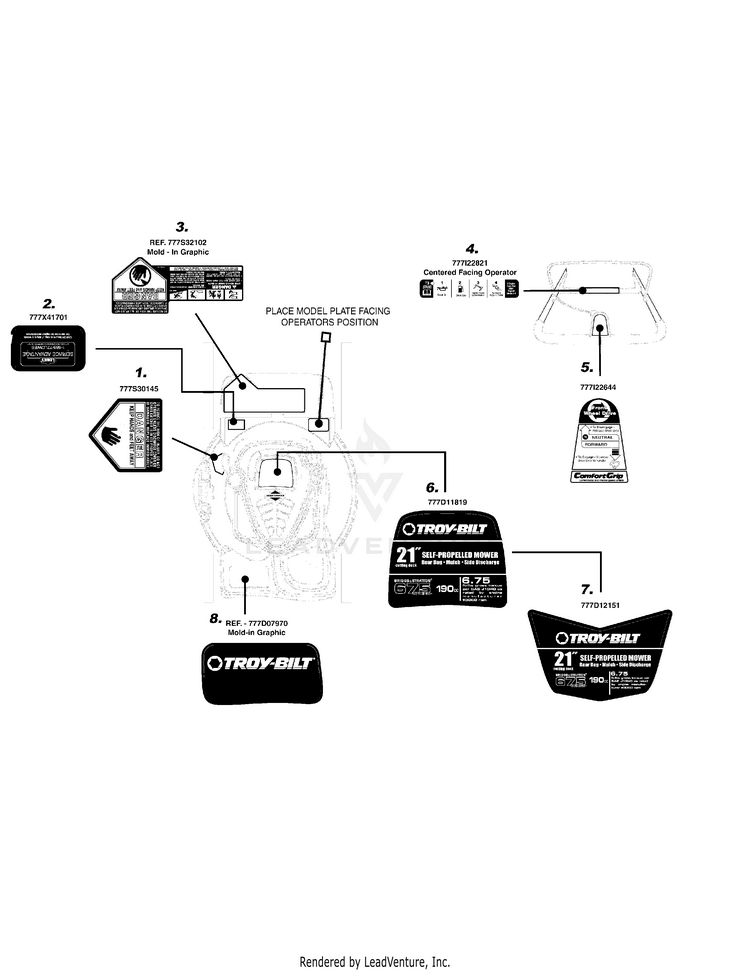

Label Map

...
...
1
Danger Label MTD-977S30145
...
2
LABEL Model M011 & N211 Only) MTD-777X41701
...
3
LABEL MTD-NA
...
4
LABEL-MOWER HANDLE B&S MTD-777I22821
...
5
LABEL-MOWER HANDLE MTD-777I22644
...
6
LABEL-MOWER SHROUD TROY 675 (Model 566M Only) MTD-777D11819
...
7
LABEL-MOWER SHROUD TROY (Model 566N Only) MTD-777D12151
...
8
LABEL - TROYBILT MTD-NA
