Troy-Bilt 12AI836N211 (2008) Self Propelled Mower

Model: 12AI836N211 (2008)

Save Part Not Listed?
product name

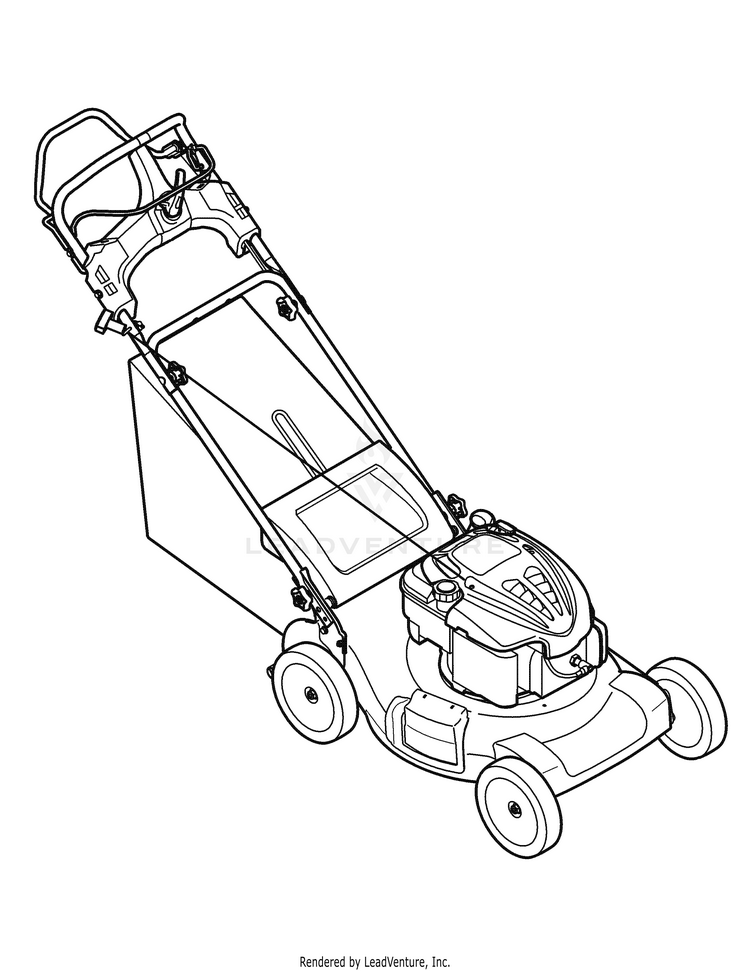

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM (802592S) MTD-759-3338
...
xx
Pre-Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
FUEL FILTER MTD-BS-298090S
...
xx
Fuel Cap MTD-BS-796577
...
xx
Drive Belt MTD-954-04176A
...
xx
Control Cable (brake) MTD-946-04465A
...
xx
Variable Speed Cable MTD-946-04439A
...
xx
Drive Cable MTD-946-04464
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1044
...
xx
BLADE BELL SUPPORT MTD-736-0524B-1
...
xx
Blade Adapter MTD-748-04096
...
xx
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) (Front) MTD-753-08175
...
xx
Fr. Wheel 8 Yellow (Back) MTD-753-08092
...
xx
Grass Bag MTD-964-04045
...
xx
GRASSBAG FRAME ASSEMBLY (POWDER BLACK) MTD-647-04051B-0637
...
xx
Trailshield MTD-731-05642A
...
xx
DOOR MTD-931-05017A
...
xx
Mulch Plug MTD-987-02055

Drive Assembly

...
...
1
Drive Belt MTD-954-04176A
...
2
HEIGHT CONTROL LEVER MTD-732-04338C
...
3
Foam Grip MTD-720-04096
...
4
SPUR GEAR 11T (LH) MTD-917-04540B
...
5
Shldr. Screw, 1/4-20 x 0.50 MTD-738-04278
...
6
Screw, #12-16 x .750 MTD-710-04373A
...
7
CROSS BRACKET MTD-749-04267B-0637
...
8
FRONT BRACKET ASSEMBLY MTD-687-02204B
...
9
Clip Spacer MTD-731-05470
...
10
Split Hex Flange Bearing MTD-741-04136B
...
11
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) MTD-753-08175
...
12
Flange Lock Nut, 3/8-16 MTD-712-04065
...
13
Fr. Wheel 8 Yellow MTD-753-08092
...
14
Screw, 1/4-20 x .39 MTD-710-04531
...
15
SPUR GEAR 11T (RH) MTD-917-04539B
...
16
RING BAFFLE MTD-731-06284
...
17
WHEEL DUST COVER MTD-731-06355
...
18
Transmission Bearing Support MTD-687-02415
...
19
Clip Spacer MTD-731-05872
...
20
Retaining Ring .875 MTD-716-0198
...
21
Rear Bracket Assembly MTD-687-02314A-0637
...
22
COMPRESSION SPRING 1.2365 x 1.33 MTD-732-04482
...
23
UPPER TRANSMISSION PULLEY MTD-756-04316A
...
24
Flat Washer, .442 x 1.38 x .060 MTD-936-0406
...
25
Lower Pulley MTD-756-04317
...
26
Handle Bracket Assembly LH MTD-687-02320
...
27
Dowel Pin MTD-915-0221
...
28
TRANSMISSION MTD-918-04826A
...
29
Handle Bracket Assembly RH MTD-687-02321
...
30
Bearing Support Spacer MTD-748-0390
...
31
Extension Spring MTD-732-04313
...
32
Blade Adapter MTD-748-04096
...
33
Screw, 3/8-24 x 1.50 MTD-710-1044
...
34
BLADE BELL SUPPORT MTD-736-0524B-1
...
35
Blade MTD-942-0741A
...
36
Washer, Wave, 1.5 x 1.0 x .029 MTD-736-0447
...
37
TT Screw, 1/4-20 x .500 MTD-710-0599
...
38
ENGINE LOWER BAFFLE MTD-731-06112A
...
39
LOWER PULLEY MTD-956P04046
...
40
HALF PULLEY 25 MM SHAFT MTD-756-04311A
...
41
Washer, Wave, .390 x .625 x .016 MTD-736-3012A
...
42
Screw, 1/4-15 x 1.00 MTD-710-1241

General Assembly

...
...
1
Drive Cable MTD-946-04464
...
2
Rubber Grommet MTD-735-04059
...
3
BAIL ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-987-02417A
...
4
Shift Spring MTD-732-04516
...
5
ERGO BAIL MTD-747-04917A
...
6
Control Cable MTD-946-04465A
...
7
Lower Handle MTD-749-04037
...
8
Cable Tie MTD-725-0157
...
9
DOOR TORSION SPRING (LH) MTD-732-04265
...
10
TT Screw, 1/4-20 x .500 MTD-710-0599
...
11
21" DECK HI WHEEL *CHOOSE COLOR WHEN ORDERING* MTD-787-01618
...
12
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
13
FRONT DECK BAFFLE MTD-987-01834
...
14
CONTROL PANEL COVER MTD-731-06304
...
15
CONTROL PANEL COVER MTD-731-06305
...
16
Screw, #10-16 x .500 MTD-710-0779A
...
17
Saddle Washer MTD-736-0451
...
18
Washer, Lock, 1/4 MTD-936-0329
...
19
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
20
Screw, 1/4-20 x 1.50 MTD-710-0606
...
21
Variable Speed Control Panel MTD-NA
...
22
PIVOT BAIL ROD (RH) MTD-747-04718A
...
22
PIVOT BAIL ROD (LH) MTD-747-04719A
...
23
Variable Speed Cable MTD-946-04439A
...
24
REAR BAFFLE MTD-731-06173
...
25
Screw, 5/16-18 x .625 MTD-710-3025
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
TRAILSHIELD MTD-731-05462A
...
28
Mulch Plug MTD-731-05157
...
29
DOOR MTD-931-05017A
...
30
Screw, 1/4-15 x 1.00 MTD-710-1241
...
31
Star Knob MTD-720-04072A
...
32
DOOR TORSION SPRING (RH) MTD-732-04264
...
33
Door Pivot Rod MTD-711-04374
...
34
GRASSBAG FRAME ASSEMBLY (POWDER BLACK) MTD-647-04051B-0637
...
35
Grass Catcher MTD-964-04045
...
36
Carriage Bolt, 5/16-18 x 2.00 MTD-710-1174
...
37
Wing Nut MTD-720-0279
...
38
Eye Bolt MTD-710-1205
...
39
UPPER HANDLE MTD-749-04436-0637
...
40
SPRING WASHER BELL MTD-736-0270
...
41
Torsion Spring MTD-732-1014C
...
42
PLATE-ADAPTER MTD-17032A
...
43
Hinge Pin MTD-747-0710A
...
44
Mulch Plug Assembly MTD-987-02055
...
45
Side Discharge Chute MTD-731-04177
...
46
Screw, #12-16 x .75 MTD-710-04373A
...
47
Rivet, Plastic MTD-728-0199
...
48
FOUR SPEED ACTUATOR MTD-731-06189
...
49
SPEED SELECT LEVER MTD-731-06193A
...
50
DOWEL PIN 3/16 x 1 MTD-715-04073
...
51
Washer, Flat, .25 x .630 x .0515 MTD-736-0463
...
52
Flat Washer .265 x .938 x .120 MTD-736-0176
...
53
Screw, 1/4-15 x .750 MTD-710-0895

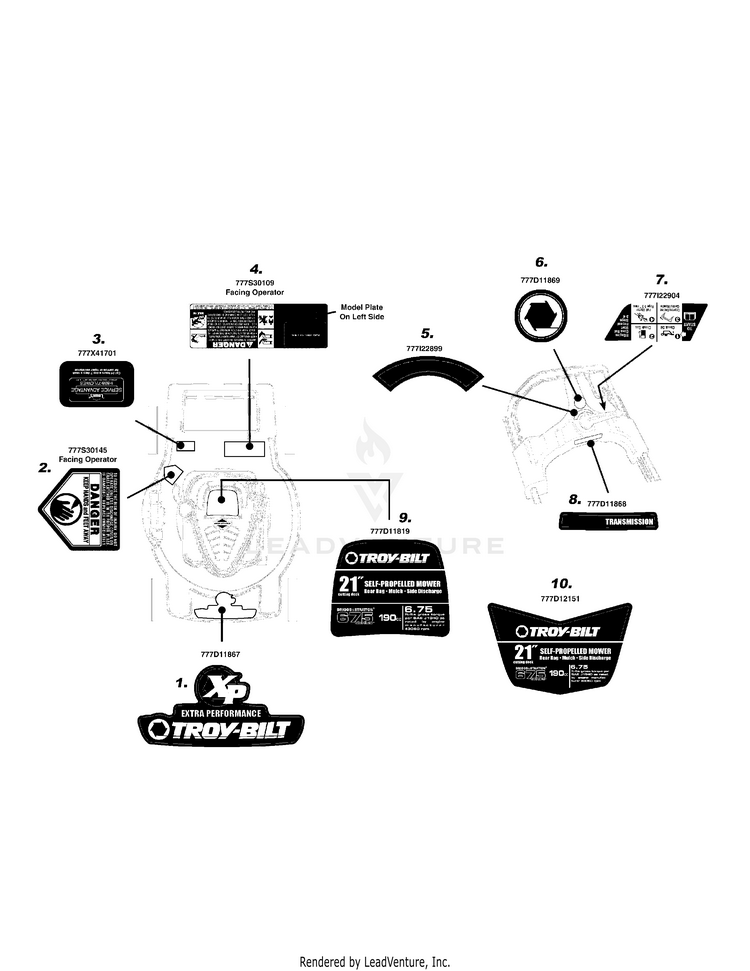

Label Map

...
...
1
LABEL-MOWER 800 XP TROY MTD-777D11867
...
2
Danger Label MTD-977S30145
...
3
LABEL MTD-777X41701
...
4
LABEL-MOWER DANGER MTD-777S30109
...
5
LABEL-MOWER XP HANDLE SELECT MTD-777I22899
...
6
LABEL-EMBOSSED TROYBILT MTD-777D11869
...
6
LABEL-EMBOSSED TROYBILT BRUSHED CROME LOGO Not shown MTD-777D13024
...
7
LABEL-MOWER HANDLE B & S MTD-777I22904
...
8
LABEL-MOWER XP HANDLE SELECT TROY MTD-777D11868
...
9
LABEL-MOWER SHROUD TROY 675 (836M Only) MTD-777D11819
...
10
LABEL-MOWER SHROUD TROY (836N Only) MTD-777D12151
