Troy-Bilt 12AE76M8066 TB WC33 XP (2017) Self Propelled Mower

Model: 12AE76M8066 TB WC33 XP (2017)

Back To Assemblies

Save Part Not Listed?
product name

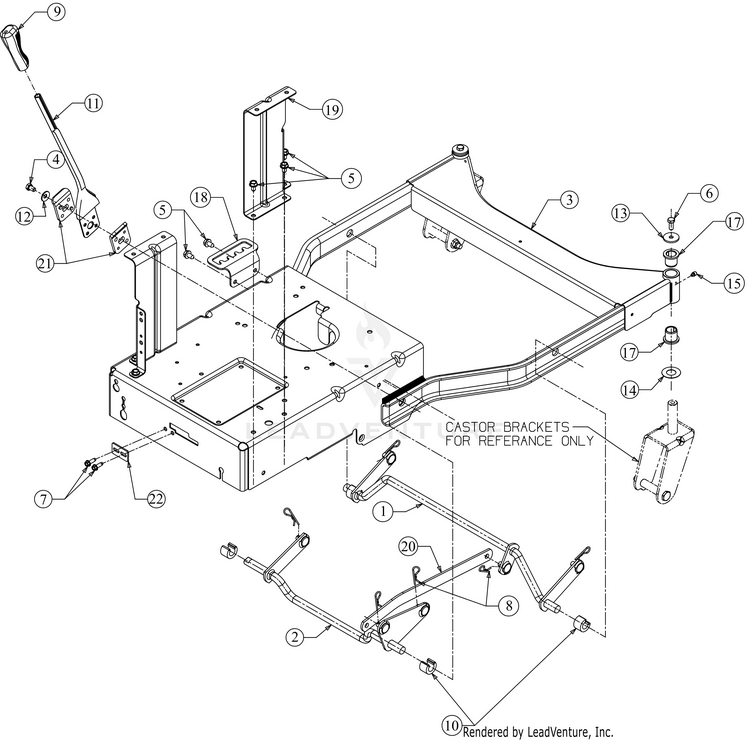

Frame

...
...
1
FRONT LIFT ASSEMBLY MTD-687-02265-0637
...
2
PIVOT LEVER KIT MTD-753-11476
...
3
FRAME ASSEMBLY (Choose Color When Ordering) MTD-687-02591B
...
3a
FRAME BRACKET (Choose Color When Ordering) MTD-787-01996
...
4
SCREW 5/16-18 x .50 MTD-710-04312
...
5
SCREW 5/16-18 x .625 MTD-710-0604A
...
6
SCREW 5/16-24 x .750 GR5 MTD-710-0627
...
7
SCREW 1/4-20 x .750 MTD-710-0642
...
8
Click Pin MTD-714-0145
...
9
GRIP-RED MTD-720-04189
...
10
SNAP SPACER MTD-731-05791
...
11
DECK HEIGHT LEVER MTD-732-04418C
...
12
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
13
WASHER-5/16 x 1.25X 1.27 MTD-736-0343
...
14
Washer, Flat, .760 ID x 1.5 OD MTD-736-0351
...
15
GREASE FITTING MTD-937-3000
...
17
FLANGE BEARING .760 ID MTD-741-0660A
...
18
HEIGHT ADJUSTMENT BRACKET (Choose Color When Ordering) MTD-787-01496
...
19
FUEL TANK BRACKET (Choose Color When Ordering) MTD-787-01507B
...
20
LIFT LINK MTD-787-01510-0637
...
21
PIVOT LEVER BRACKET (POWDER BLACK) MTD-787-06323-0637
...
21
PIVOT LEVER KIT MTD-753-11476
...
22
SHIFT PLATE MTD-787-02009
