Troy-Bilt 12596 Bumper Attachment

Model: 511947


product name

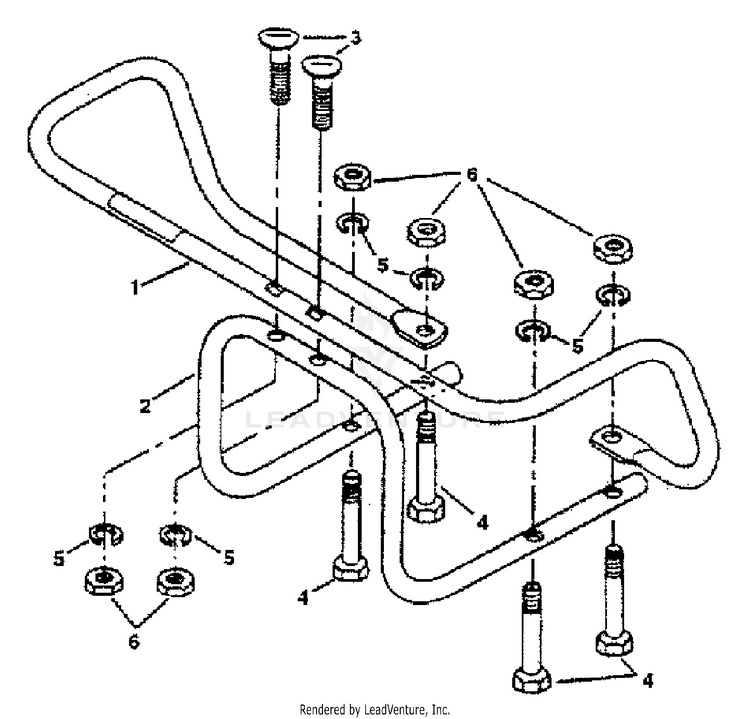

Bumper Guard Attachment 12596

...
...
1
BUMPER-TOP SECTION MTD-1916714001


...
3
SCREW 5/16-18 x 2.0 Also see Hardware Kit #1915811 MTD-710-1174

...
4
SCREW-HH Not available separately, order Hardware Kit #1915811 MTD-1111608

...
5
LOCK WASHER 5/16 Not available separately, order Hardware Kit #1915811 MTD-936-0119

...
6
HEX NUT 5/16-18 Not available separately, order Hardware Kit #1915811 MTD-712-3010

...
xx
HARDWARE KIT Includes two #1731025, four #1111608, six #1100242 and six #1186230 MTD-1915811

...
xx
Bumper Guard Attachment Kit For use with the model 12185, 7HP Econo-Horse only. It contains the same parts as Kit No. 12593, with the exception of the Top Bumper. MTD-12596
Schematic Image Zoomed
