Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

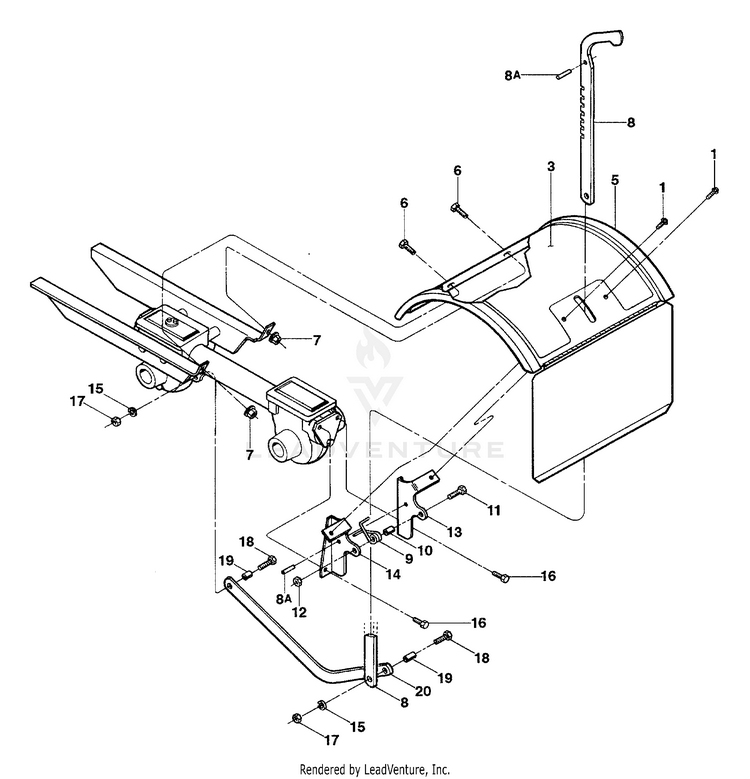

Tine Hood, Depth Regulator And Drag Bar

...
...
1
SCREW 1/4-20 X.500 MTD-710-0599
...
3
Decal, operating instructions MTD-777S30649
...
5
Tine Shield Assembly (Incl. tine flap and Ref. 3); For Models 12208/12209/12210 MTD-686-04077B-0638
...
xx
Tine Shield Assembly (Incl. tine flap and Ref. 3); For Model 12217 MTD-686-04076A-0638
...
6
SCREW-HH MTD-1100088
...
7
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
8
Depth Adjuster Bar MTD-786-04292A-0638
...
8A
Pin, Sprg, 1/4 Dia x 1.00 MTD-715-0108
...
9
Torsion Spring MTD-732-04320
...
10
Spacer MTD-GW-9534
...
11
Hex Hd. Screw, 1/4-20 x 1 MTD-1100069
...
12
Hex Lock Nut, 1/4-20 MTD-9811
...
13
HOOD BRACKET (RH) MTD-786-04291-0638
...
14
HOOD BRACKET (LH) MTD-786-04290-0638
...
15
Lock washer, 5/16 MTD-11000242
...
16
SCREW 5/16-18 x 1 GR5 MTD-710-04048
...
17
HEX NUT 5/16-18 MTD-712-3010
...
18
SCREW-HH MTD-1100808
...
19
BUSHING MTD-GW-55088
...
20
Depth Drag Bar MTD-786-04104-0638
