Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

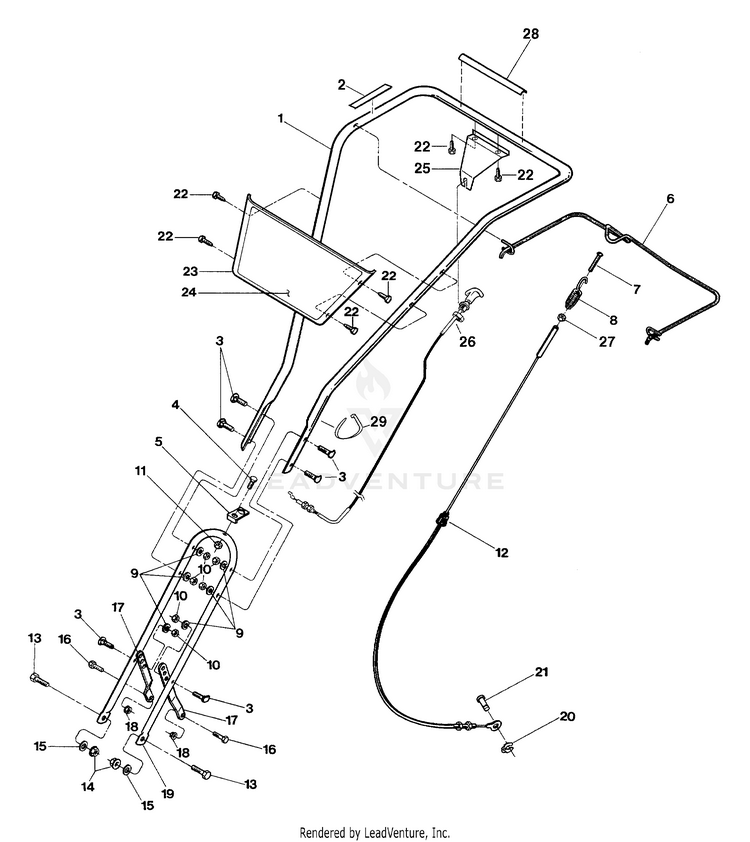

Handlebars, Clutch Cables And Handlebar Mounting Hardware

...
...
1
UPPER HANDLE (Incl. Ref. 2); For Models 12208/12217 MTD-749-04084-0638
...
xx
UPPER HANDLE (Incl. Refs. 2 & 28); For Models 12209/12210 MTD-749-04084-0638
...
2
LABEL-FORW MTD-1916928
...
3
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
4
HEX SCREW 1/4-20 x 1.25 MTD-710-0106
...
5
Bracket, Forward Clutch Cable MTD-GW-55044
...
6
FORWARD CLUTCH BAIL MTD-1916106001
...
7
SCREW #10-24 x 2 MTD-710-04163
...
8
Spring, Forward Clutch MTD-732-04185
...
9
LOCK WASHER 5/16 MTD-936-0119
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
Hex Lock Nut, 1/4-20 MTD-9811
...
12
ASSM-CONTROL CABLE MTD-GW-55048P
...
13
HEX SCREW 3/8-16 X .75 MTD-710-0216
...
14
Hex Lock Nut, 3/8-16 MTD-712-3000
...
15
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
16
Hex Hd. Screw, 5/16-18 x 3/4 MTD-1100044
...
17
SUPPORT-HANDLEBAR MTD-1916107001
...
18
Hex Lock Nut, 5/16-18 MTD-912-0158
...
19
SERVICE REPLACEMENT KIT (GW-55043) MTD-753-06459A
...
20
Klip Ring MTD-9386
...
21
Clevis Pin MTD-9856
...
22
SCREW 1/4-20 X.500 For Models 12209/12210 MTD-710-0599
...
xx
SCREW 1/4-20 X.500 For Models 12208/12217 MTD-710-0599
...
23
PANEL-5510 MTD-1901273010
...
24
DECAL-LOGO 12208 For Model 12208 MTD-1917563
...
xx
LABEL-MODE For Model 12209 MTD-1916818
...
xx
DECAL-LOGO 12210 For Model 12210 MTD-1917555
...
xx
DECAL, MODEL NAME/LOGO For Model 12217 MTD-55097
...
25
REV CABLE BRACKET For Models 12209/12210 MTD-786-04040-0637
...
26
REVERSE CONTROL CABLE For Models 12209/12210 MTD-946-04058
...
27
Hex Nut, #10-24 MTD-712-0121
...
28
LABEL-TILLER For Models 12209/12210 MTD-777I22077
...
29
7" CABLE TIE For Models 12209/12210 MTD-725-0157
