Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

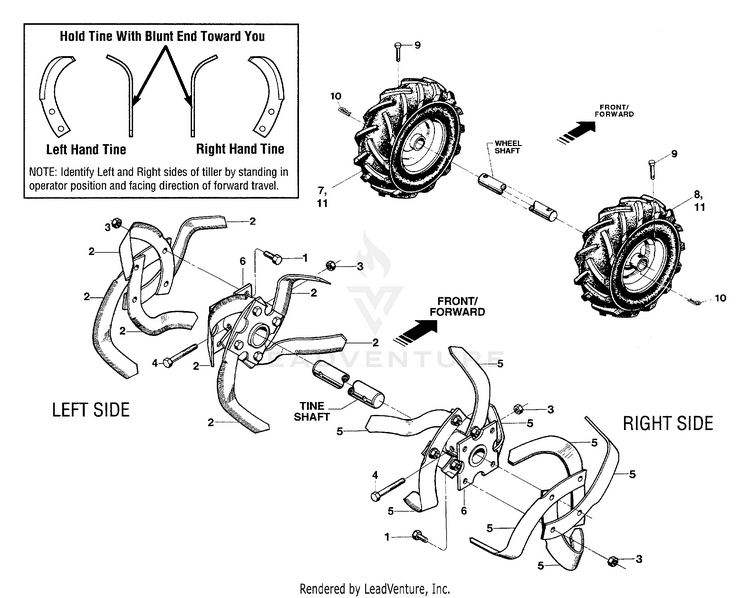

Bolo Tines And Wheels

...
...
1
Hex Hd. Screw, 3/8-16 x 1, Grade 5 MTD-9711
...
2
BOLO TINE 10" (POWDER BLACK) Single tine used on left side of tiller. (Incl. two each Refs. 1 & 3) MTD-742-04226-0637
...
3
Hex Lock Nut, 3/8-16 MTD-712-3000
...
4
Hex Hd. Screw, 3/8-16 x 1-3/4 MTD-9555
...
xx
TINES-BOLO SET OF (Incl. eight right hand tines, eight left hand tines and required hardware MTD-GW-1901
...
5
BOLO TINE 10" (POWDER BLACK) Single tine used on right side of tiller. (Incl. two each Refs. 1 & 3) MTD-742-04227-0637
...
6
TINE HOLDER (POWDER BLACK) For Models 12208 - SN122081100101-122081199999; 12209 - SN122091100101-122091199999; 12210 - SN122101100101-122101199999; 12208 - SN122081200101-122081299999; 12209 - SN122091200101-122091299999; 12210 - SN122101200101-122101299999 MTD-686-05008-0637
...
xx
Tine Holder Assembly For Model 12217 - SN122171100101-122171199999 MTD-686-04066
...
7
WHEEL:COMP For Models 12208 - SN122081100101-122081199999; 12209 - SN122091100101-122091199999 MTD-20918-01
...
xx
ASSM-TIRE&WHEEL LH GRAY (15-20 LBS AIR REQ'D) For Model 12210 - SN122101100101-122101199999 MTD-2706-01
...
xx
WHEEL ASSEMBLY 10 x 2.75 (LH) For Model 12217 - SN122171100101-122171199999 MTD-734-04162
...
8
WHEEL:COMP For Models 12208 - SN122081100101-122081199999; 12209 - SN122091100101-122091199999 MTD-20918-02
...
xx
ASSEMBLY TIRE For Model 12210 - SN122101100101-122101199999 MTD-2706-02
...
xx
WHEEL ASSEMBLY For Model 12217 - SN122171100101-122171199999 MTD-55095-02
...
9
Clevis Pin MTD-711-04126
...
10
PIN - hair cotter MTD-714-04048
...
11
WHEEL For Models 12208 - SN122081200101-122081299999; 12209 - SN122091200101-122091299999 MTD-1917486
...
xx
WHEEL For Model 12210 - SN122101200101-122101299999 MTD-1917487
