Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

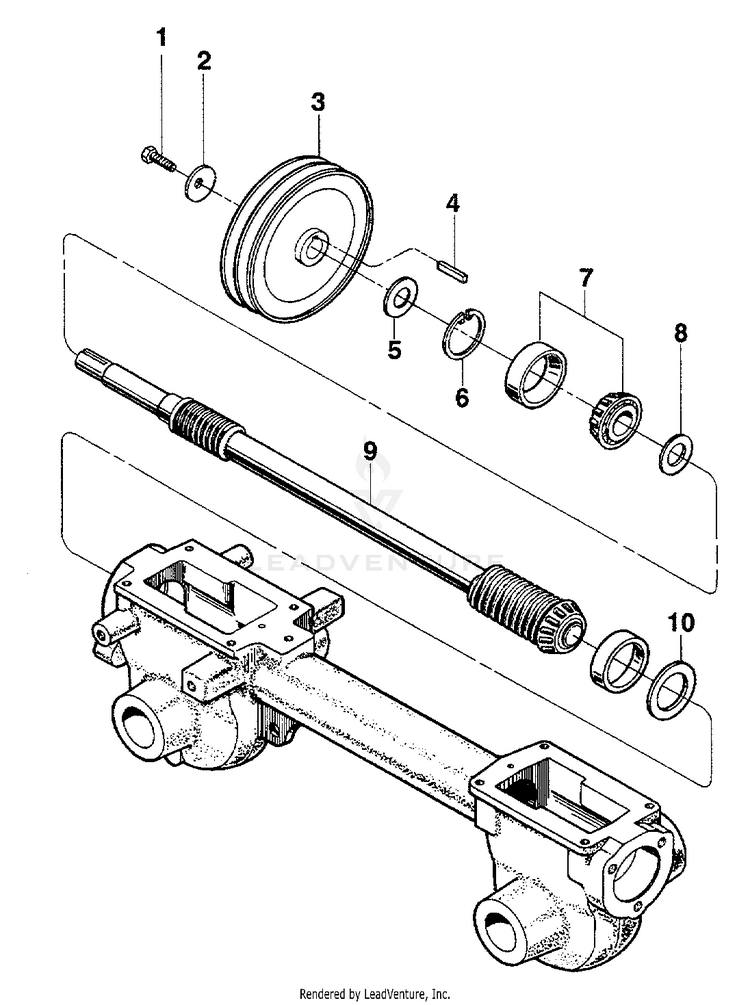

Drive Shaft Assembly

...
...
1
HEX SCREW 5/16-24 x .75 For Models 12208/12217 MTD-710-0157
...
xx
HEX SCREW For Models 12209/12210 MTD-1100005
...
2
Washer, 396 x 1140 x 095, B&S MTD-736-04193
...
3
TRANSMISSION PULLEY 12168 For Model 12208 MTD-1911321
...
xx
TRANSMISSION PULLEY ASSEMBLY For Models 12209/12210 MTD-656-04005A
...
xx
TRANSMISSION PULLEY For Model 12217 MTD-55031
...
4
Key, 3/16 sq. x 1 MTD-GW-9301
...
5
Support Washer MTD-GW-50027
...
6
Retaining Ring, Int MTD-716-04102
...
7
Bearing, Tapered Roller (with race) MTD-941-0107
...
8
Flat Washer, 1.25 x .75 x .06 MTD-736-04304
...
9
DRIVESHAFT ASSEMBLY MTD-1904281
...
10
Washer, Flat, 1.50 x 1.75 x .010 MTD-736-04308
...
xx
BLADE:46":SIDE:HOP 532-405380 MTD-742-05107-4046
...
xx
Washer, Flat, 1.50 x 1.75 x .005 MTD-736-04306
...
xx
Washer, Flat, 1.50 x 1.75 x .062 MTD-736-04305
...
xx
Shim Set (Incl. the following shims: two #1224-1, two 1224-2, one 1224-3, and one #1224-4) MTD-GW-1325C
