Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

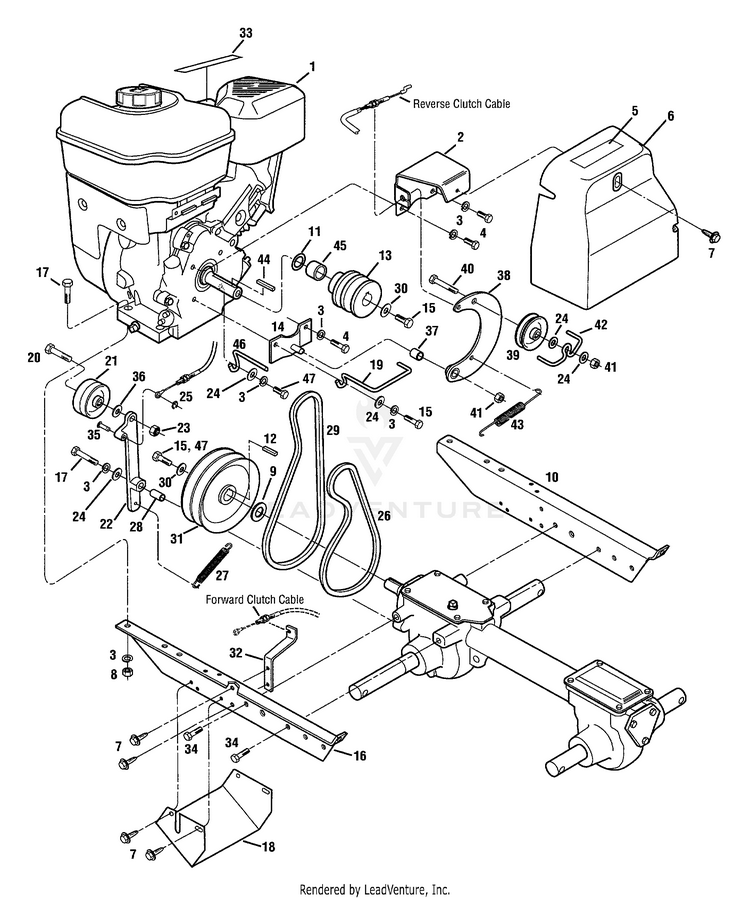

Engine, Engine Brackets And Belt Drive Systems

...
...
1
Engine, Recoil Start Contact your local authorized engine service dealer for engine parts and service. Refer to your engine nameplate for engine model/type number. MTD-NA
...
2
BELT COVER BRACKET MTD-786-04070-0637
...
3
LOCK WASHER 5/16 For Model 12208 MTD-936-0119
...
xx
Lock Washer, 5/16 For Models 12209/12210 MTD-NA
...
4
HEX SCREW For Model 12208 MTD-1111696
...
xx
Hex Hd. Screw, 5/16-24 x 1/2 For Models 12209/12210 MTD-NA
...
5
DECAL-WARNING BELT MTD-1904557
...
6
BELT COVER (Incl. Ref. 5) MTD-1917128
...
7
SCREW 1/4-20 X.500 MTD-710-0599
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
Support Washer MTD-GW-50027
...
10
BRACKET-ENGINE MTD-1916795001
...
11
SHIM - same as above, 1/32" thick MTD-736-04192
...
12
Key, 3/16 sq. x 1 MTD-GW-9301
...
13
ENGINE PULLEY MACH For Model 12208 MTD-1911322
...
xx
PULLEY:ENGINE .75 ID X 2.555 NLAUD For Models 12209/12210 MTD-956-04183
...
14
BRACKET, REVERSE IDLER For Models 12209/12210 MTD-1916559001
...
15
HEX SCREW MTD-1100005
...
16
BRACKET, ENGINE, LEFT MTD-1916794001
...
17
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
18
TRANSMISSION PULLEY GUARD MTD-786-04095-0637
...
19
BELT GUIDE For Models 12209/12210 MTD-1916726
...
20
Hex Hd. Screw, 3/8-16 x 1-1/2 MTD-9558
...
21
Forward Idler Pulley MTD-756-04170
...
22
FORWARD IDLER LEVER MTD-1916116001
...
23
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
24
FLAT WASHER MTD-736-0275
...
25
Up Ring MTD-9386
...
26
V Belt, 4L x 25375 LG MTD-954-04090
...
27
Extension Spring, 480 OD x 500 LG MTD-732-04085
...
28
BUSHING - IDLER LEVER MTD-55033
...
29
V Belt, 3L x 29125 LG For Models 12209/12210 MTD-954-04091
...
30
Washer, 396 x 1140 x 095, B&S MTD-736-04193
...
31
TRANSMISSION PULLEY 12168 For Model 12208 MTD-1911321
...
xx
TRANSMISSION PULLEY ASSEMBLY For Models 12209/12210 MTD-656-04005A
...
32
BRACKET, CABLE MOUNT MTD-1916117001
...
33
DECAL-STARTING STA MTD-1900766
...
34
Flange Screw, 5/16-18,.625, Gr5 MTD-710-04049
...
35
Clevis Pin MTD-9856
...
36
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
37
BUSHING For Models 12209/12210 MTD-1916536
...
38
REVERSE IDLER ARM For Models 12209/12210 MTD-1916578001
...
39
Reverse Idler Pulley For Models 12209/12210 MTD-756-04169
...
40
BOLT - HEX HD, 5/16-18 x 2 For Models 12209/12210 MTD-1111606
...
41
Hex Lock Nut, 5/16-18 For Models 12209/12210 MTD-912-0158
...
42
Wire Formed Belt Guide For Models 12209/12210 MTD-732-04081
...
43
SPRING-REV RETURN For Models 12209/12210 MTD-1916724
...
44
KEY-SQ 3/16X1.50 MTD-714-0133
...
45
SPACER For Model 12208 MTD-1916574
...
46
BELT GUIDE For Model 12208 MTD-1916706
...
47
HEX SCREW 5/16-24 x .75 For Model 12208 MTD-710-0157
