Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

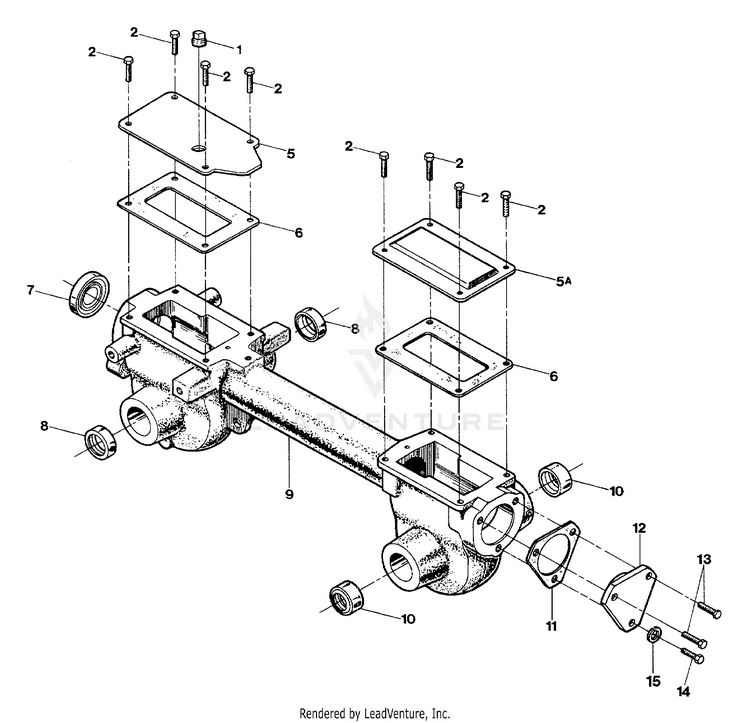

Transmission Housing, Covers, Seals, Gaskets And Plug

...
...
1
Pipe Plug MTD-737-04202
...
2
Flange Screw, 5/16-18,.625, Gr5 MTD-710-04049
...
5
Front Cover, Transmission MTD-1916641001
...
5A
COVER-TRANS REAR MTD-1916109001
...
6
Gear Housing Gasket MTD-921-04229
...
7
Oil Seal, .75 x 1.783 MTD-921-04030
...
8
Oil Seal, 1.0 x 1.499 MTD-921-04031
...
9
TRANSMISSION HOUSING MTD-919-04013
...
10
Seal,Oil 1.00 Shft X 1.500 Bore MTD-921-04036
...
11
BEARING CAP GASKET, .010" THICK MTD-55011-1
...
xx
BEARING CAP GASKET, .030" THICK MTD-55011-2
...
12
Bearing Cover MTD-918-04435
...
13
SCREW 5/16-18 x 1 GR5 MTD-710-04048
...
14
Hex Hd. Flange Screw, 5/16-18 x 3/4 MTD-1100044
...
15
LOCK WASHER 5/16 MTD-936-0119
