Troy-Bilt 12210 6.5 Hp Roto - Tiller Bronco

Model: 512029

Back To Assemblies

Save Part Not Listed?
product name

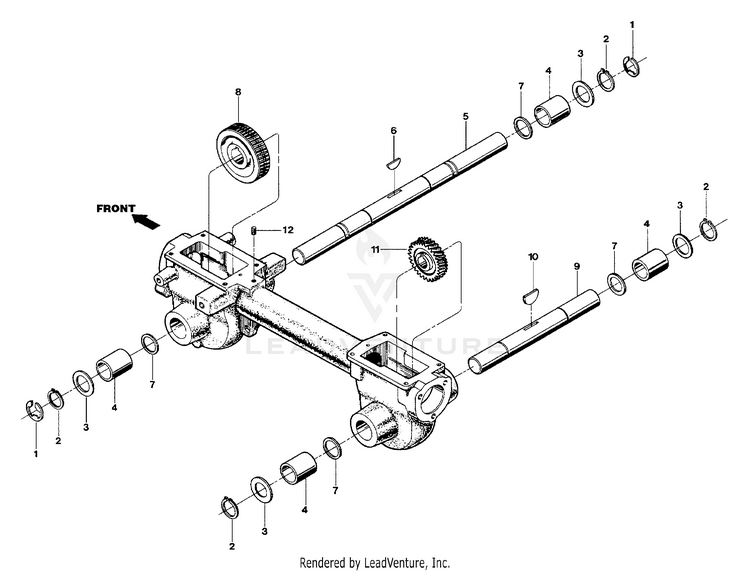

Wheel And Tiller Shaft Assemblies

...
...
1
RETAINING RING MTD-GW-9512
...
2
Retaining Ring MTD-716-04104
...
3
Washer, 1.375 x 1.015 x .062 MTD-736-04309
...
xx
Washer, 1.375 x 1.015 x .03 MTD-736-04260
...
xx
Washer, 1.375 x 1.015 x .015 MTD-736-04259
...
xx
Washer, 1.375 x 1.015 x .01 MTD-736-04258
...
xx
Flat Washer, 1.375 x 1.015 x .005 MTD-736-04257
...
4
Bushing, 1.25 x 1 x .005 x 1.5 MTD-941-04300
...
5
KIT-SERVICE WHEEL SHAFT 711-04092 For Models 12208/12209/12210 MTD-753-05578
...
xx
KIT-SERVICE WHEEL SHAFT 711-04088 For Model 12217 MTD-753-05576
...
6
Key, .25 x 1.062 MTD-714-04059
...
7
Flat Washer, 1/234 x 1.015 x .062 MTD-736-04310
...
8
RH Gear Worm, 61T MTD-917-04380
...
9
TILLER TINE SHAFT MTD-911-04078
...
10
Key-Woodruff, 1/4 x 1-1/4 MTD-GW-1104
...
11
Worm Gear, 30T, RH MTD-917-04383
...
12
UNKNOWN MTD-NA
